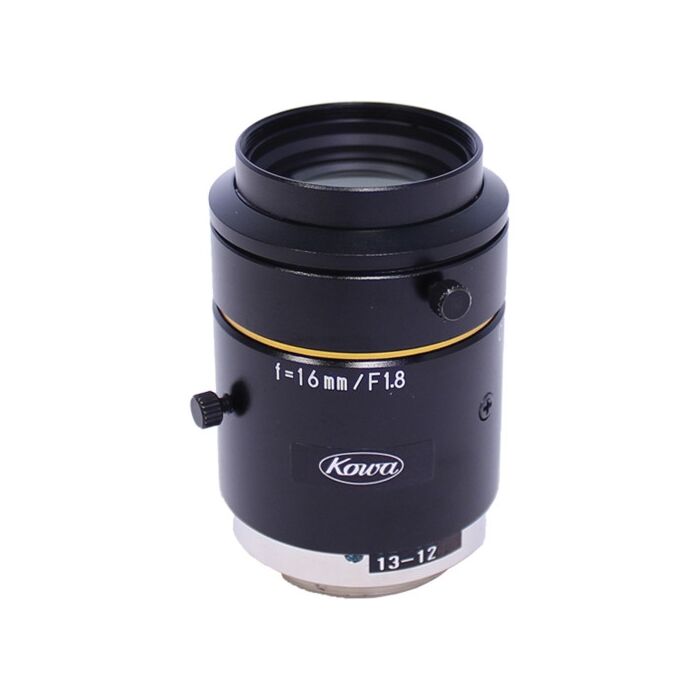

  • Kowa LM16JC3M2 Image # 1

Kowa LM16JC3M2 2/3" Format 16mm Megapixel Lens

Quick Overview

2/3", 16mm, Megapixel Lens.
Overview

Features:

  • Kowa's wide-band multi-coating effectively decreases glare and refraction and produces a high transmission from the visible to NIR wavelength range.
  • Kowa's floating mechanism system virtually eliminates optical aberrations from close distance to infinity
  • Low distortion
  • Excellent corner brightness
  • Applicable on 1/1.2" as well
  • Specifications
    Focal Length (mm) 16 mm
    Image Size (mm) 8.8x6.6 (Φ11)
    Iris Range F 1.4 - 16
    Focusing range (m) 0.2 - ∞
    Iris Manual
    Focus  Manual
    Shooting range at MOD (mm) 112.8 x 84.4
    Angle of View (Degrees) 2/3": 30.0 x 22.7
    1/1.8": 24.7 x 18.6
    1/2": 21.8 x 16.4
    TV Distortion (%) -0.05
    Back Focus in Air (mm) 13.1
    Mount C-Mount
    Filter Thread (mm) M27xP0.5
    Size (mm) Φ33.5 x 36.5
    Weight 85
    Temperature Range -10°C - +50°C
