  • Kowa LM12XC Image # 1

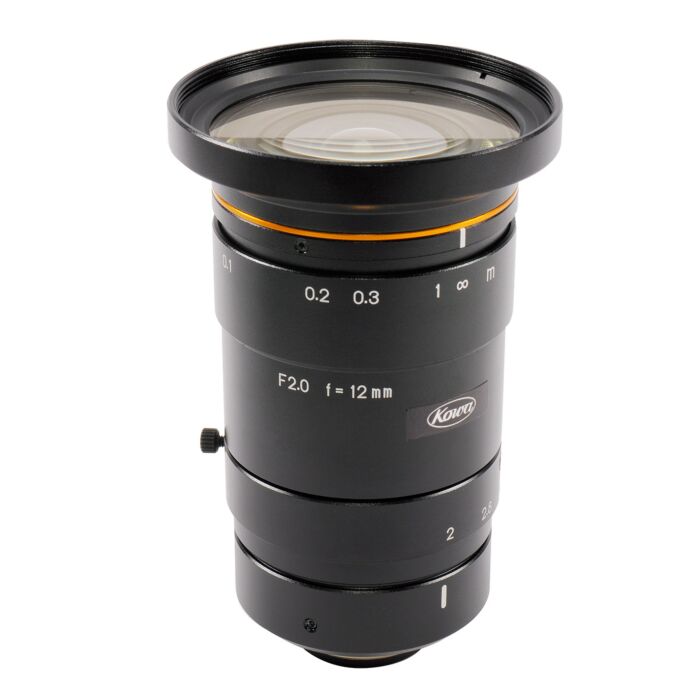

Kowa LM12XC 4/3" Format 12mm Megapixel Lens

Quick Overview

4/3" Format, 12mm, Megapixel Lens.
Overview

The 4/3" megapixel XC lens series provides a large image format of Φ23mm(C-mount). These high precision aspherical lenses greatly reduce distortion and produces a high definition picture. XC lenses maintain megapixel resolution throughout the entire image even if the iris is fully open. In addition, Kowa's wide-band multi-coating effectively reduces glare and refraction.

Features:

  • Floating Mechanism Design
  • XD Extra Low Dispersion
  • Low Distortion
  • Large Image of Φ23mm (C-mount)
  • Consistent Megapixel Resolution
  • Specifications
    Focal Length (mm) 12mm
    Image Size (mm)

    18.4×13.8 (Φ23)

    Iris Range F2.0~F22
    Focusing Range (m)
    .1~∞
    Control
    Iris: Manual
    Focus: Manual
    Shooting Range at M.O.D. (mm)
    181.5(H)×135.5(V)
    Angle of View (Degrees)
    4/3": 74.9×59.6
    1": 55.9×43.1
    2/3": 39.8×30.2
    Resolution (Center, Corner)
    160lp/mm, 80lp/mm
    TV Distortion (%)
    0.59
    Back Focus in Air (mm)
    13.0
    Mount
    C-Mount
    Filter Thread (mm)
    M55×P0.75
    Size (mm)
    Φ57×85
    Weight (g) 270
    Temperature Range −10°C~+50°C
