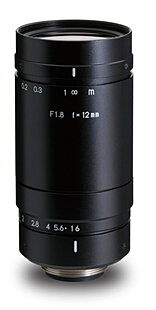

  • Kowa LM12SC Image # 1

Kowa LM12SC 1" Format 12mm Megapixel Lens

Quick Overview

1" Format, 12mm, Megapixel Lens.
Overview

Kowa's brand new 1" C-mount lenses are perfect for those in between the HC Series and XC Series producing high resolution images at 6MP plus. The SC Series feature aspherical XD, or extra low dispersion glass, in a metal body to deliver the most accurate images.

Features:

  • Floating Mechanism Design
  • XD Extra Low Dispersion
  • Low Distortion
  • High Resolution
  • Clear Resolution at Center and Corner
  • High Performance and Compact
  • Metal Body with Locking Screws
  • Aspherical Lens
  • Metal Housing
  • Fixed Focal Lens
  • Specifications
    Focal Length (mm) 12mm
    Image Size (mm)

    12.8×9.6 (Φ16)

    Iris Range F1.8~F16
    Focusing Range (m)
    .1~∞
    Control
    Iris: Manual
    Focus: Manual
    Shooting Range at M.O.D. (mm)
    125.5(H)×93.5(V)
    Angle of View (Degrees)
    1": 55.9×43.1
    2/3": 39.8×30.2
    1/1.8": 32.9×24.9
    Resolution (Center, Corner)
    160lp/mm, 120lp/mm
    TV Distortion (%)
    -0.55
    Back Focus in Air (mm)
    13.0
    Mount
    C-Mount
    Filter Thread (mm)
    M40.5×P0.5
    Size (mm)
    Φ43×84
    Weight (g) 255
    Temperature Range −10°C~+50°C
