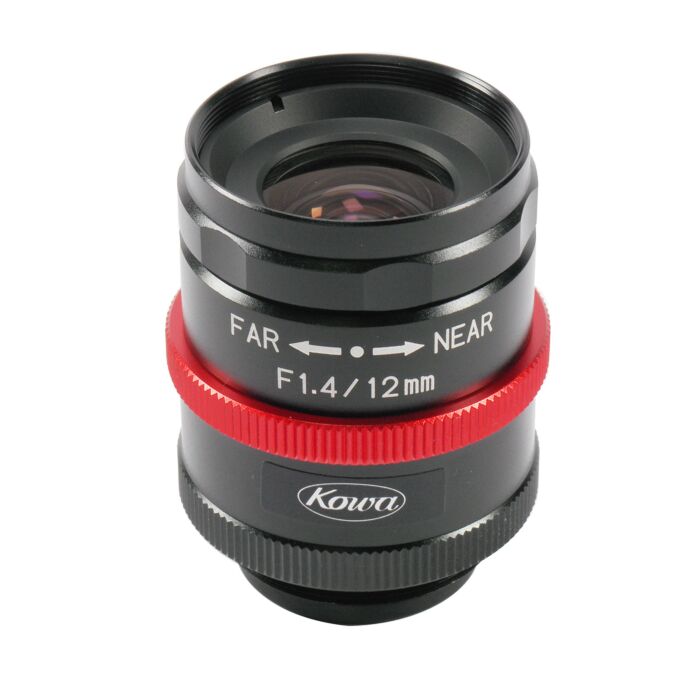

  • Kowa LM12JCM-V Image 1

Kowa LM12JCM-V 2/3" 12mm Anti-Vibration Megapixel Lens

Quick Overview

2/3", 12mm, F1.4/F4/F8/F16, C-Mount, MP, Anti-Vibration
Overview

Kowa's new JCM-V series is made for use in high vibration and high shock environments.  With a design based on Kowa's standard 2/3" JCM lenses, this new ruggedized megapixel lens series is ideal for applications that require increased durability and high optical performance.

Features:

  • For megapixel applications requiring a sensor size of 2/3" (Φ11mm) or smaller
  • Unique mechanical design to guard against strong vibration & shock
  • Two way reversible nut is utilized to tightly lock the focus adjustment ring in place
  • All internal glass elements are glued to the inside housing to improve durability
  • Ability to choose from four interchangeable iris plates. This provides the flexibility of having an adjustable F-stop while maintaining the advantage of a fixed iris with no moving parts
  • Specifications
    Focal Length f=12mm
    F-Number F=1 : 1.4, 4, 8, 16
    Picture Size 6.6x8.8mm
    Angle Of View Ver. Angle - 29.1°
    Hor. Angle - 38.3°
    Dia. Angle - 46.8°
    Distortion -0.07%
    Working Distance Optical Magnification 500mm - 0.025x
    400mm - 0.031x
    300mm - 0.041x
    200mm - 0.061x
    150mm - 0.080x
    Minimum Focus Distance 0.15m
    Flange Back 17.526 mm in air
    Back Focus 11.7 mm in air
    Filter Screw Size M27x0.5
    Front/Rear Effective Dia. Front Φ15.8mm / Rear Φ14.1mm
    Mount C-Mount
    Exit Pupil -225.0mm
    Temperature Range -10°C ~ +50°C
    Storage Temperature Range -20°C ~ +60°C
    Resolution Center/Corner Center 120lp/mm / Corner 100lp/mm
    Weight 75g
