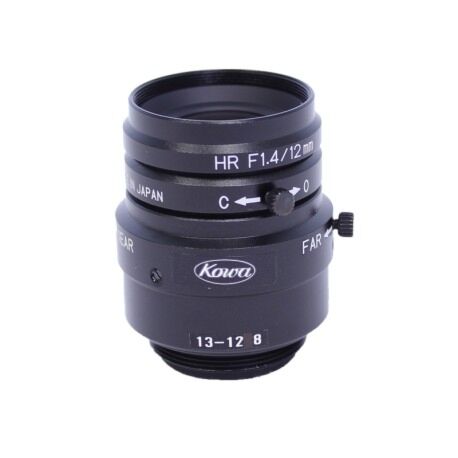

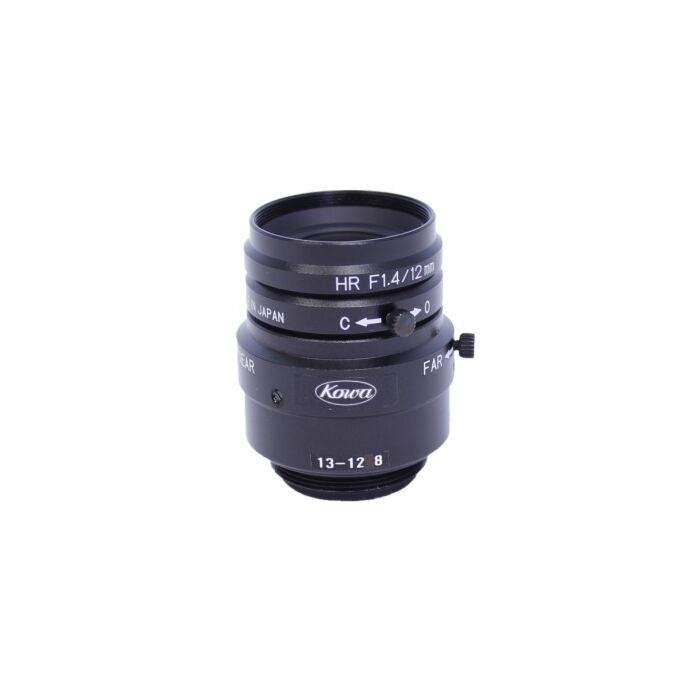

Kowa LM12JCM 2/3" 12mm Megapixel Lens

Quick Overview

2/3", 12mm, Megapixel Lens.
Overview

This series of megapixel lenses offers super high resolution and utilizes the floating mechanism system. The new wide angle 5mm megapixel lens will pave the way for new possibilities in machine vision systems.

Features:

  • High Resolution - Creates crisp, clear images even at long distances
  • Ideal for Megapixel Cameras - Assists megapixel cameras in producing large, high resolution images
  • Excellent Corner Brightness - No fading along edges of the image
  • Low Distortion - Kowa's design solves distortion issues to create an accurate reproduction of the environment

  • Applications:

  • Machine Vision
  • Inspection
  • Factory Automation
  • Specifications
    Focal Length (mm) 12
    Lens Type Fixed
    Image Size (mm) 2/3" (Φ11)
    Iris Range (F-stop) F1.4 ~ F16
    Focusing Range (m) 0.15 ~ ∞
    Iris Control Manual
    Focus Control Manual
    Shooting Range at M.O.D. (mm) 110(H) x 82.5(V)
    Angle of View 2/3" (°) 38.3 x 26.2
    Angle of View 1/2" (°) 28.3 x 21.4
    Angle of View 1/3" (°) 21.4 x 16.1
    Resolution (Center, Corner) 120lp/mm, 100lp/mm
    TV Distortion (%) -0.07
    Back Focus in Air (mm) 11.7
    Mount C-Mount
    Filter Thread Size (mm) M27 x P0.5
    Minimum Focus Distance (m) 0.15
    Flange Back in Air (mm) 17.526
    Front/Rear Effective DIA (mm) Φ15.8, Φ14.1
    Exit Pupil (mm) -215
    Size (mm) Φ34 x 37
    Weight (g) 75
    Temperature Range (°C) -10 ~ +50
