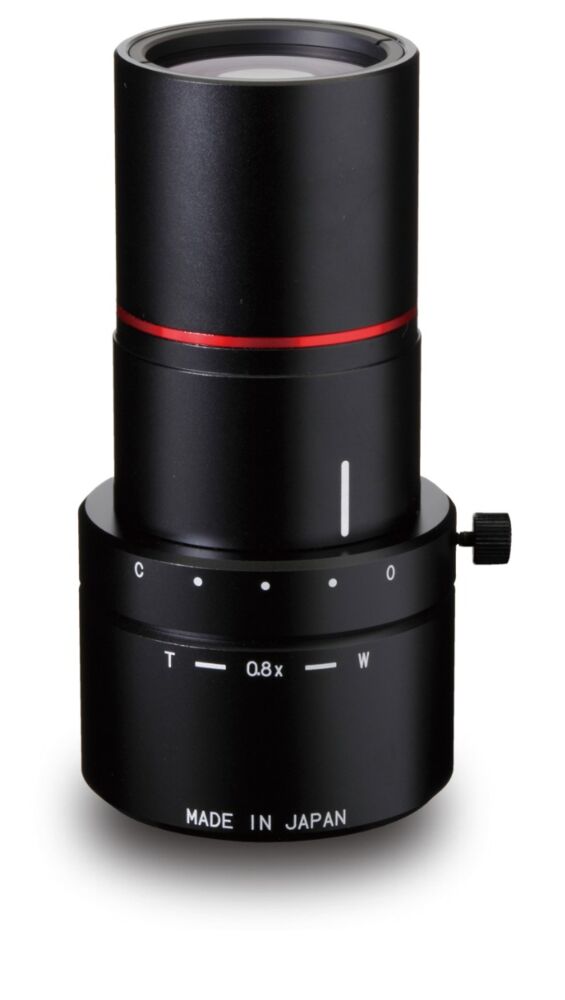

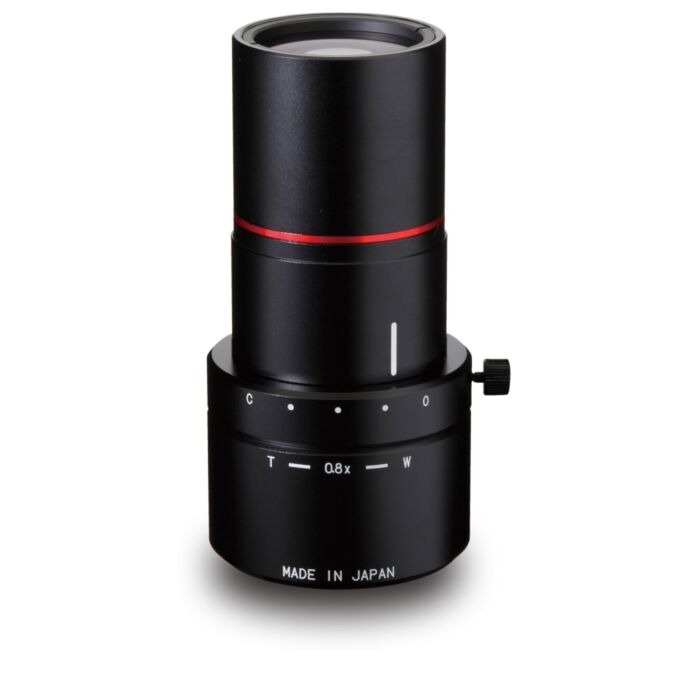

Kowa LM1123TC 2/3" 0.69-0.88x Telecentric Macro Zoom Lens

2/3", 0.69-0.88x, C-Mount, 5 Megapixel Plus, Telecentric Macro Zoom
SKU
LM1123TC

In a telecentric optical system, there is no change in magnification when focusing, and magnification is constant over working distances. Thus movement of an object does not change magnification. Therefore, it is suitable for measuring objects with high accuracy.

Features:

  • Produces high contrast and resolution in both the center and corners
  • Virtually no TV distortion of entire image area
  • Telecentric lens with variable magnification
  • Able to adjust the magnification to match with the pixel size of the camera
  • Lenses are designed with an optical magnification that is ideal for over 5 megapixels
  • Distortion free lenses of less than 0.02%. TV distortion is limited to 0.25% on the entire image area even when used with a 5 megapixel camera
  • Produces high contrast and resolution in both the center and corners
  • Virtually no TV distortion of entire image area
  • Magnification 0.8x 0.88x 0.69x
    Objective N.A. 0.097 0.130 0.080
    Element 8 GROUPS 11 ELEMENTS
    Image Size 6.6x8.8mm 6.6x8.8mm 6.6x8.8mm
    Shooting Range VERTICAL: 8.2mm
    HORIZONTAL: 11.0mm
    DIAMETER: 13.7mm
    VERTICAL: 7.5mm
    HORIZONTAL: 10.0mm
    DIAMETER: 12.5mm
    VERTICAL: 9.6mm
    HORIZONTAL: 12.7mm
    DIAMETER: 15.9mm
    Distortion (TV) -0.009% 0.005% -0.001%
    Working Distance 111.0mm 111.0mm 111.0mm
    Flange Back 17.526mm in air
    Front/Rear Effective Dia. FRONT: ⌀30.0mm  REAR:⌀14.0mm
    Mount C-Mount
    Exit Pupil -166.5mm -381.4mm -75.6mm
    Temperature Range -10 - +50°C
    Storage Temperature Range -20 - +60°C
    Telecentricity 99%
    Weight 290g
