  • Kowa LM1120TC Image # 1

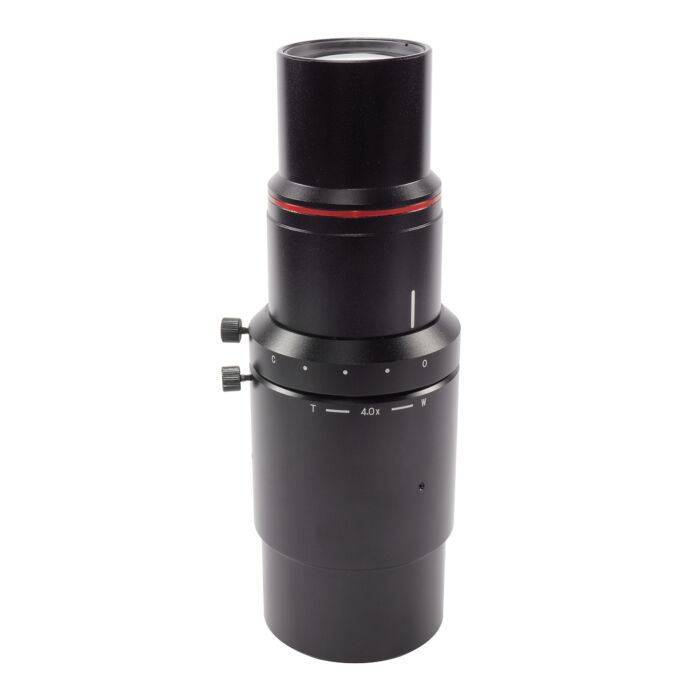

Kowa LM1120TC 2/3" 3.45~4.4× Telecentric Macro Zoom Lens

Quick Overview

4/3", 3.45~4.4×, C-Mount, 5 Megapixel Plus, Telecentric Macro Zoom.
Overview

Features:

  • Telecentric lens with variable magnification
  • Able to adjust the magnification to match with the pixel size of the camera
  • Lenses are designed with an optical magnification that is ideal for over 5 megapixels
  • Distortion free lenses of less than 0.02%. TV distortion is limited to 0.25% on the entire image area even when used with a 5 megapixel camera
  • Specifications
    Magnification 3.45~4.4×
    Image Size
    8.8×6.6(Φ11)
    Shooting Magnification 3.45x / 4.0x / 4.4x
    Objective N.A. 0.2
    W.D (mm) 65.9
    Shooting Range (mm) 2/3": 1.9x2.6 / 1.7x2.2 / 1.5x2.0
    1/1.8": 1.6x2.1 / 1.4x1.8 / 1.2x1.6
    1/2": 1.4x1.9 / 1.2x1.6 / 1.1x1.5
    TV Distortion (%) 0.015 / 0.003 / -0.002
    Back Focus in Air (mm) 17.1 / 24.5 / 30
    Mount C-Mount
    Resolution 120lp/mm
    Size Φ57×180.0
    Weight (g) 645
    Temperature Range −10°C~+50°C
    Storage Temperature Range -20°C~+60°C
