InVid Tech PAR-P3BIR36 (PARP3BIR36) (2304 x 1296) 3 Megapixel Fixed Mini Bullet

3 Megapixel IP Plug & Play Outdoor Mini Bullet WDR Camera, 65’ IR Range, CVBS Output, PoE/DC12V
SKU
InVid Tech PAR-P3BIR36

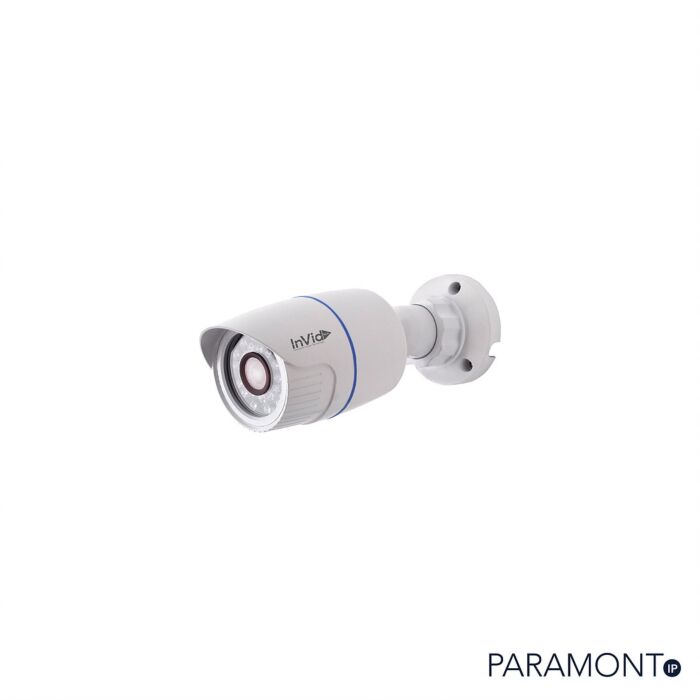

The InVid Tech PAR-P3BIR36 (PARP3BIR36) is a 3 Megapixel IP Plug & Play Outdoor Mini Bullet camera.


Features:

  • 3 Megapixel (2304 x 1296) Resolution
  • H.265/H.264/MJPEG Compression
  • True Day/Night
  • True WDR 120dB
  • IR Range up to 65’
  • CVBS Video Output
  • Audio Input
  • IP66 Weather Resistant
  • 12VDC/PoE
  • Free iOS & Android Apps for Smart Phones & Tablets
  • Free Central Management Software (CMS) to manage multiple units & sites from a single platform
  • Free MAC client software available, through the Paramont NVR, to manage your system from your Apple computer
  •

    Applications:

  • Security and Video surveillance
  • Remote monitoring
  • Ideal for Commercial and Industrial settings
  • Risk Management
  • Identity Management
  • Government
  • ATM Surveillance
  • Warehouse surveillance
  • Image Sensor 1/3" CMOS
    Imamge Size 2304 x 1296
    Electronic Shutter 1/25s ~ 1/100000s
    Auto Iris Fixed Iris
    Min. Illumination 0.05 Lux @ F1.2, AGC On; 0 Lux with IR
    Lens 3.6mm @ F1.6, Angle of View: 72° (Other Lens Options Available)
    Lens Mount M12
    True Day & Night ICR
    Wide Dynamic Range 120dB
    BLC Yes
    HLC Yes
    Defogging Yes
    Video Compression H.265/H.264/MJPEG
    H.265 Compression Standard Main Profile @ Level 4.1 High Tier
    Resolution 3 MP (2304 x 1296), 3 MP (2048 x 1536),  1080p (1920x1080), 720p (1280x720), D1, CIF, 480x240
    Main Stream 60Hz/30 FPS: 3 MP, 1080p, 720p | 50Hz/25 FPS: 3MP, 1080p, 720p
    Bit Rate 64 Kbps ~ 8 Mbps
    Encode Mode VBR/CBR
    Quality Five Levels Under VBR; Freely adjustable under CBR
    Image Settings ROI, Saturation, Brightness, Chroma, Contrast, Wide Dynamic, Sharpen, NR: Adjustable through client software or web browser
    Audio Compression G.711A/U
    Network RJ45
    AGC Yes
    Audio MIC-in x 1
    Video Output
    CVBS Video Output (BNC x 1)
    Remote Monitoring IE Browsing, CMS Remote Control
    Online Connection Supports simultaneous monitoring for up to 10-users; Support multi-stream real-time transmission
    Network Protocol TCP/IP, UDP, DHCP, UPnP, NTP, RTSP, PPPoE, DDNS, SMTP, FTP
    Interface Protocol ONVIF, GB-T/28181-2011
    Storage Network Remote Storage
    Smart Alarm Motion Alarm
    PoE  Yes
    IR Distance 65 Feet
    Environmental IP66 Weather Resistant
    Power Supply DC12V/PoE
    Power Consumption <2.5W
    IR Consumption <6.5W
    Operating Environment -4° ~ 122°F (-20° ~ 50°C), 10-90% Humidity
    Dimensions  Ø 2.51 x 7.2 Inches (64 x 183mm)
    Weight .84 lbs (383g)
