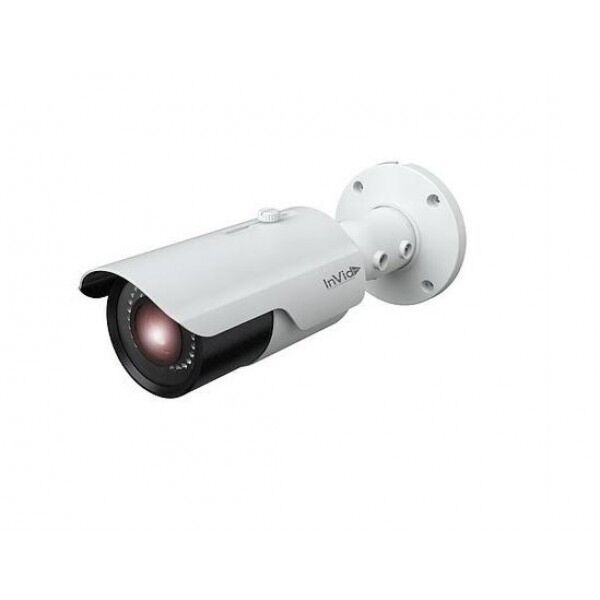

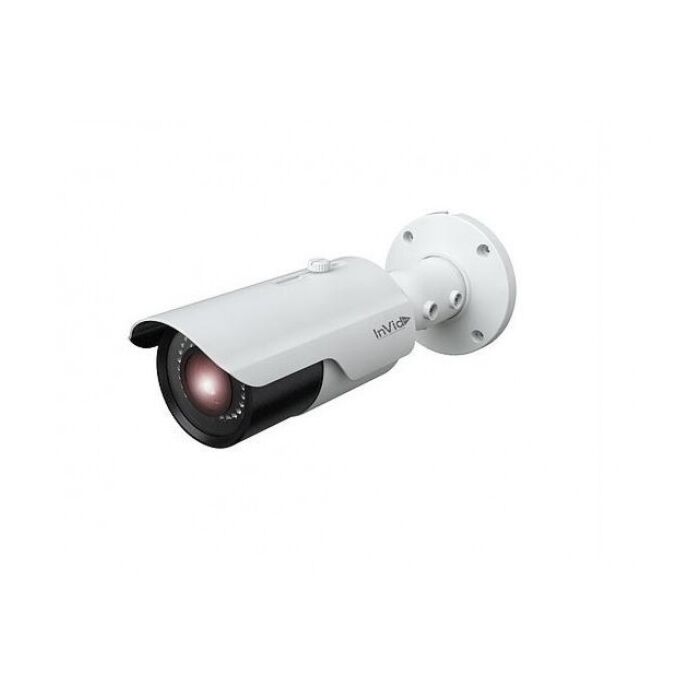

InVid Tech PAR-P3BIR3312 (PARP3BIR3312) (2304 x 1296) 3 Megapixel Varifocal Bullet Camera
PAR-P3BIR3312: 3 Megapixel Varifocal Bullet Camera
SKU
InVid Tech PAR-P3BIR3312
The PAR-P3BIR3312 is a Plug & Play Outdoor Bullet camera with 164' IR Range, PoE/DC12V, CVBS Output, and a SD Card Slot. The 3 megapixel (2304x1296) resolution bullet camera comes equipped with H.265/H.264/MJPEG compression, True WDR, CVBS Video Output, IP 66 Weather resistance, and free IOS & Android applications.
Features:
Applications:
| Image Sensor | 1/3" CMOS |
| Image Size | 2304 x 1296 |
| Electronic Shutter | 1/25s ~ 1/100000s |
| Auto Iris | Fixed Iris |
| Min. Illumination | 0.05 Lux @ F1.2, AGC On; 0 Lux with IR |
| Lens | 3.3~12mm @ F1.4 Angle of View: 80° ~38° |
| Lens Mount | Ø14 |
| True Day/Night | ICR |
| Wide Dynamic Range | 120dB |
| BLC | Yes |
| HLC | Yes |
| Defogging | Yes |
| Digital NR | 2D/3D DNR |
| Angle Adjustement | Any Angle |
| Video Compression | H.265/H.264/MJPEG |
| H.265 Compression Standard | Main Profile @ Level 4.1 High Tier |
| Resolution | 3 MP (2304 x 1296), 3 MP (2048 x 1536), 1080p (1920x1080), 720p (1280x720), D1, CIF, 480x240 |
| Main Stream | 60Hz/30 FPS: 3 MP, 1080p, 720p | 50Hz/25 FPS: 3MP, 1080p, 720p |
| Bit Rate | 64 Kbps ~ 8 Mbps |
| Encode Mode | VBR/CBR |
| Quality | Five Levels Under VBR; Freely adjustable under CBR |
| Image Settings | ROI, Saturation, Brightness, Chroma, Contrast, Wide Dynamic, Sharpen, NR: Adjustable through client software or web browser |
| Audio Compression | G.711A/U |
| ROI | Each ROI to be configured separately |
| Network | RJ45 |
| Audio | MIC-In x1, MIC-Out x1 |
| Video Output | CVBS Video Output (BNC x 1) |
| Storage Card | Support TF Card, Up to 128GB |
| RS485 | Yes |
| Alarm Input | 1 Channel |
| Alarm Output | 1 Channel |
| Remote Monitoring | IE Browsing, CMS Remote Control |
| Online Connection | Supports simultaneous monitoring for up to 10-users; Support multi-stream real-time transmission |
| Network Protocol | TCP/IP, UDP, DHCP, UPnP, NTP, RTSP, PPPoE, DDNS, SMTP, FTP |
| Interface Protocol | ONVIF, GB-T/28181-2011 |
| Storage | TF Card Local Storage, Network Remote Storage |
| Smart Alarm | Motion Alarm, Sensor Alarm |
| POE | Yes |
| IR Distance | 164 Feet |
| Environmental | IP66 Weather Resistant |
| Power Supply | DC12V/PoE |
| Power Consumption | <2.5W |
| IR Consumption | <6.5W |
| Operating Environment | -4° ~ 122°F (-20° ~ 50°C), 10-90% Humidity |
| Dimensions | Ø 4.29 x 11.18 Inches (109x284mm) |
| Weight | 2.45 lbs (1115g) |
