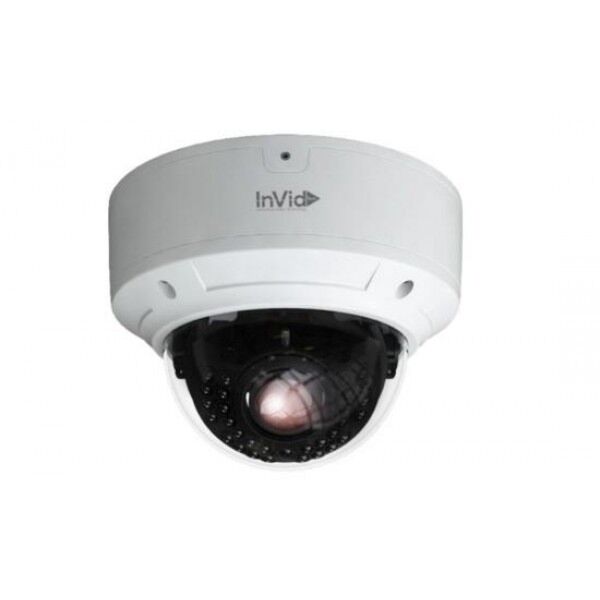

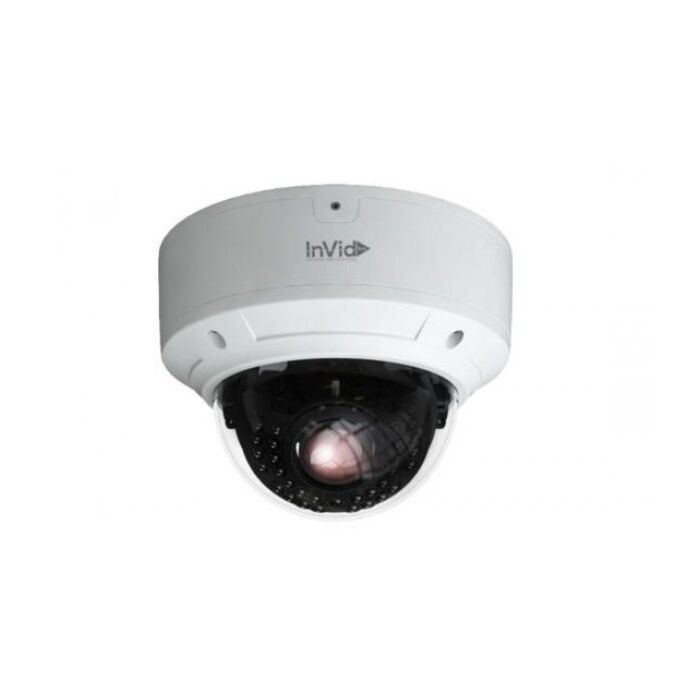

InVid Tech | PAR-P3DRIR3312 | Varifocal Dome Camera Image #1

InVid Tech PAR-P3DRIR3312 (PARP3DRIR3312) (2304 x 1296) 3 Megapixel Varifocal Dome Camera

InVid Tech | PAR-P3BIR36 | Image #1

InVid Tech PAR-P3BIR36 (PARP3BIR36) (2304 x 1296) 3 Megapixel Fixed Mini Bullet

InVid Tech PAR-C2DRIR2812 (PARC2DRIR2812) (1920 x 1080) 2 Megapixel/1080p TVI Outdoor Dome Camera

2 Megapixel/1080p TVI Rugged Dome 65' IR Range, TVI & AHD/CVBS Output, 12VDC
SKU
InVid Tech PAR-C2DRIR2812

The InVid Tech PAR-C2DRIR2812 is a 2 Megapixel/1080p TVI Rugged Dome Camera that includes 65' IR Range, TVI & AHD/CVBS Output,  and 12VDC. The C2DRIR2812 is used in several rugged applications because of its 1P66 Weather Resistant Enclosure and the IK10 rating, that protects against 20 joules impact. Set-up the C2DRIR2812 dome camera just about anywhere and let its durability do the hard work.


Features:


  • 2 Megapixel 1080p Resolution
  • TVI & AHD/Analog Outputs
  • Varifocal 2.8-12mm Lens
  • True Day/Night
  • Digital Wide Dynamic Range
  • 98’ IR Range
  • Function
  • IP66 Weather Resistant
  • IK10 Vandal Resistant
  • 12VDC Operation

  • Applications:



  • Security and Video surveillance
  • Remote monitoring
  • Ideal for Commercial and Industrial settings
  • Risk Management
  • Identity Management
  • Government
  • ATM Surveillance
  • Warehouse surveillance
  • Image Sensor 1/3" CMOS
    Resolution 1920 x 1080
    Image System NTSC/PAL
    Auto Iris Fixed Iris
    Min. Illumination 0 Lux (IR On)
    Lens 2.8-12mm
    Lens Mount D14
    IR Distance 98'
    Environmental   IP66 Weather Resistant & IK10 Vandal Proof
    Video Output TVI & AHD / CVBS Selectable
    Image Size 1080p (1920 x 1080
    Frame Rate 30 FPS (60Hz), 25 FPS (50Hz)
    Angle Adjustement 3 Axis
    Screen Display 2 Languages Supported (English & Chinese)
    Function Control OSD/UTC
    Day & Night Yes (ICR)
    BLC & HLC Yes
    WDR Digital WDR
    Digital NR Yes
    Defect Correction Live Defective Pixel Correction
    S/N Ratio >52dB (AGC Off)
    Electronic Shutter 1/60s ~ 1/100000s (NTSC), 1/50s ~ 1/100000s (PAL
    AGC Yes
    White Balance ATW, AWC-SET, Manual
    Advanced Image Adjustable Sharpness, Saturation, Brightness
    Power Supply DC12V (+ 10%)
    Working Environment -4° ~ 122° F (-20° ~ 50° C) 10%~90% Humidity
    Dimensions Ø 5.9 x 4.48 (Ø 150 x 114mm)
