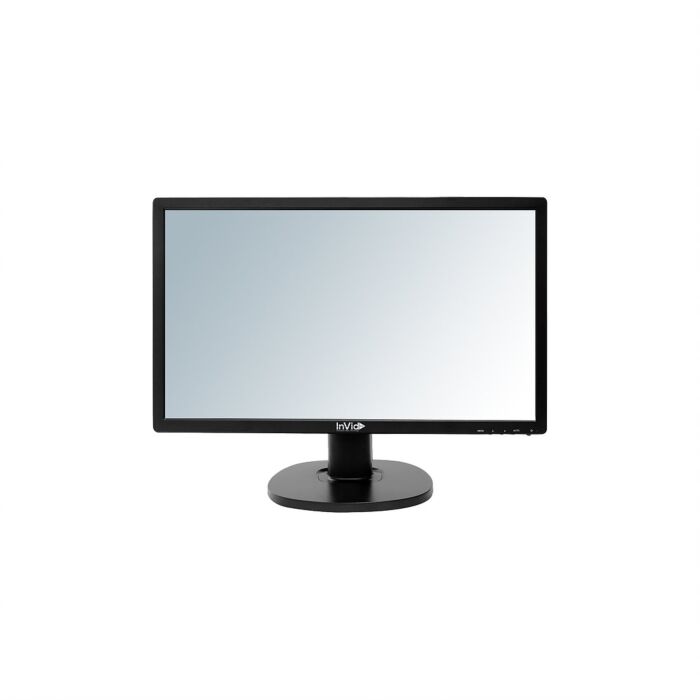

InVid Tech IMHD-24 (IMHD24) (1920x1080) 24" HD LED Monitor, HDMI, VGA, BNC
The InVid Tech is a 24” Full HD 1920x1080 LED Monitor that includes HDMI, VGA & Looping BNC inputs.
SKU
InVid Tech IMHD-24
The InVid Tech IMHD-24 is a 24" security and surveillance monitor. The IMHD-24 includes customizable video settings, 16.7 million display colors, and NTSC / PAL video system.
Features:
Applications:
| Screen Size |
27" Diagonal |
|
Resolution |
1920 x 1080 @60Hz |
|
Brightness |
250cd/m2 |
|
Contrast Ratio |
1000:1 |
|
Aspect Ratio |
16:9 |
|
Viewing Angle (H/V) |
170° / 160° |
|
Pixel Pitch |
0.2715 x 0.2715mm |
|
Display Colors |
16.7 Million |
|
Response Time |
<5ms |
|
Video System |
NTSC/PAL |
|
Scanning Frequency |
(H) 31~80 KHz/ (V) 56 ~ 75 Hz |
|
HDMI-In |
1 |
|
VGA-In |
1 |
|
BNC-In/Out |
1/1 |
|
OSD Language |
English, Spanish, French, German, Italian, Portugese, Netherlands |
| Dimensions (W x H x D) |
22” x 15.4” x 8.6” (561 x 399 x 218mm) |
| Net Weight | 9.9 lbs (4 KG) |
| Tilt Stand / Tilt Range | Fr: 5 / Rear: 15 |
| Cabinet Materials | Plastic |
| Color | Black |
| VESA Mount |
100mm x 100mm (M4 x 10mm Screw) |
| MTBF (Approx.) | 30,000 Hours |
| Power Consumption | <20W |
| Power Source | 100~240V AC |
| Operating Temperature | 32°~104° F / 0° ~ 40° C |
