  • InVid Tech IMHD-22 Image 1

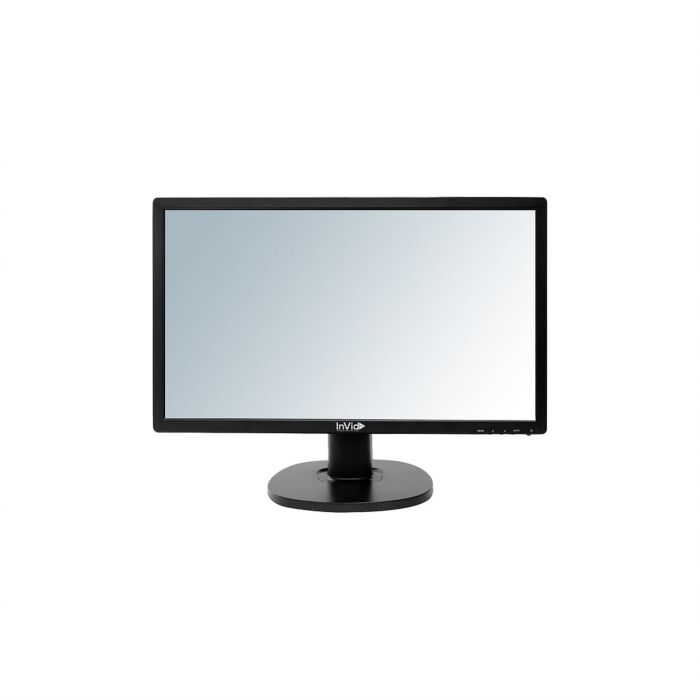

InVid Tech IMHD-22 (1920x1080) 21.5” HD LED Monitor, HDMI, VGA, BNC

Quick Overview

InVid Tech IMHD-22 21.5” Full HD LED Monitor. HDMI, VGA & Looping BNC inputs
Overview

The InVid Tech IMHD-22 is a 21.5” Full HD LED Monitor suitable for every Video Surveillance and Security applications.

Features:

  • Suitable for every Video Surveillance and Security application: displays HDMI digital plus VGA and BNC analog inputs (with looping BNC analog output)
  • Superlative image quality with 16.7 million color capability
  • HD 1920 x 1080
  • 3D Comb Filter/De-interlace
  • Customizable video settings in flexible On Screen Display (OSD) Menu with 7 language options
  • Auto-on when VGA or HDMI DVR/NVR video is detected
  • Bright LED illuminated panel with 170° H viewing angle
  • LED panel conserves energy and extends service life
  • Included desk stand is easily removable to accommodate most 100mm VESA mounts

  • Applications:

  • Security and Video surveillance
  • Law Enforcement
  • Microscopy
  • Remote monitoring
  • Ideal for Commercial and Industrial settings
  • Risk Management
  • Identity Management
  • Government
  • ATM Surveillance
  • Warehouse surveillance
  • Specifications
    Screen Size 21.5” Diagonal
    Resolution 1920 x 1080 @60Hz
    Brightness 250cd/m2
    Contrast Ratio 1000:1
    Aspect Ratio 16:9
    Viewing Angle (H/V) 170° / 160°
    Pixel Pitch 0.248mm x 0.248mm
    Display Colors 16.7 Million
    Response Time <5ms
    Video System NTSC / PAL
    Scanning Frequency (H) 31~80 KHz/ (V) 56 ~ 75 Hz
    HDMI-In 1
    VGA-In 1
    BNC-In/Out 1/1
    OSD Language

    English, Spanish, French, German, Italian, Portugese, Netherlands

    Dimensions (W x H x D)

    20.1” x 15.4” x 8.0” (511 x 392 x 203mm)

    Net Weight 8lbs (3.9KG)
    Tilt Stand / Tilt Range Fr: 5 / Rear: 15
    Cabinet Materials Plastic
    Color Black
    VESA Mount 100mm x 100mm (M4 x 10mm Screw)
    MTBF (Approx) 30,000 Hours
    Power Consumption <20W
    Power Source 100~240VAC
    Operating Temperature 32° ~104° F / 0° ~ 40° C
    Approvals FCC
    Included Accessories Remote, VGA Cable
