  • InVid Tech IMHD-1943 Image 1

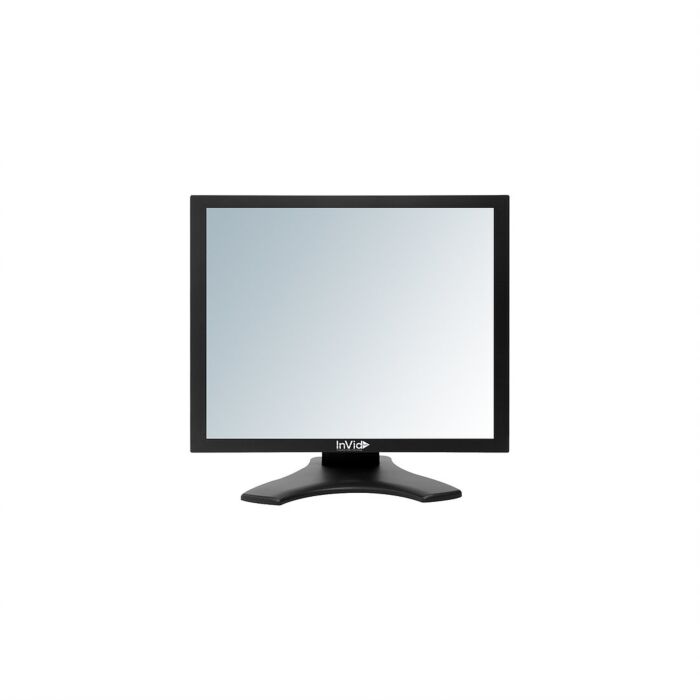

InVid Tech IMHD-1943 (1280x1024)19” LED Monitor, HDMI, VGA, BNC

Quick Overview

InVid Tech IMHD-1943: 19" Monitor 4:3 Ratio HD 1280x1024 LED 4:3 Monitor. HDMI, VGA & Looping BNC Inputs
Overview

The InVid Tech IMHD-1943 is a 19” HD 1280x1024 LED 4:3 Monitor. equipped with HDMI, VGA, & Looping BNC Inputs.



Features:


  • Suitable for every Video Surveillance and Security application: displays HDMI digital plus VGA and BNC analog inputs (with looping BNC analog output)
  • Superlative image quality with 16.7 million color capability
  • HD 1280 x 1024 resolution
  • 3D Comb Filter/De-interlace
  • Customizable video settings in flexible On Screen Display (OSD) Menu with 7 language options
  • Auto-on when VGA or HDMI DVR/NVR video is detected
  • Bright LED illuminated panel with 170° H viewing angle
  • LED panel conserves energy and extends service life
  • Included desk stand is easily removable to accommodate most 100mm VESA mounts

  • Applications:

  • Law Enforcement
  • Remote Monitoring
  • Security
  • Surveillance
  • Risk Management
  • Indetification Management
  • Government
  • Specifications
    Screen Size 19”
    Resolution 1280 x 1024 @ 60Hz
    Brightness 250cd/m2
    Contrast Ratio 1000:1
    Aspect Ratio 5:4
    Viewing Angle (H/V) 170° / 160°
    Pixel Pitch 0.294mm x 0.294mm
    Display Colors 16.7 Million
    Response Time <5ms
    Video System NTSC / PAL
    Scanning Frequency (H) 31~80 KHz/ (V) 56 ~ 75 Hz
    HDMI-In 1
    VGA-In 1
    BNC-In/Out 1/1
    OSD Language

    English, Spanish, French, German, Italian,

    Portugese, Netherlands

    Dimensions (W x H x D) 16.61” x 15.28” x 7.68” (422 x 388 x 195mm)
    Net Weight 10.58lbs (4.8KG)
    Tilt Stand / Tilt Range Fr: 5 / Rear: 15
    Cabinet Materials Plastic
    Color  Black
    VESA Mount 100mm x 100mm (M4 x 10mm Screw)
    MTBF (Approx) 30,000 Hours
    Power Consumption <20W
    Power Source 100~240VAC
    Operating Temperature 32° ~104° F / 0° ~ 40° C
    Approvals FCC
    Included Accessories VGA Cable
