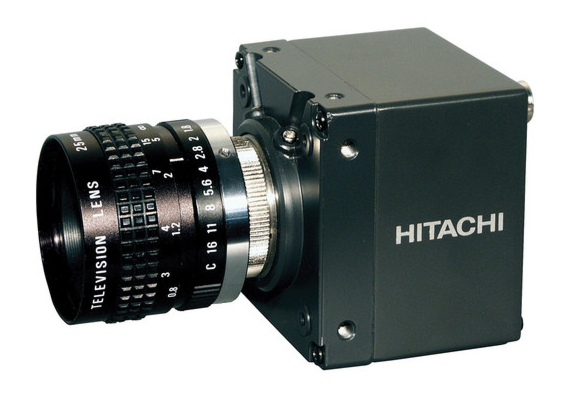

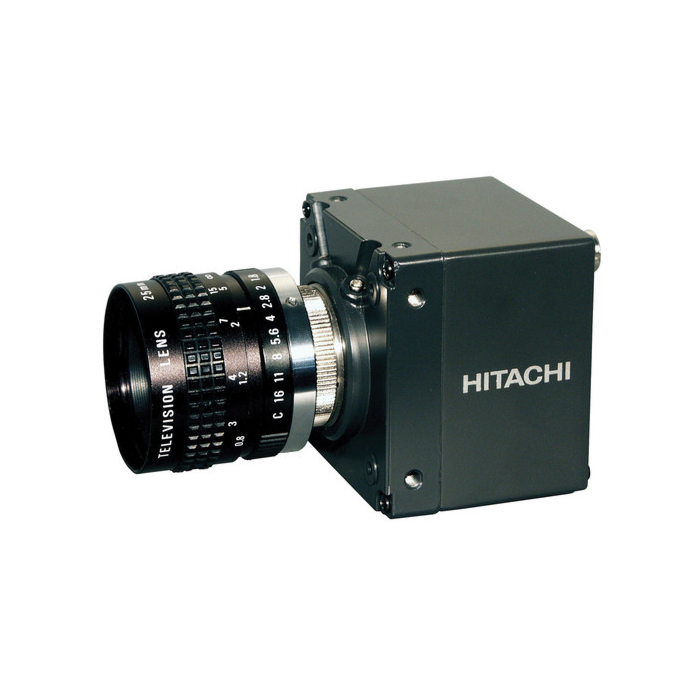

Hitachi KP-FD30M Progressive Scan Color Camera

Quick Overview

Progressive Scan CCD Color Camera
Overview

The KP-FD30M is a single CCD type RGB color camera which utilized the progressive scan CCD image sensor with square pixel for VGA format of 1/2-inch which adopted the RGB primary color mosaic filter. The KP-FD30M is equipped with the progressive full frame RGB output of high frame rate( approx. 60 frame/second ), the external synchronization(HD/VD), the external trigger function, etc., it is suitable for the image-processing equipment input.

Feature:

  • Primary Color Filter
  • 440 Lines of Resolution
  • 50 db S/N
  • 60 frames per second progressive output
  • 10 lux minimum sensitivity
  • Analog RGB Progressive output
  • Analog RGB, Y/C and composite NTSC outputs
  • Built-In Memory with Trigger
  • Available with CameraLink output as KP-FD30CL


Applications:

  • High Speed Image Processing
  • Industrial
  • Machine Vision
  • Inspection
Specifications
Imaging Device 1/2" Progressive Scan Interline CCD
Total Number of Pixels 692(H) x 504(V)
No. of Effective Pixels 659(H) × 494(V)
Unit Cell Size 9.9(H) x 9.9(V) m (Square Pixel)
Scanning Area 7.48(H) × 6.15(V) mm
Color Filter R, G, B primary color mosaic filters on chip
Scanning System Progressive Scan (VGA mode)
Frequency Horizontal: 31.468 kHz
Vertical: 59.94 Hz
Sync. System Internal / External (HD/VD Auto Selection)
Internal Sync Output
(D-sub 15pin MULTI connector)

HD
VD/
SYNC
WE

31.468 kHz 2 Vp-p/75O, Negative
59.94 Hz 2 Vp-p/75O Negative
2 Vp-p/75O, Negative
5 Vp-p, Negative
External Sync Input
(D-sub 15pin MULTI connector)

HD
VD/
EXT. Trigger input

31.468 kHz 2 to 5 Vp-p, Negative
59.94 Hz 2 to 5 Vp-p, Negative
Low 0 VDC, High 2 to 5 VDC
Video Signal Output
(D-sub 15pin MULTI connector)
R
G
B
Sync on G

0.7 Vp-p/75
0.7 Vp-p/75
0.7 Vp-p/75
0.3 Vp-p Negative

Video Signal Processing More than 50dB (AGC, enhancer and gamma off)
S/N (G signal) More than 50dB (AGC, enhancer and gamma off)
Resolution (G signal at center) Horizontal : 440 TV lines
Vertical : 480 TV lines
Standard Sensitivity 2,000 lx (F5.6, 100IRE)
Minimum Illumination 10 lx (F1.4, AGC ON, 50IRE)
Sensitivity Selection AGC OFF / ON
Manual Gain Adjustable at AGC OFF
Limit Gain Adjustable at AGC ON
Electric Shutter Speed

PRESET: Selectable in 11 steps high speed shutter
OFF(1/60), 1/100, 1/250, 1/500, 1/1000, 1/2000, 1/4000
1/10000, 1/20000, 1/30000, 1/50000 second
Selectable in 27 steps low speed shutter
OFF(1/60), 1/30, 1/15, 1/10, 1/7.5, 1/6, 1/5, 1/3.75, 1/3,
1/2.5, 1/2, 1/1.5, 1, 1.5, 2, 2.5, 3, 3.5, 4, 4.5, 5, 5.5, 6, 6.5,
7, 7.5, 8 second
AES: From 1/60 second to approx. 1/50,000 second
(Response : SLOW, NORMAL, FAST)
VARIABLE: Approx. 1H steps from 1/60 second to 1/10,000 second

Ext. Trigger a) One trigger mode
b) Fixed shutter mode
NORMAL(1/60), 1/250, 1/500, 1/1000, 1/2000, 1/4000
1/10000, 1/50000 second
Memory mode: OFF/ON
Auto Level Control[ALC]
(The auto level control system of AES, lens iris and AGC.)
AVERAGE / PEAK&AVERAGE / AREA
(Scanning area is selectable from 9 area.)
Auto-Iris Lens Outputs Iris control voltage input (galvanometer) type lens
: Coupling coil impedance
Damper : 1,150O±10%
Drive : 190O±10%
White Balance Selectable in 3 modes
Auto-tracking[ATW] / preset[AWC] /
R/B gain manual control[MANUAL] /
Text Display 24 alpha-numeric characters in one line
Picture Adjustment Modes and settings can be selected and adjusted from
on-screen menu
Remote Control Modes and settings can be selected and adjusted
from PC.
RS-232C level, Connector: D-sub 15pin MULTI connector
Power Supply 12 VDC ± 10 %
Power Consumption Approx. 370 mA
(Including 60mA for auto-iris lens)
Lens Mount C/CS mount (Flange-back adjustment)
Ambient Temperature Operating : -10 to +50 ?, 30 to 80 %RH
Storage : -20 to +60 ?, 20 to 90 %RH
Vibration Endurance 68.65 m/s2 (10 to 200Hz, 30 minutes each on XYZ axes)
Shock Endurance 490.3 m/s2 (vertical, horizontal, once each face)
External Dimensions 58(W) x 58(H) x 48(D)
Weight Approx. 220g (without lens)
