Hitachi KP-FD30CL Progressive Scan Color Camera

Quick Overview

692 x 504 Total Pixels, 1/2" progressive scan interline CCD, C/CS Mount.

For pricing and technical support:
888-687-6877
Click here to find your Sales Rep
Click Here to Get a Quote


Availability: In stock

More Views

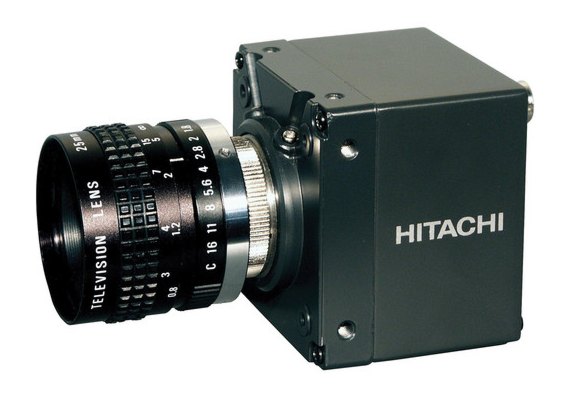

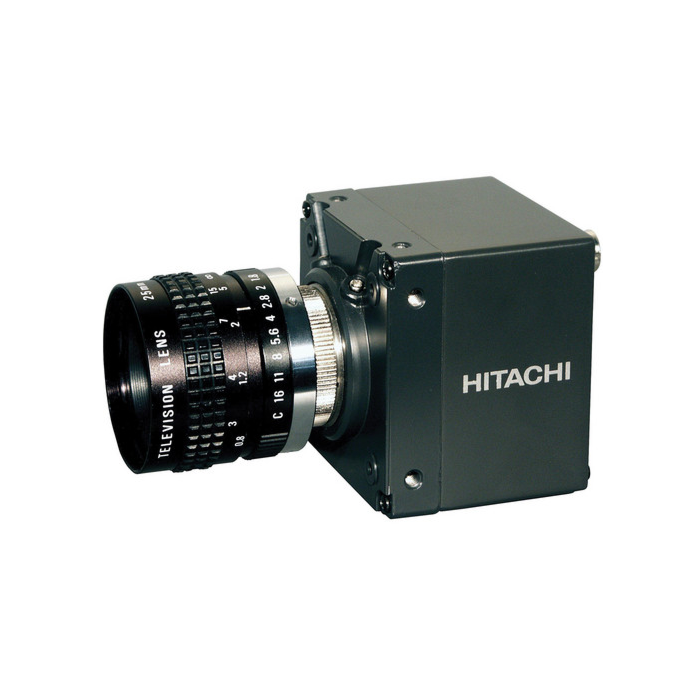

Hitachi KP-FD30CL Progressive Scan Color Camera.

  • Model: /s/c/screen_shot_2015-05-06_at_1.51.51_pm_1.png

Additional Information

Overview

The KP-FD30CL is equipped with the progressive full frame RGB output of high frame rate (approx. 60 frame per second). The KP-FD30CL outputs Camera-Link and is equipped with external synchronization (HD/VD), the external trigger function, etc., it is suitable for the image-processing equipment input.

Features:

  • Primary Color Filter
  • 440 Lines of Resolution
  • 50 db S/N
  • 60 frames per second progressive output
  • 10 lux minimum sensitivity
  • Analog RGB Progressive output
  • Analog RGB, Y/C and composite NTSC outputs
  • CameraLink output


Applications:

  • High Speed Image Processing
  • Machine Vision
  • Industrial
  • Inspection
Specifications
Imaging Device 1/2" Progressive Scan Interline CCD
Total Number of Pixels 692(H) x 504(V)
No. of Effective Pixels 659(H) × 494(V)
Unit Cell Size 9.9(H) x 9.9(V) m (Square Pixel)
Scanning Area 7.48(H) × 6.15(V) mm
Color Filter R, G, B primary color mosaic filters on chip
Scanning System Progressive scan (VGA Mode)
2:1 interlace scan (NTSC Mode)
Frequency Horizontal: 31.468 kHz
Vertical: 59.94 Hz
Sync System Internal / external (HD/VD auto selection)
Internal Sync Output

HD/VD/SYNC 2 Vp-p/75 , Negative polarity
WE: 5 Vp-p, Negative

External Sync Input

HD/VD 2 to 5 Vp-p, Negative polarity
EXT. Trigger input: Low 0 VDC, High 2 to 5 VDC

Video Signal Output

RGB output (G on SYNC)
Y/C output (Only at the NTSC mode)
VBS output (Only at the NTSC mode)

S/N (Y signal) More than 50dB (AGC, enhancer and gamma off)
Resolution
(Y signal at center)
Horizontal: 440 TV lines
Vertical: 480 TV lines (VGA mode) 350 TV lines (NTSC mode)
Standard Sensitivity 2,000 lx (F5.6, 100IRE)
Minimum Illumination 10 lx (F1.4, AGC ON, 50IRE)
Sensitivity Selection Gain Adjustable at AGC OFF and AGC Limit Gain
Electric Shutter Speed

PRESET: Selectable in 11 steps high spped shutter
OFF(1/60), 1/100, 1/250, 1/500, 1/1000, 1/2000, 1/4000
1/10000, 1/20000, 1/30000, 1/50000 second
: Approx. 1H steps from 1/60 second to 1/10,000 second
Selectable in 27 steps low speed shutter
OFF(1/60), 1/30, 1/15, 1/10, 1/7.5, 1/6, 1/5, 1/3.75, 1/3, 1/2.5, 1/2,
1/1.5, 1, 1.5, 2, 2.5, 3, 3.5, 4, 4.5, 5, 5.5, 6, 6.5, 7, 7.5, 8 second
AES: From 1/60 second to approx. 1/50,000 second
( Response : SLOW, NORMAL, FAST )
VARIABLE: Approx. 1H steps from 1/60 second to 1/10,000 second

Ext. Trigger a) One trigger mode
b) Fixed shutter mode
NORMAL(1/60), 1/250, 1/500, 1/1000, 1/2000, 1/4000
1/10000, 1/50000 second
Memory mode: OFF/ON
Auto Level Control[ALC] (The auto level control system of AES, lens iris and AGC)
AVERAGE / PEAK&AVERAGE / AREA
(Scanning area is selectable from 9 area.)
Auto-Iris
lens outputs
[DC/VIDEO*]
DC ( Iris control voltage input type lens, cable length over 150mm )
: Coupling coil impedance Damper : 1,150 ±10% , Drive : 190 ±10%
Power supply : 12 VDC, 60 mA
Note :. "VIDEO" is optionally.
White Balance Selectable in 3 modes
Auto-tracking[ATW]:2,500K~6,000K
preset [AWC] : (2,500K~10,000K)
R/B gain manual control [MANUAL] (2,500K~10,000K)
Remote Control Modes and settings can be selected and adjusted from PC
by RS-232C level,
Power Supply 12 VDC ± 10 %
Approx.360 mA(KP-FD30) pprox.370mA(KP-FD30CL)
(Including 60mA for auto-iris lens)
Lens Mount C/CS Mount (Flange-back adjustment)
Ambient Temperature Operating : -10 to +50 C, (+14 to +122 F) 30 to 80 %RH
Storage : -20 to +60 C(-4 to +144 F), 20 to 90 %RH
Vibration Endurance 68.6 m/s2 (10 to 200Hz, 30 minutes each on XYZ axes)
Shock Endurance 490 m/s2 (vertical, horizontal, once each face)
External Dimensions 58(W) x 58(H) x 48(D)
Weight Approx. 220g (without lens)
Product Videos No
Accessories No

The KP-FD30CL is equipped with the progressive full frame RGB output of high frame rate (approx. 60 frame per second). The KP-FD30CL outputs Camera-Link and is equipped with external synchronization (HD/VD), the external trigger function, etc., it is suitable for the image-processing equipment input.

Features:

  • Primary Color Filter
  • 440 Lines of Resolution
  • 50 db S/N
  • 60 frames per second progressive output
  • 10 lux minimum sensitivity
  • Analog RGB Progressive output
  • Analog RGB, Y/C and composite NTSC outputs
  • CameraLink output


Applications:

  • High Speed Image Processing
  • Machine Vision
  • Industrial
  • Inspection
Imaging Device 1/2" Progressive Scan Interline CCD
Total Number of Pixels 692(H) x 504(V)
No. of Effective Pixels 659(H) × 494(V)
Unit Cell Size 9.9(H) x 9.9(V) m (Square Pixel)
Scanning Area 7.48(H) × 6.15(V) mm
Color Filter R, G, B primary color mosaic filters on chip
Scanning System Progressive scan (VGA Mode)
2:1 interlace scan (NTSC Mode)
Frequency Horizontal: 31.468 kHz
Vertical: 59.94 Hz
Sync System Internal / external (HD/VD auto selection)
Internal Sync Output

HD/VD/SYNC 2 Vp-p/75 , Negative polarity
WE: 5 Vp-p, Negative

External Sync Input

HD/VD 2 to 5 Vp-p, Negative polarity
EXT. Trigger input: Low 0 VDC, High 2 to 5 VDC

Video Signal Output

RGB output (G on SYNC)
Y/C output (Only at the NTSC mode)
VBS output (Only at the NTSC mode)

S/N (Y signal) More than 50dB (AGC, enhancer and gamma off)
Resolution
(Y signal at center)
Horizontal: 440 TV lines
Vertical: 480 TV lines (VGA mode) 350 TV lines (NTSC mode)
Standard Sensitivity 2,000 lx (F5.6, 100IRE)
Minimum Illumination 10 lx (F1.4, AGC ON, 50IRE)
Sensitivity Selection Gain Adjustable at AGC OFF and AGC Limit Gain
Electric Shutter Speed

PRESET: Selectable in 11 steps high spped shutter
OFF(1/60), 1/100, 1/250, 1/500, 1/1000, 1/2000, 1/4000
1/10000, 1/20000, 1/30000, 1/50000 second
: Approx. 1H steps from 1/60 second to 1/10,000 second
Selectable in 27 steps low speed shutter
OFF(1/60), 1/30, 1/15, 1/10, 1/7.5, 1/6, 1/5, 1/3.75, 1/3, 1/2.5, 1/2,
1/1.5, 1, 1.5, 2, 2.5, 3, 3.5, 4, 4.5, 5, 5.5, 6, 6.5, 7, 7.5, 8 second
AES: From 1/60 second to approx. 1/50,000 second
( Response : SLOW, NORMAL, FAST )
VARIABLE: Approx. 1H steps from 1/60 second to 1/10,000 second

Ext. Trigger a) One trigger mode
b) Fixed shutter mode
NORMAL(1/60), 1/250, 1/500, 1/1000, 1/2000, 1/4000
1/10000, 1/50000 second
Memory mode: OFF/ON
Auto Level Control[ALC] (The auto level control system of AES, lens iris and AGC)
AVERAGE / PEAK&AVERAGE / AREA
(Scanning area is selectable from 9 area.)
Auto-Iris
lens outputs
[DC/VIDEO*]
DC ( Iris control voltage input type lens, cable length over 150mm )
: Coupling coil impedance Damper : 1,150 ±10% , Drive : 190 ±10%
Power supply : 12 VDC, 60 mA
Note :. "VIDEO" is optionally.
White Balance Selectable in 3 modes
Auto-tracking[ATW]:2,500K~6,000K
preset [AWC] : (2,500K~10,000K)
R/B gain manual control [MANUAL] (2,500K~10,000K)
Remote Control Modes and settings can be selected and adjusted from PC
by RS-232C level,
Power Supply 12 VDC ± 10 %
Approx.360 mA(KP-FD30) pprox.370mA(KP-FD30CL)
(Including 60mA for auto-iris lens)
Lens Mount C/CS Mount (Flange-back adjustment)
Ambient Temperature Operating : -10 to +50 C, (+14 to +122 F) 30 to 80 %RH
Storage : -20 to +60 C(-4 to +144 F), 20 to 90 %RH
Vibration Endurance 68.6 m/s2 (10 to 200Hz, 30 minutes each on XYZ axes)
Shock Endurance 490 m/s2 (vertical, horizontal, once each face)
External Dimensions 58(W) x 58(H) x 48(D)
Weight Approx. 220g (without lens)
