  • Hitachi KP-F33 Ultra Compact Analog Progressive Scan Camera Image

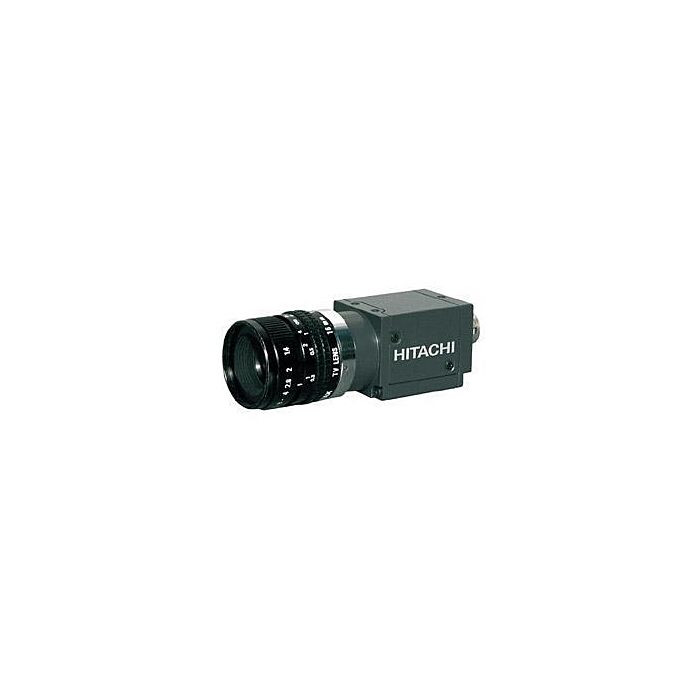

Hitachi KP-F33 Ultra Compact Analog Progressive Scan Camera

Quick Overview

692 × 504 Total Pixels, 1/3" interline CCD, 400 lx (F8, with IR cut filter, 3200K).For pricing and technical support:
Overview

Designed for use in factory automation and industrial vision systems, the KP-F33 features an ultra compact size, square pixels, and progressive scan to provide high vertical resolution of moving objects. Featuring a single output connection, the KP-F33 operates at 30 frames per second, with 500 lines of horizontal resolution. Standard features include external switch selection for all modes of operation, with an eight step electronic shutter featuring a maximum speed of 1/50,000< second, internal or external sync modes, and fixed, manual or automatic gain control. A frame-ondemand function is available for capturing moving objects at a desired timing. In the one trigger mode of operation, the rising edge of the trigger pulse starts the exposure, the durration of the trigger pulse controls the integration time, and the falling edge of the trigger pulse resets vertical sync and delivers the triggered image. The camera can also be operated in a fixed shutter mode or a reset control mode.

Features:

  • Ultra Compact Rugged Design
  • Single Output Connection
  • 70 Frames / Second
  • Multiple Step Electronic Shutter
  • Internal or External Sync Modes
  • Fixed / Manual / Auto Gain Mode
  • Frame-on-Demand Mode
  • External Mode Selection Switches


Applications:

  • Factory Automation
  • Industrial
  • Microscopy
  • Inspection
Specifications
Image Sensor 1/3" Interline type Progressive Scan CCD
Pixels 659 x 494
Cell Size 7.4 x 7.4
Aspect Ratio 4:3
Scan Mode Progressive
Resolution 500 TV lines Horizontal
Min. Illumination 1.0 lux at f1.4
S/N 50 dB
Gamma 1.0
Gain Manual, Fixed, or AGC
Shutter 8 steps 1/70 - 1/58000
Sync Internal / External
Trigger Frame-on-Demand 3 modes
One Trigger, Fixed Shutter, Reset Control
Output 70 F/s 1.0 Volts p-p
Power 12 volts DC 2.4 watts
Size 29 x 29 x 38.5 mm
Weight 55 g
Lens C-Mount
No Video available
KP-F33
