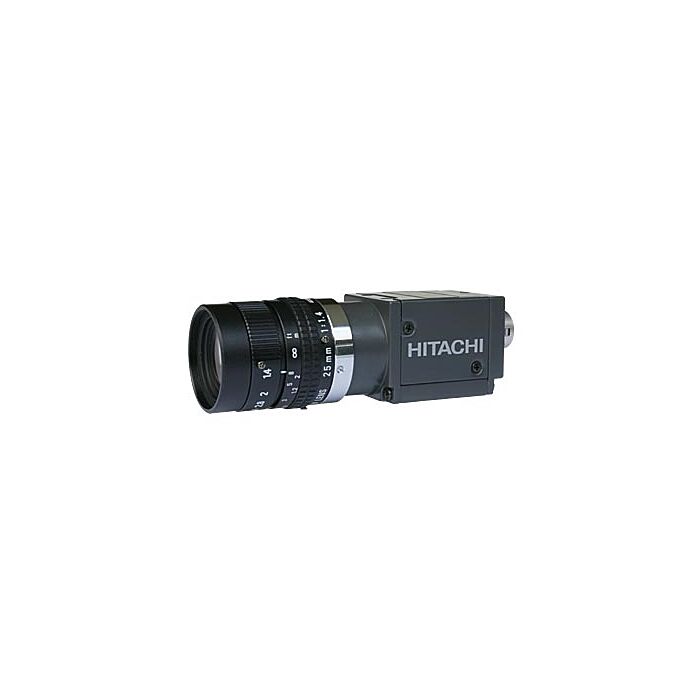

Hitachi KP-F30SCL Ultra Compact Progressive Scan Mini-Camera Link Camera

659 x 494 Effective Pixels, 1/3" Interline type Progressive Scan CCD, C-Mount.
SKU
KP-F30SCL

Designed for use in factory automation and industrial vision systems, the KP-F30SCL features an ultra compact size, square pixels, and progressive scan to provide high vertical resolution of moving objects. Featuring a CameraLink output using a small connector, the KP-F30SCL can operate at 60 frames per second, with 500 lines of horizontal resolution. Standard features include external switch selection for all modes of operation, with an eight step electronic shutter featuring a maximum speed of 1/50,000 second, internal or external sync modes, and fixed, manual or automatic gain control. A frame-on-demand function is available for capturing moving objects at a desired timing. In the one trigger mode of operation, the rising edge of the trigger pulse starts the exposure, the durration of the trigger pulse controls the integration time, and the falling edge of the trigger pulse resets vertical sync and delivers the triggered image. The camera can also be operated in a fixed shutter mode or a reset control mode.

Features:

  • Ultra Compact Rugged Design
  • Small CameraLink Output Connection
  • Dual Speed 60 Frames / Second
  • Multiple Step Electronic Shutter
  • Internal or External Sync Modes
  • Fixed / Manual / Auto Gain Mode
  • Frame-on-Demand Mode
  • External Mode Selection Switches


Applications:

  • Machine Vision
  • Factory Automation
  • Inspection
  • Industrial
  • Surveillance
Image Sensor 1/3" Interline type Progressive Scan CCD
Pixels 659 x 494
Cell Size 7.4 x 7.4
Aspect Ratio 4 : 3
Resolution 500 TV lines Horizontal
Sensitivity 30 lux f4.0 3200 K
Min. Illum. 0.7 lux at f1.4
S/N 50 db
Gamma 1.0
Gain Manual, Fixed, or AGC
Shutter 8 steps 1/30 - 1/50000
Sync Internal / External
Trigger Frame-on-Demand 3 modes
One Trigger, Fixed Shutter, Reset Control
Output CameraLink (Small Connector)
Power 12 volts DC 2.4 watts
Size (W x H x D) 29 x 29 x 38.5 mm
Weight 55 grams
Lens C-Mount
