Hitachi KP-F200SCL Mini CL Interface Monochrome Progressive Scan Camera

Quick Overview

1688 x 1248 Total Pixels, 1/1.8" Interline CCD, C-Mount.

For pricing and technical support:
888-687-6877
Click here to find your Sales Rep
Click Here to Get a Quote


Availability: In stock

More Views

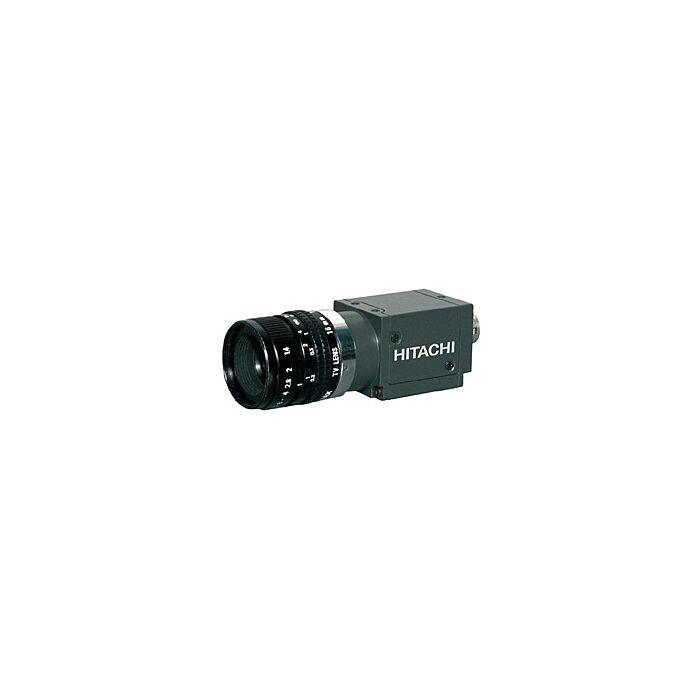

Hitachi KP-F200SCL Mini CL Interface Monochrome Progressive Scan Camera.

  • Model: /h/i/hitachi-kp-f200scl.jpg

Additional Information

Overview
The Hitachi KPF200SCL a CameraLink output system progressive scan black and white CCD camera with a 1/1.8-inch size CCD and a full fame shutter. The image of 1628 (H) x 1236 (V) is output at 15 frames per second. The square format picture elements provide suitability for image processing applications.

The Hitachi KP F200SCL 1/1.8-inch 2 million pixels square lattice progressive scan CCD achieve a high resolution of 1628 (H) x 1236 (V) (UXGA). The camera has small SDR connector for digital outputs. Therefore, the camera has the realization of small-sized shape of 29 (W) x 29 (H) x 29 (D) mm.

Features:
  • Ultra Compact Cube Size Camera
  • 1/1.8” Format Progressive Scan CCD
  • 1628 x 1236 Effective Pixel
  • 1200 TV Lines of Resolution
  • 15 Frames / Second
  • CameraLink Output, 10 bits per pixel – Mini CL Connector
  • Frame-on-Demand Mode
  • RoHS Compliant

Applications:
  • High Speed Image Processing
  • Factory Automation
  • Industrial
  • Inspection
  • Factory Automation
Specifications
Imaging device 1/1.8" Interline CCD
Total pixels 1688 (H) x 1248 (V)
Effective pixels 1628 (H) x 1236 (V)
Pixel pitch 4.4 µm (H) x 4.4 µm (V) [square lattice]
Imaging area 7.16 mm (H) x 5.44 mm (V)
Scanning system Non-interlaced
Aspect ratio 4 : 3
Frame rate 15frames/second (full pixel readout)
Scanning frequency Horizontal: 18.75 kHz
Vertical: 15 Hz
Synchronization Internal
Lens mount C-Mount
Flange focal distance 17.526 mm
Video output Digital output Camera Link
Data : Base configuration 10bit x 1
CLK=36.000MHz
Resolution Horizontal 1200 lines Vertical 1200 lines
Electronic shutter speed 1/15, 1/60, 1/100, 1/250, 1/1000, 1/2000, 2000,1/10000,1/50000 secondfactory setting is off (1/15 second) or 547 steps changeable by variable shutter ( minimum 1/100000 seconds)
Frame on demand Remote setting
(fixed shutter, and one trigger)
Factory setting is all off
Power supply voltage DC12V ± 1V
Current consumption Approx. 210 mA
Ambient operating: 0 to + 40ºC (+32 to ; 104ºF), less than 90 % RH
storage: -10 to + 50ºC (+14 to +122ºF), less than 70 % RH
*If operated continuously, be sure to use at less than +40ºC (104ºF) for long term
stable performance.
Vibration endurance 98 m/s2 (10 to 60Hz, amplitude: 0.98mm constant / 60 to 200Hz, amplitude: variable)
(10 to 150Hz, sweep:1 min, XYZ, 30 min)
Shock endurance 686 m/s2 (Drop test, once each top, bottom, left and right)
External dimensions 29(W) x 29(H) x 29(D) mm
Mass Approx. 53 g
