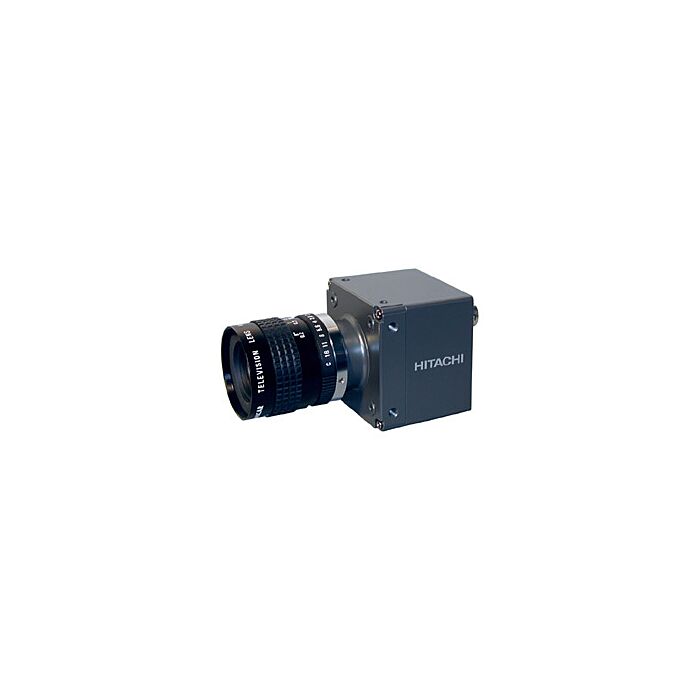

Hitachi KP-F200CL Monochrome Progressive Scan Camera

1628 x 1236 Effective Pixels, 1/1.8" Interline CCD, C-Mount.
SKU
KP-F200CL
CameraLink Interface small size monochrome progressive scan camera. High resolution combined with high frame rates are possible with this series of cameras.Can be used for high-precision and high-speed image processing in many applications.

Features:
  • 1628 x 1236 effective pixel
  • 10 bit LVDS or CameraLink output
  • 24 frames per second
  • Frame-on-Demand Function
  • Partial Scan Function
  • RS-232C remote control for all camera functions


Applications:

  • High Speed Image Processing
  • Low Light Applications
  • Inspection
  • Industrial
  • Factory Automation
Pickup element 1/1.8" interline CCD
Total pixels 1688 (H) X 1248 (V)
Effective pixels 1628 (H) X 1236 (V)
Pixel pitch 4.4 (H) X 4.4 (V) um (square lattice)
Scanning system Non-interlaced
Aspect ratio 4 : 3
Frame rate 30 frames per second (full pixel readout)
Horizontal scanning frequency 37.5 kHz
Vertical scanning frequency 30 Hz
Synchronization Internal/external (automatic switching)
Lens mount C mount
Flange focal distance 17.526 mm
Video output Digital output or analog output for image checking
Digital output Camera-Link
Electronic shutter speed Selectable by external switches: 1/30, 1/60, 1/125, 1/250,
1/1000, 1/2000, 1/10000, 1/50000 second.
Factory setting is 1/30.
Power supply voltage 12 + 1 VDC
Current consumption Approx. 460 mA
Ambient, operating 0 to + 40 oC, less than 90 % RH
Ambient, storage -10 to + 50 oC, less than 70 % RH
External dimensions 58 (W) X 58 (H) X 48 (D) mm
Mass Approx. 220 g
Vibration endurance 29.42 m/s2 (3 directions, 30 minutes each)
Shock endurance 294.2 m/s2 (vertical, horizontal, once each face)
