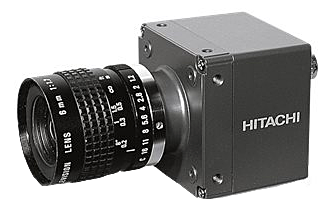

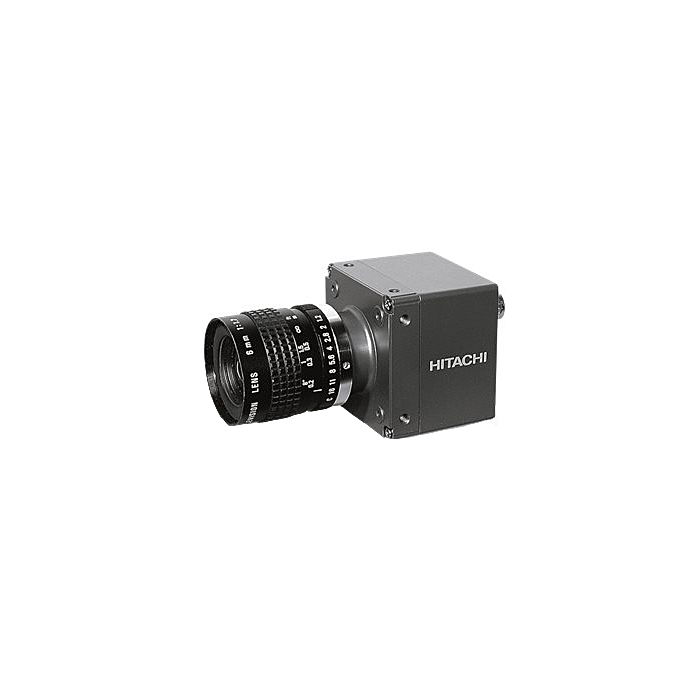

  • Hitachi KP-F120-CL CameraLink Camera Image

Hitachi KP-F120-CL CameraLink Camera

Quick Overview

1392 x 1040 Total Pixels, 2/3" Interline type Progressive Scan CCD, C-Mount.
Overview

Featuring a 2/3 inch 1.45 Million Pixel Progressive Scan CCD, the KP-F120 combines high resolution and high sensitivity with good spectral response. Useable in the Near IR range, the spectral response extends above 1000 nm. Providing a standard aspect ratio of 4 : 3 the CCD features square pixels. Through the use of advanced IC technology, the camera is able to provide a multitude of features in a compact size.

The dual channel 10 bit RS-644 (LVDS) digital output makes for ease of interface with standard frame grabbers. For use in high performance machine vision systems, the camera features a Frame-on-Demand mode that allows an image to be captured and output immediately following the use of a trigger pulse. For even higher frame rates the KP-F120 features a partial scan mode where the scan can start at the top or the center of the frame and continue for the chosen number of lines (16H to 512H). For ease of use, the KP-F120 has an RS-232C remote control port that allows remote control of all camera operating functions.

Features:

  • Near IR Sensitivity
  • Spectral Response Extends above 1000 nm
  • 2/3 inch 1.45 Million Pixel CCD
  • 1392 (H) x 1040 (V) Pixels
  • Frame rates of 30, 60 or 120 Frames / second
  • Progressive Scan with Square Pixels
  • Dual Channel 10 bit RS-644 (LVDS) Output
  • Optional CameraLink or IEEE-1394 outputs
  • Multiple Step Electronic Shutter
  • Frame-on-Demand Mode
  • Partial Scan Mode
  • RS-232C Remote Control
  • C-Mount Optics
  • Compact Size


Applications:

  • Low Light Surveillance
  • High Speed Image Processing
  • Machine Vision
  • Industrial
  • Inspection
  • Outdoor Applications
Specifications
Imager: 2/3" Interline type Progressive Scan CCD
Pixels: 1392 x 1040
Cell Size: 6.45 x 6.45
Aspect Ratio: 4 : 3
Sensitivity: 400 lux at f4.0 3200K
S/N: 54 db
Gamma: 0.45 or 1.0 ( Analog Out )
AGC: On / Off ( Analog Out )
Shutter: 1/30 - 1/50000, eight steps
Sync: Internal / External
Trigger: Frame on Demand - 4 modes
Partial Scan: Upper or Middle
16H, 32H, 64H, 128H, 256H, 512H
Output: Analog: 1.0 V p-p 75 ohms
Digital: RS-644 (LVDS)
10 bit dual ch.
Optional CameraLink, USB 2.0
or IEEE-1394 Outputs
Power: 12 volts DC 500 ma
Size: (W x H x D) 58 x 58 x 48 mm
Weight: 200 Grams
Lens: C-Mount
