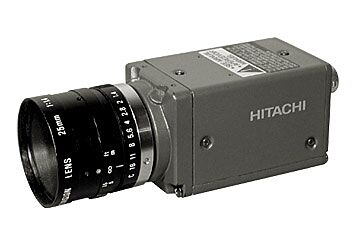

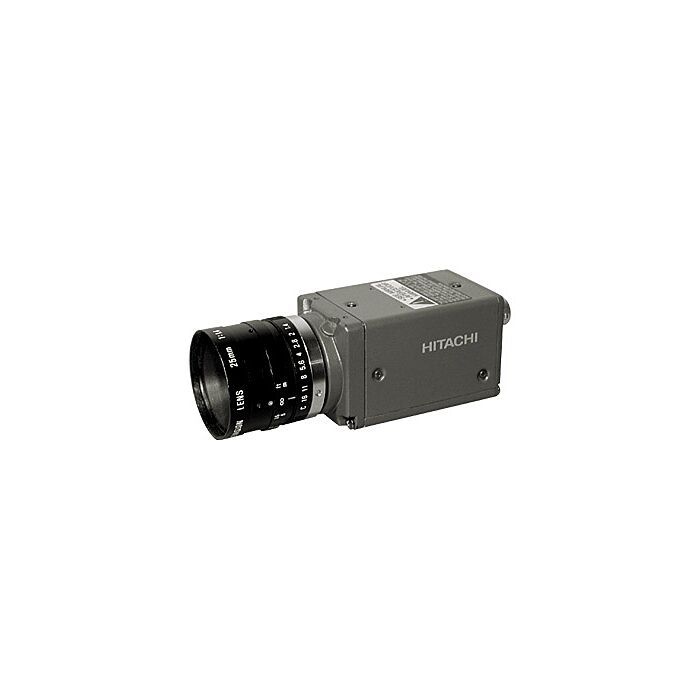

  • Hitachi KP-F100B-CL Mega Pixel Progressive CameraLink Scan Camera Image

Hitachi KP-F100B-CL Mega Pixel Progressive CameraLink Scan Camera

Quick Overview

1392 x 1040 Total Pixels, 2/3" Interline type Progressive Scan CCD, C-Mount.
Overview

The KP-F100BCL is a monochrome high resolution progressive scan camera featuring a CameraLink output that includes 10 bit digital video, RS-232C remote control and trigger control lines. Designed for machine vision and image processing systems, the camera is capable of producing 15 frames at full vertical resolution, or 60 frames per second in the 4 times accelerated mode of operation of progressively scanned video, from the 1.45 million pixel CCD array. Square pixels make for an easy interface with vision and measurement systems.

A frame on demand function allows images captured by use of an external trigger to be output immediately. An analog and a CameraLink output are provided. The CameraLink output allows direct interface with image processing systems, eliminating the A/D converter in the image processor. A multi step electronic shutter along with external H and V drive inputs, provide for ease of use in systems applications. The KPF100BCL also features an RS-232C remote control port for control of all camera functions.

Features:

  • 1.45 Million Pixels
  • Progressive Scan with Square Pixels
  • 10 bit Single Channel Digital Output
  • 15 F/s normal, 60 F/s in 4 times accelerated mode
  • RS-644 ( LVDS ) Digital Output
  • Multiple Step Electronic Shutter
  • Frame-on-Demand Mode
  • Internal or External Sync Mode
  • RS-232C Remote Control


Applications:

  • Factory Automation
  • Inspection
  • Industrial
  • Machine Vision
Specifications
Image 2/3" Interline type Progressive Scan CCD
Pixels 1392 x 1040
Cell Size 6.45 x 6.45
Aspect Ratio 4 : 3
Sensitivity 400 lux at f4.0 3200K
S/N 50 db
Gamma 0.45 or 1.0 ( Analog Out )
AGC On / Off ( Analog Out )
Shutter 1/30 - 1/50000, eight steps
Sync Internal / External
Trigger Frame on Demand - 3 modes
Output Analog 1.0 V p-p 75 ohms
RS-644 ( LVDS ) output
10 bit single c. 20.2 MHz
Remote RS-232C
Power 12 volts DC 300 ma
Size 44 x 44 x 78 mm
Weight 200 Grams
Lens C-Mount
