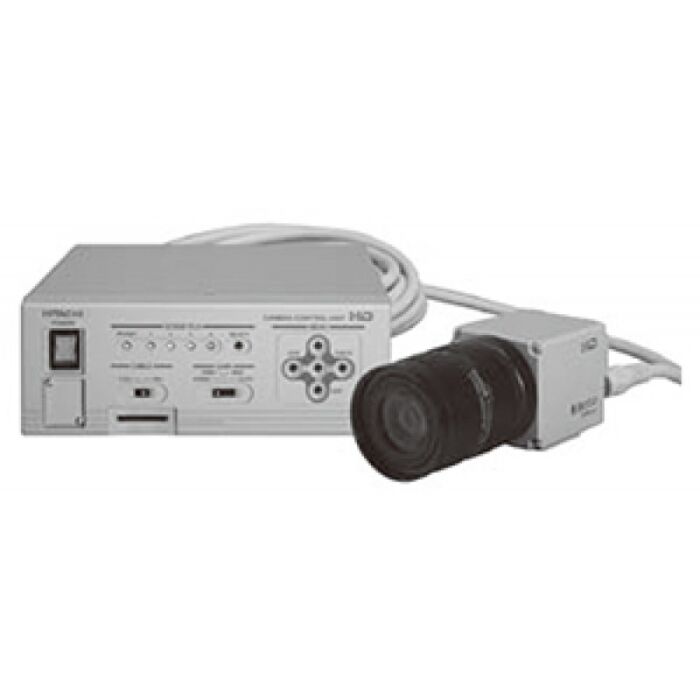

  • Hitachi HV-HD201 Small Separate Head HDTV Color Camera Image

Hitachi HV-HD201 Small Separate Head HDTV Color Camera

Quick Overview

1504 x 1099 Total Pixels, 1/2-size CCD, C-Mount.
Overview

The HV HD201 of C-mount small Head and CCU (Camera Control Unit) by 1/2 size CCD image sensor, the Hitachi’s digital signal processing technology. The camera has HD-SDI output that is a standard interface in broadcast and HD-output that is a consumer interface, so the camera can fit for variety of applications.

Features:

  • High resolution High sensitivity Three 1/2-size 1.5M pixels
  • Full Multi format camera Output
  • The 6 vector Color independent variable masking, which is ideal for such applications as image processing and microscope technology where high color reproduction fidelity is essential
  • Auto electronic shutter mode (AES) maintains a fixed video level. or Intelligent ALC (auto level control)
  • 4 scene file and preset
  • Various adjustments can be made remotely, either from an optional remote control unit, personal computer


Applications:

  • Inspection
  • Factory Automation
  • Industrial
  • Machine Vision
  • Microscopy
Specifications
Scan System 1080/59.94i , 1080/50i , 720/59.94p , 720/50p, *480/59.94i,* 576/50i * VBS ,Y/C Only
Image Sensor 1/2-size CCD
Total Pixels 1504 (H) x 1099 (V)
Actual Pixels 1440 (H) x 1080 (V)
Actual Image Area 6.98 mm (H) x 3.92 mm (V)
Imaging System R, G, B 3-CCD
Lens Mount C-Mount (flange back 17.526 mm in air)
Horizontal Resolution 800 TV line (Center of luminance channel at 1080i, HD-SDI)
Standard Sensitivity F8.0 (2000lx, 3200K, reflection ratio 89.9%)
S/N 56dB
Gain 0dB to +18dB 1dB step
Shutter Preset 1/100, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/10000
Variable 1/59.94 to 1/10000 (1080/59.94i) 1/50. to 1/10000 (1080/50i)
Scene File 4 Scene file
Color Bar Color bar ARIB bar
Power Supply Voltage 12V DC (Stable operation at 10.5 to 15 VDC)
Power Consumption Approx. 28W
Dimension Head : 50mm (W) x 50mm (H) x 55mm (D)
CCU : 188mm (W) x 75mm (H) x 190mm (D)
Ambient Temperature Operation 0 to 40℃
Storage -20 to 60℃
Camera Cable 5.5m, 10m (Option)
Input Signals HD-SYNC (3 state, for 720p or 1080i) (BNC Connector x1)
Serial data (REMOTE Connector)
Output Signals

HD-SDI (BNC SDI- Connector x1) 0.8Vp-p / 75Ω
HD output (HDMI Connector x1, (HV-HD201M only)
Analog output (D-sub 15pin Connector x1)
Analog HD/SD output Y, Pb, Pr / R,G,BɹY : 1.0Vp-p/75Ω, SYNC (3 state)
Composite Video (BNC Connector x1) VBS : 1.0Vp-p / 75Ω
S-VIDEO (Y/C Connector x1)
Y : 1.0Vp-p / 75Ω, C : 0.285Vp-p (burst) / 75Ω, (NTSC) , C : 0.3Vp-p (burst) / 75Ω (PAL)
Serial data (REMOTE 4pin Connector x1)
LENS IRIS (LENS 4pin Connector x1 CCU)
