Hitachi KP-HD20A Compact HDTV Color Camera

Quick Overview

2.1 million pixels, 1/3 inch RGB Bayer Filter MOS Sensor, C / CS Mount.

For pricing and technical support:
888-687-6877
Click here to find your Sales Rep
Click Here to Get a Quote


Availability: In stock

More Views

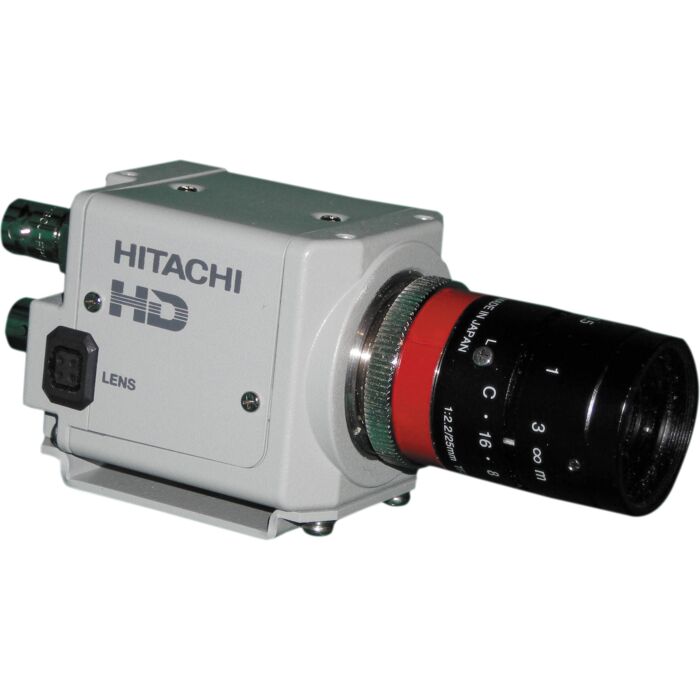

Hitachi KP-HD20A Compact HDTV Color Camera.

  • Model: /h/i/hitachi_kp_hd20a.jpg

Additional Information

Overview

Compact camera body size (44mm width and height) combined with light weight make this a flexible unit for many applications. High sensitivity of minimum photographic subject illumination 0.3lx means this camera can be used in many low light situations.

Features:

  • Full HD(HD-SDI)for Industrial use - 2.1 million pixel RGB Beyer CMOS sensor, External event trigger for machine vision use
  • Coaxial cable transmission - Easy replacement of conventional analogue (PAL/NTSC), camera with this full HD model, since it can transmit HD-SDI signal with existing coax cables. Approx. 100m transmission is realized by 5C-2V. Coax cable
  • Small size/light weight / high sensitivity - Compact camera body size (44mm width and height) combined with light weight make this a flexible unit for many applications. High sensitivity of minimum photographic subject illumination 0.3lx means this camera can be used in many low light situations
  • Non-compressing high definition
  • Low delay (less than 16 ms) Direct monitoring is possible


Applications:

  • Industrial
  • Inspection
  • Machine Vision
  • Factory Automation
Specifications
Imaging Device 1/3" MOS
Total Number of Pixels 2.1M pixels
Video Format * 1080・59.94i / 50i / 30p/25p
Video Output HD-SDI
Transmission Distance * 100m (5C-2V use)
Minimum Photographic Subject Illumination * 0.3lx (F1.2/AGC : MAX)
AGC ON/OFF
Electronic Shutter Fixed/AES
Backlight Compensation ON/OFF (Area to selection is possible.)
White Balance Control Auto/Priset/Manual
Contrast Compensation Dark part gray level correction
Lenses A galvanometer system
Remote Control RS-232C
Lens Mount C/CS mount
Power Supply Voltage DC+12V
Ambient, Operating -10℃ to +50℃
External Dimensions * Approximately 44(W) x 44(H) x 59(D)mm
Mass * Approximately 130g (The lens is excluded)
Product Videos No
Accessories No

Compact camera body size (44mm width and height) combined with light weight make this a flexible unit for many applications. High sensitivity of minimum photographic subject illumination 0.3lx means this camera can be used in many low light situations.

Features:

  • Full HD(HD-SDI)for Industrial use - 2.1 million pixel RGB Beyer CMOS sensor, External event trigger for machine vision use
  • Coaxial cable transmission - Easy replacement of conventional analogue (PAL/NTSC), camera with this full HD model, since it can transmit HD-SDI signal with existing coax cables. Approx. 100m transmission is realized by 5C-2V. Coax cable
  • Small size/light weight / high sensitivity - Compact camera body size (44mm width and height) combined with light weight make this a flexible unit for many applications. High sensitivity of minimum photographic subject illumination 0.3lx means this camera can be used in many low light situations
  • Non-compressing high definition
  • Low delay (less than 16 ms) Direct monitoring is possible


Applications:

  • Industrial
  • Inspection
  • Machine Vision
  • Factory Automation
Imaging Device 1/3" MOS
Total Number of Pixels 2.1M pixels
Video Format * 1080・59.94i / 50i / 30p/25p
Video Output HD-SDI
Transmission Distance * 100m (5C-2V use)
Minimum Photographic Subject Illumination * 0.3lx (F1.2/AGC : MAX)
AGC ON/OFF
Electronic Shutter Fixed/AES
Backlight Compensation ON/OFF (Area to selection is possible.)
White Balance Control Auto/Priset/Manual
Contrast Compensation Dark part gray level correction
Lenses A galvanometer system
Remote Control RS-232C
Lens Mount C/CS mount
Power Supply Voltage DC+12V
Ambient, Operating -10℃ to +50℃
External Dimensions * Approximately 44(W) x 44(H) x 59(D)mm
Mass * Approximately 130g (The lens is excluded)
