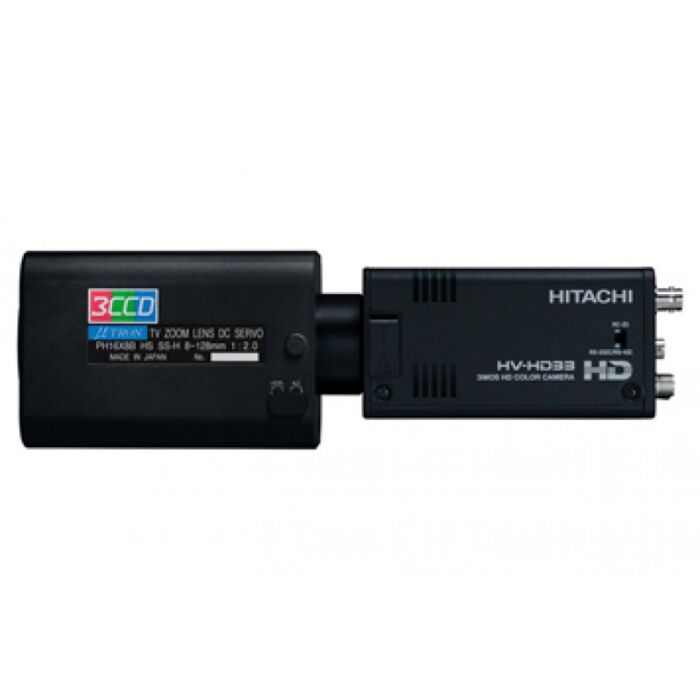

Hitachi HV-HD33 Compact HDTV Color Camera

Quick Overview

1312 x 1032 Total Pixels, 1/3-inch 3MOS, C-Mount.

For pricing and technical support:
888-687-6877
Click here to find your Sales Rep
Click Here to Get a Quote


Availability: In stock

More Views

Hitachi HV-HD33 Compact HDTV Color Camera.

  • Model: /h/i/hitachi-hvhd33.jpg

Additional Information

Overview

The New Hitachi HV-HD33 is designed for general observation where high sensitivity, low-noise, multi-standard signals, and low-user intervention operation is needed. This New 3-sensor camera has outstanding video quality.

The HV-HD33 is HITACHI’s most economical model, 3MOS sensor, 1/3-inch C-mount lens, compact box, HDTV camera.  The camera has the distinct advantage of outputting SDI at multiple frame rates and TV signal standards.  The user interface is menu-driven and functions are available for complete automated “dusk-to-dawn” operation without supervision.  This makes it ideal for general observation in unmanned vehicles or robotic systems.  The sensor array is 1312(H) X 1032(V), SNR is 53dB and sensitivity is F8.  A low power consumption of 8W and weight of 550 grams enables this camera to go where others with similar picture quality simply cannot.

Features:

  • New MOS Sensors with improved sensitivity rise of 6dB
  • Multi format HDTV SDTV output
  • Digital serial output, HD-SDI/SD-SDI 1 output
  • 6 color independent masking & luminosity independent linear masking, negative positive conversion & right left reversing


Applications:

  • Surveillance
  • Industrial
  • Medical Applications
  • Microscopy
  • Robotics
Specifications
Imaging Device 1/3" 3MOS
Total Number of Pixels 1312 x 1032
Video Format * 1080・59.94i / 50i, 720・59.94p/50p, 480・59.94i, 576・50i switchable
Video Output HD-SDI / SD-SDI Switchable
Analog Output RGB, YPbPr (D-sub 15pin)
Sensitivity 2000 lx / F8.0
S/N 53dB (1080i output)
Gain 0 ~ 15 dB
Lens Mount C Mount
Power Consumption 8W
External Dimensions Approx 65 (w) x 54 (h) x 125 (d) mm
Product Videos No
Accessories No

The New Hitachi HV-HD33 is designed for general observation where high sensitivity, low-noise, multi-standard signals, and low-user intervention operation is needed. This New 3-sensor camera has outstanding video quality.

The HV-HD33 is HITACHI’s most economical model, 3MOS sensor, 1/3-inch C-mount lens, compact box, HDTV camera.  The camera has the distinct advantage of outputting SDI at multiple frame rates and TV signal standards.  The user interface is menu-driven and functions are available for complete automated “dusk-to-dawn” operation without supervision.  This makes it ideal for general observation in unmanned vehicles or robotic systems.  The sensor array is 1312(H) X 1032(V), SNR is 53dB and sensitivity is F8.  A low power consumption of 8W and weight of 550 grams enables this camera to go where others with similar picture quality simply cannot.

Features:

  • New MOS Sensors with improved sensitivity rise of 6dB
  • Multi format HDTV SDTV output
  • Digital serial output, HD-SDI/SD-SDI 1 output
  • 6 color independent masking & luminosity independent linear masking, negative positive conversion & right left reversing


Applications:

  • Surveillance
  • Industrial
  • Medical Applications
  • Microscopy
  • Robotics
Imaging Device 1/3" 3MOS
Total Number of Pixels 1312 x 1032
Video Format * 1080・59.94i / 50i, 720・59.94p/50p, 480・59.94i, 576・50i switchable
Video Output HD-SDI / SD-SDI Switchable
Analog Output RGB, YPbPr (D-sub 15pin)
Sensitivity 2000 lx / F8.0
S/N 53dB (1080i output)
Gain 0 ~ 15 dB
Lens Mount C Mount
Power Consumption 8W
External Dimensions Approx 65 (w) x 54 (h) x 125 (d) mm
