Hikvison SA3520M-10MP (SA3520M10MP) 35mm Lens

The lens is an important component of the machine vision system, and it is mainly used to focus the imaging target on the photosensitive surface of the image sensor.
SKU
Hikvison SA3520M-10MP

The Hikvision SA3520M-10MP is built with the 35Mmm, C-Mounted lens built for aerospace, industrial imaging, and national defense.





Features:



  • Higher Definition
  • Better spectrum projection
  • Correction capabilities
  •

    Application:



  • Surface and continuous logistics inspection
  • Intelligent transportation system
  • Traffic law enforcement system
  • Text reading, mail sorting
  • Measuring (2D/3D)
  • Medical imaging
  • Bioassay
  • Aerospace
  • National defense
  • Model

    SA3520M-10MP

    Specifications

    Fixed Focal Length Manual Iris Lens

    10MP

    Focal Length

    35mm

    Mount

    C mount

    Iris

    F2.0-F22

    Front Thread

    M40.5*0.5

    Image Format

    Φ23mm (4/3")

    Flange Back Focal Length

    17.5mm

    Distortion

     -0.56%

    M.O.D

    0.2 m

    Control

    Iris

    Manual (locking structure)

    Outer Size

    Φ44.6*54.9

    Focus

    Manual (locking structure)

    Weight

    173g

    Zoom

    Working Operating Temperature

    -10~50℃

    Field of View

    D

    1"

    25.9°

    4/3"

    36.6°

    H

    20.8°

    29.6°

    V

    15.7°

    22.4°

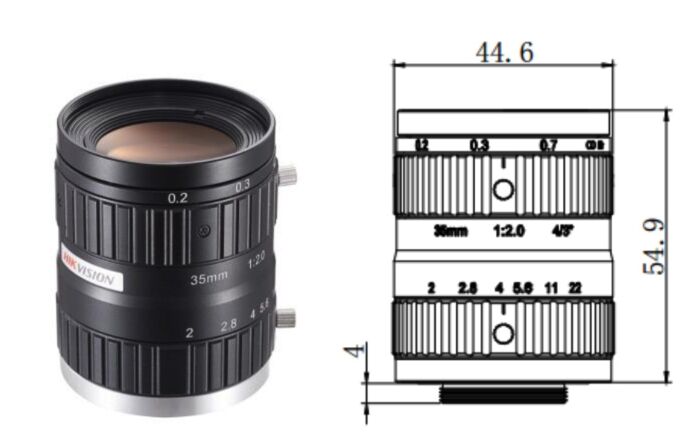

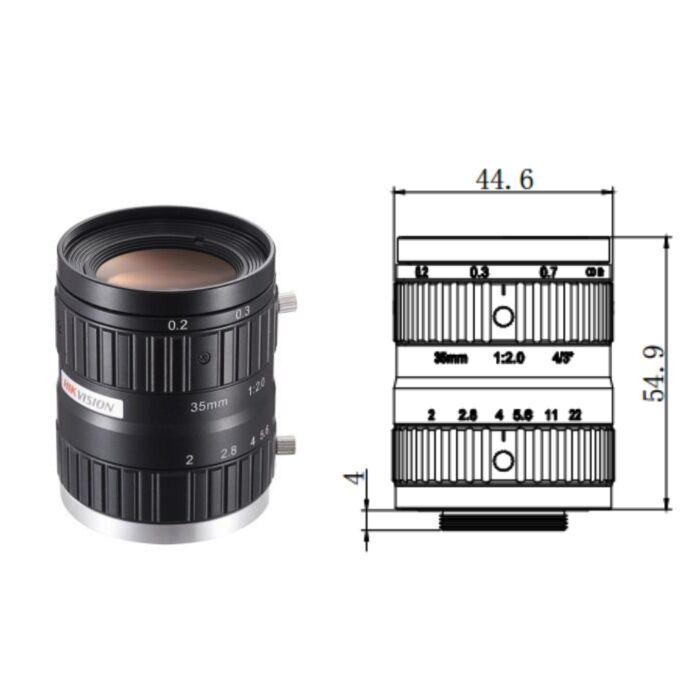

    Mechanical Dimensions
