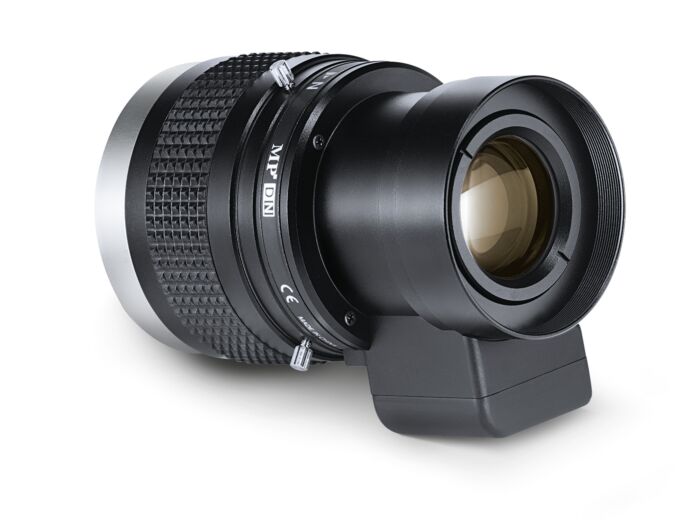

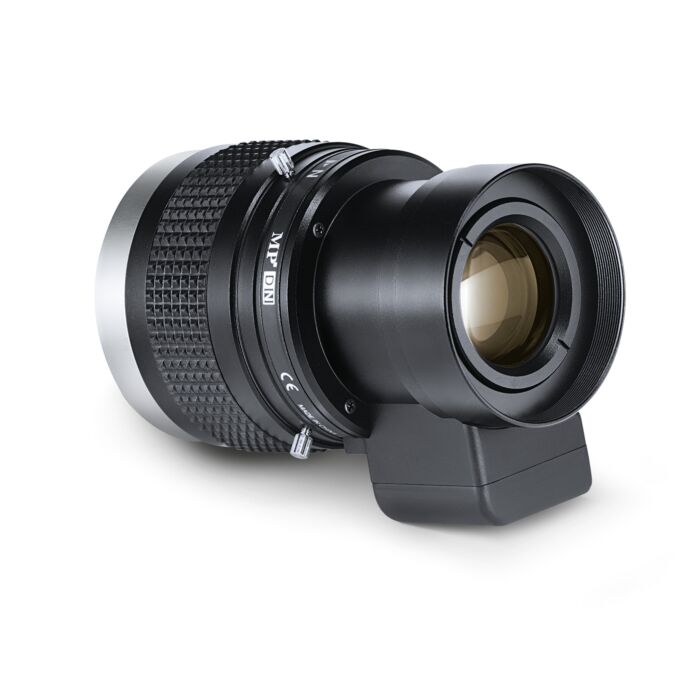

HF50SR4A-1 (HF50SR4A1): Fujinon 2/3" 5 Megapixel Day/Night Lens (C-Mount)

Fujinon's HF50SR4A-1 is a Day/Night Fixed Focal Lens (50mm) with an iris range of f2.8-close that offers high performance even in low-light conditions, rendering it suitable for security and monitoring applications.
SKU
HF50SR4A-1

Get in-depth information on Fujinon HF50SR4A-1 CCTV camera lens including detailed technical specifications for all your surveillance purposes.



Features:



  • Format: 2/3"
  • Focal Length: 50mm
  • Aperture: F2.8
  • Iris Type: Manual Iris
  • Mount: C-Mount
  •

    Applications:



  • CCTV
  • Surveillance
  • Security
  • Description IR corrected
    For 2/3" ~ 1/3" cameras
    Focal length in mm 50
    Iris Range F2.8~T360
    Operation iris Manual
    Operation Focus Manual
    Object Dimensions at M.O.D. (in mm) 2/3":
    179 x 134

    1/2":
    130 x 97

    1/3":
    97 x 73
    Angle of view 2/3":
    10° 3' x 7° 33'

    1/2":
    7° 19' x 5° 30'

    1/3":
    5° 30' x 4° 7'
    Minimum object distance (M.O.D.) in m 1
    Focusing range (from front lens) in m limitless ~ 1
    Mount C
    Mass in g 260
    Filter Thread M40.5 x 0.5
