HF25SA-1 Image #1

HF25SA-1 (HF25SA1): Fujinon 2/3" 25mm 5 Megapixel Lens (C-Mount)

Infinite Pixels Image #1

IPX-SDIBS (IPXSDIBS): Infinite Pixels (IPXUSA) FULL HD 1920 x 1080 60 fps, 1080i HDMI MINI BOX Camera

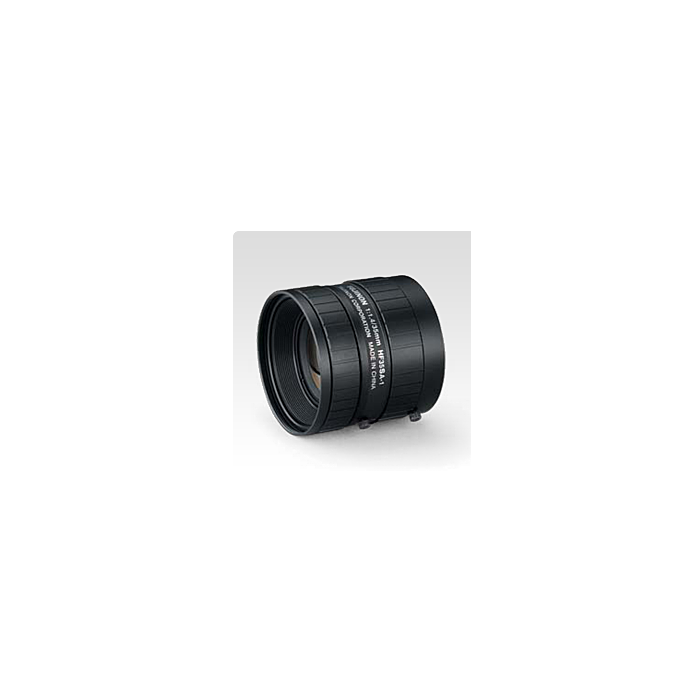

HF35SA-1 (HF35SA1): Fujinon 2/3" 35mm 5 Megapixel Lens (C-Mount)

The HF25SA-1 machine vision lens is built and designed for numerous industrial applications.
SKU
HF35SA-1

The HK35SA-1 is compact, robust and designed to fit a wide range of machinery and uses a rear focusing system to achieve highly detailed close-up imaging.



Features:



  • Fixed Focal Length
  • Manual Iris
  • Metal Mount
  • Wide Aperature Ratio
  •


    Applications:



  • Machine Vision
  • Industrial Imaging
  • Industrial Inspection
  • Focal Length 35mm
    Iris Range F1.4-F22
    Angle of View
    14.0° x 10.5°(2/3")
    Focus range (from front of the lens) (mm) ∞-200
    Operation Focus Manual
    Operation Iris Manual
    Filter Thread M49x0.75
     TV Distortion (%) 0.07
    Mount C-Mount
    Sensor Size (max.) 2/3"
    Weight 185g
