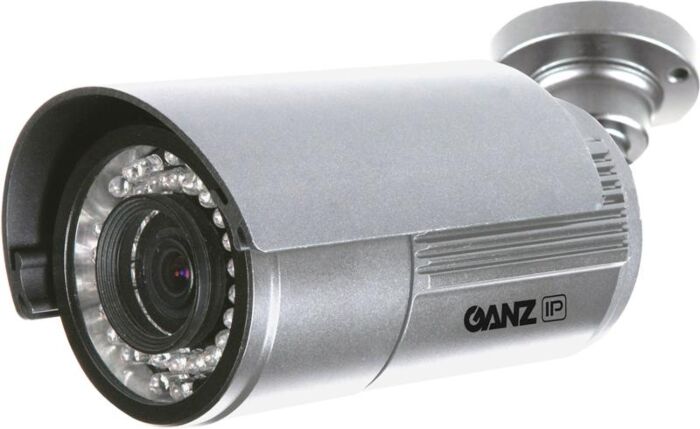

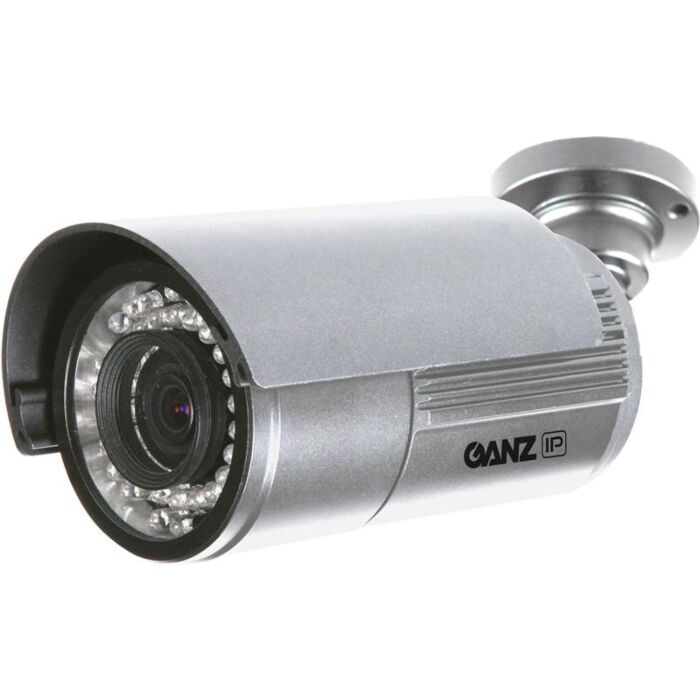

Ganz ZN-B1A True Day/Night IP Bullet Camera
ZN-B1A True Day/Night IP Bullet Camera
SKU
ZN-B1A
The ZN-B1A camera by Ganz comes with a VGA resolution, dual streaming video capabilities, and comes complete with setup and recording software. The ZN-B1A, with 42 IR LEDs, illuminates up to a distance of over 100 feet.
Features:
Applications:
|
Image Sensor
|
1/2.5" Progressive Scan CMOS
|
|
Resolution
|
VGA
|
|
Shutter Speed
|
1/4, 1/10, 1/12.5, 1/15, 1/20, 1/25, 1/30, 1/50, 1/60, 1/100, 1/120, 1/240, 1/480, 1/960, 1/1024, 1/2000 sec
|
|
Min. Illumination
|
Color: 1.6 lux @ F1.6, 30 IRE
B/W: 0 lux F1.6, Slow Shutter / IR ON, 30 IRE |
|
Lens
|
3.3 - 12mm Varifocal
DC Auto Iris / AES / Manual F1.6 H.O.V.: 89.8° ~ 23.9° |
|
Day/Night Performance
|
IR Cut Filter, True Day/Night
|
|
White Balance
|
ATW/Manual (Preset)
|
|
Dynamic Range
|
50dB
|
|
Digital Zoom
|
2 ~ 10x (client software)
|
|
Other Functions
|
AGC, BLC, Mirror/Flip
|
|
Video Signal
|
NTSC / PAL selectable
|
|
Monitor Output
|
Composite output (BNC), 75ohm 1 Vpp
|
|
Audio In/Out
|
Line in, Line out (external amplifier needed)
|
|
Video
|
Compression: MJPEG / MPEG-4 selectable
Output: 1.0VpP, 75ohm, composite |
|
IR Illumination
|
700-1100 nm, 850 nm built-in
|
|
IR Wavelength
|
700-1100 nm, 850 nm built-in
|
|
MPEG-4
|
Resolution: Full D1, Half D1, CIF
Frame rate: 30, 24, 15 fps Bitrate: Multi-Level, 64 Kbps - 8 Mbps |
|
Synchronization
|
In MPEG-4 Mode
|
|
Time Stamp
|
Time/Date/Title
|
|
Power/Power Consumption
|
12V DC / POE
500 mA IR on, 350 mA IR off |
|
Operating Temperature
|
-4 ° ~ 122 ° F
|
|
Networking
|
10BASE-T, 100BASE-TX, RJ45
|
|
Image Compression
|
H. 264, MJPEG - (2nd stream only)
|
|
Network Resolution
|
640 x 480 (VGA), 320 x 240 (QVGA), 704 x 480 (4CIF), 352 x 240 (CIF)
|
|
Protocols
|
IPv4/6, HTTP, HTTPS, SMTP, UPnP, DNS, Dynamic DNS, NTP, RTSP, RTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP
|
|
Frame Rate
|
2.5 fps ~ 30 fps
|
|
Web Browser
|
Internet Explorer 7.0 or higher, Firefox, Chrome, PDA / Smart phone
|
|
Security
|
Password Protection, HTTPS, IP Adressing Filtering
|
|
SDK (API)
|
HTML based API
|
|
Video Motion Detection (VMD)
|
User set 4 regions of interest, 10 step sensitivity
|
| Alarm |
I/O 1 input/1output
|
|
Alarm Trigger
|
VMD, External Alarm Output
|
|
Alarm Event
|
E-mail notification, FTP uploading, Alarm out
|
|
Power Consumption
|
12VDC: 8.6W
24VAC: 8.5W PoE: Class 0 (IEEE 802.3af compliant) |
|
MicroSD Card
|
MicroSDHC card compatible - SanDisk, Transcend, Kingston,
Toshiba: 1G, 2G, 4G, 8G, 16G, 32G |
|
External I/O Terminals
|
Alarm In x1, Alarm Out x1, Audio Out x1
|
|
Dimensions (W x H x D)
|
188.5mm x 91.6mm x 85.2mm
|
|
Weight
|
1.6 lbs
|
|
Weather Rating
|
IP66
|
| Certifications |
CE, FCC, WEEE
|
