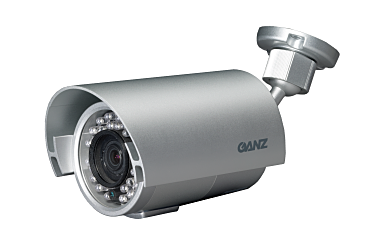

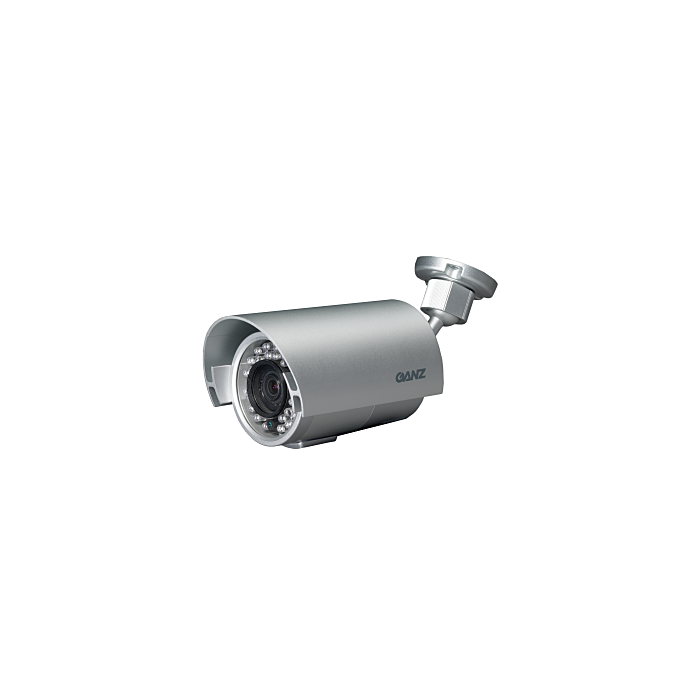

Ganz ZC-BNX8312NBA Outdoor True Day/Night IR Bullet Camera

Quick Overview

Outdoor True Day/Night IR Bullet Camera 3.3-12mm varifocal, 540 TVL, 20 IR LEDs, 12/24
Overview Features:
  • 600 TVL Resolution
  • 3.3-12mm computar® IR coated auto-iris varifocal lens
  • 30 IR LEDS provide over 100' illumination range
  • Digital Wide Dynamic Range
  • Multi-function switch for OSD control
  • Backlight / Highlight compensation
  • Motion detection
  • Privacy masking
  • Digital noise reduction (2D)
  • Lens shading compensation
  • Easy cable management with cable feed-through bracket
  • IP67 Rating for all weather conditions
  • Specifications
    Image Sensor 1/3" Sony Super HAD II CCD
    TV System NTSC
    Scanning System 2:1 Interlace
    Effective elements 768 (H) x 494 (V)
    Scanning frequency 15.734kHz (H) / 59.94Hz (V)
    Video output 1.0V p-p / 75Ω
    Horizontal resolution 600 TVL
    Min. Illuminance 0 lux (B/W Mode - at IR LED ON)
    Day / Night True Day / Night, Retractable IR Cut Filter
    S/N ratio More than 50 dB (at minimum AGC gain)
    Gamma characteristic 0.45
    IR Illumination 30 IR LEDs
    Sync. System Internal only
    Lens 3.3-12mm / F1.4 Auto-iris
    Max Aperture Ratio 1: 1.4 ~ 2.9
    Angle of View 89.8° ~ 23.9° Horizontal
    Electronic shutter 1/60 sec, FLK, 1/60 ~ 1/100,000 (selectable)
    BLC (Backlight Compensation) On / Off / HLC (Highlight compensation)
    White balance ATW1, ATW2, AWC, Manual (selectable)
    Power supply AC 24V ± 10%, 60 ± 1Hz, DC 12V ± 10%
    Power consumption 5.7W (24V AC) / 6.5W (12V DC)
    Operating Temperature -4° F ~ 122° F (-20° C ~ 50° C)
    Storage Temperature -4° F ~ 140° F (-20° C ~ 60° C)
    Ambient Humidity 85% RH (Operation) / 95% RH (Storage)
    IP Rating IP67
    External Dimensions 8.2" (L) x 2.8" (Ø) / 209mm (L) x 72mm (Ø)
    Weight 1.7 lbs. / 750g (with sunshield)
    Switch Multi-function switch for OSD control
    Accessories Self-tapping screw (3), Template, Instruction Manual, Additional Power Connector, Allen key
    Certifications CE, FCC, WEEE
