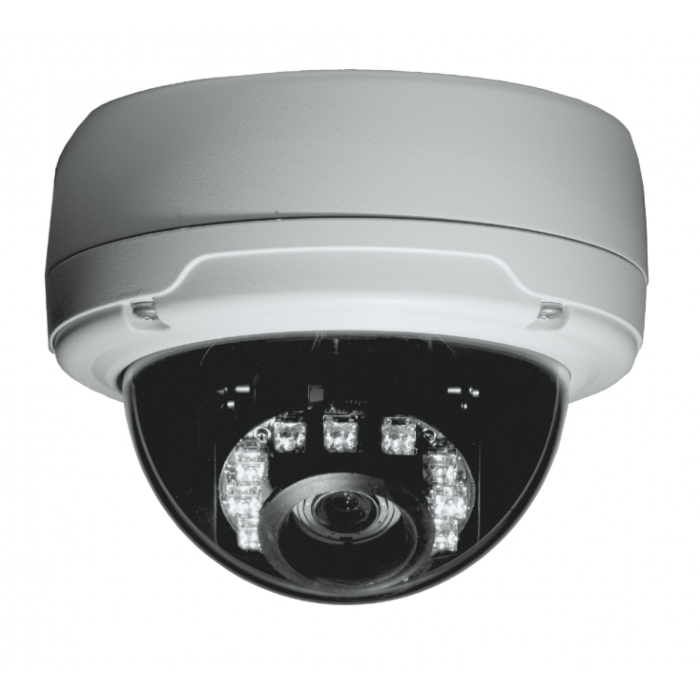

Ganz DDK-1500D Vandal Resistant Dual-Codec IP Dome Camera
Ganz DDK-1500D Vandal Resistant Dual-Codec IP Dome Camera
SKU
DDK-1500D
The DDK-1500D Dual-Codec IP Dome Camera is perfect for indoor or outdoor applications with an operating temperature of -4° ~ 122° F. This camera comes complete with real-time, synchronized video stream and many other additions.
Features:
Applications:
|
Image Sensor
|
Sony Super HAD 1/3" CCD HQ1 Digital Signal Processor
|
|
Electronic Shutter
|
1/60 - 1/100,000 sec
|
|
Min. Illumination
|
Color: 0.5 lux @ F1.6, IR 0.0 lux @ F1.6
|
|
Lens
|
3.7 - 12mm Varifocal Auto Iris DC
|
|
Video Adjustments
|
Max AGC, Contrast, Brightness, BLC, Saturation, Sharpness, Flickerless
|
|
Exposure
|
AGC / AWB
|
|
Video
|
Compression: MJPEG / MPEG-4 selectable
Output: 1.0VpP, 75ohm, composite |
|
IR Wavelength
|
700-1100 nm, 850 nm built-in
|
|
MPEG-4
|
Resolution: Full D1, Half D1, CIF
Frame rate: 30, 24, 15 fps Bitrate: Multi-Level, 64 Kbps - 8 Mbps |
|
Synchronization
|
In MPEG-4 Mode
|
|
Time Stamp
|
Time/Date/Title
|
|
Power/Power Consumption
|
12V DC / POE
500 mA IR on, 350 mA IR off |
|
Operating Temperature
|
-4 ° ~ 122 ° F
|
|
Networking Interface
|
Ethernet 10/100 Base-TX, MDIX
|
|
Protocols
|
TCP/IP, DHCP, HTTP, UDP, FTP, SNTP, ICMP, DDNS, DNS, UPnP, PPPoE, ARP
|
|
Dimensions (D x H)
|
110mm x 142mm
|
|
Weight
|
.73 lbs
|
|
Day/Night
|
Mechanical IR cut filter
|
| Alarm |
I/O 1 input/1output
|
| Password Authorization |
Multi-level / Multi-users
|
| Motion Detection |
96 zones, levels
|
| Privacy Masking |
3 zones
|
| Alarm |
I/O 1 input/1output
|
