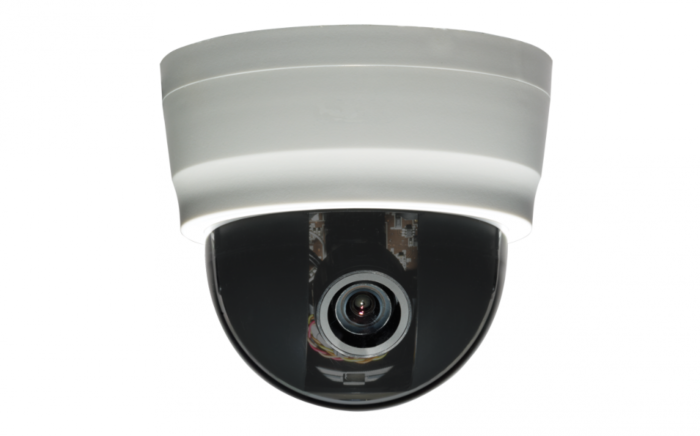

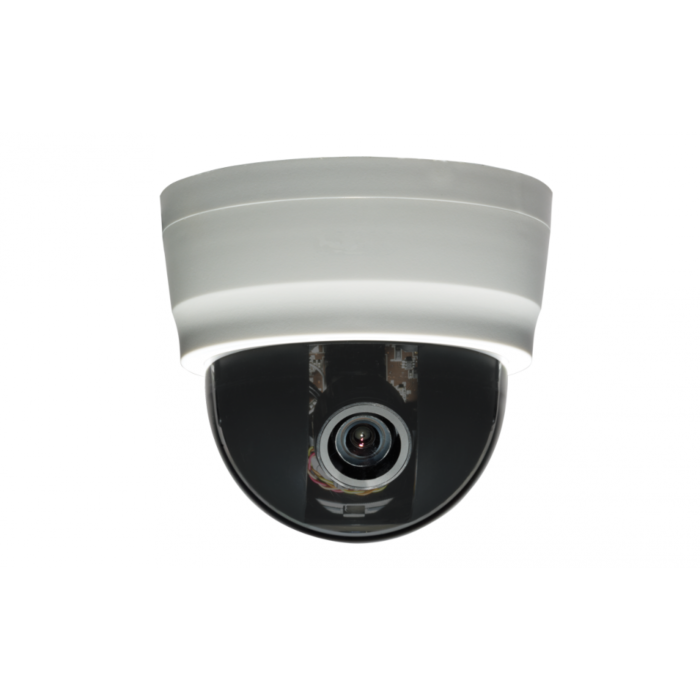

Ganz DCB-39 High Res Color Varifocal Dome Camera
768 x 494, 1/3” Sony Super HAD II CCD, 3-9mm / F1.2 Auto-iris.
SKU
DCB-39
This high resolution dome camera is integrated with a varifocal lens and captures everything in color. With motion detection and digital noise reduction it is the perfect camera for your security needs.
Features:
High Resolution 600 TVL
3-9mm computar® integrated varifocal lens
3-axis manual pan/tilt rotation bracket
Digital Wide Dynamic Range
Multi-function Tact switch for OSD control
Backlight & Highlight compensation
Motion detection
Privacy masking
Digital noise reduction
Lens shading compensation
Low power consumption
Indoor 4S Gang box mountable
Applications:
Indoor Surveillance
Industrial
Inspection
Meetings
Features:
Applications:
| TV System | NTSC |
| Scanning System | 2:1 Interlace |
| Image Sensor | 1/3" Sony Super HAD II CCD |
| Total Pixels | 768(H) x 494(V) |
| Scanning Frequency | 15.734kHz(H) / 59.94Hz(V) |
| Video Output | 1.0V p-p / 75Ω |
| Camera Resolution | 600 TVL |
| Minimum Illumination | 0.4 lux / F1.2 (50 IRE) |
| Day/Night Performance | Digital Day/Night |
| S/N | More than 50dB (at minimum AGC gain) |
| Gamma Correction | 0.45 |
| Sync System | Internal Only |
| Standard Board Lens | 3-9mm / F1.2 Auto-iris |
| Max Aperture Ratio | 1: 1.2 |
| View Angle | 90° ~ 31.8° Horizontal |
| Electronic Shutter | 1/60 sec, FLK, 1/60 ~ 1/100,000 (selectable) |
| Backlight Compensation | On/Off |
| White Balance | ATW1, ATW2, AWC, Manual (selectable) |
| Power Supply | 24V AC ± 10% 50Hz ± 1Hz / 12V DC ± 10% |
| Power Consumption | 1.8W (12V DC) / 2.5W (24V AC) |
| Operating Temperature | 1.38W |
| Operating temperature | 14° F ~ 122° F (-10° C ~ 50° C) |
| Storage Temperature | -4° F ~ 140° F (-20° C ~ 60° C) |
| Ambient Humidity | 85% RH (Operation) / 95% RH (Storage) |
| Lens mount | CS (Back focus adjustable) |
| External Dimensions | 4.7”(Ø) x 4.3”(H) / 122mm(Ø) x 108.3mm(H) |
| Weight | 0.6 lbs. / 280g |
| Switch | Multi-function Tact switch for OSD control |
| Accessories | Self-tapping screw (3), Template, Instruction Manual, Additional Power Connector |
| Certifications | CE, FCC, WEEE |
