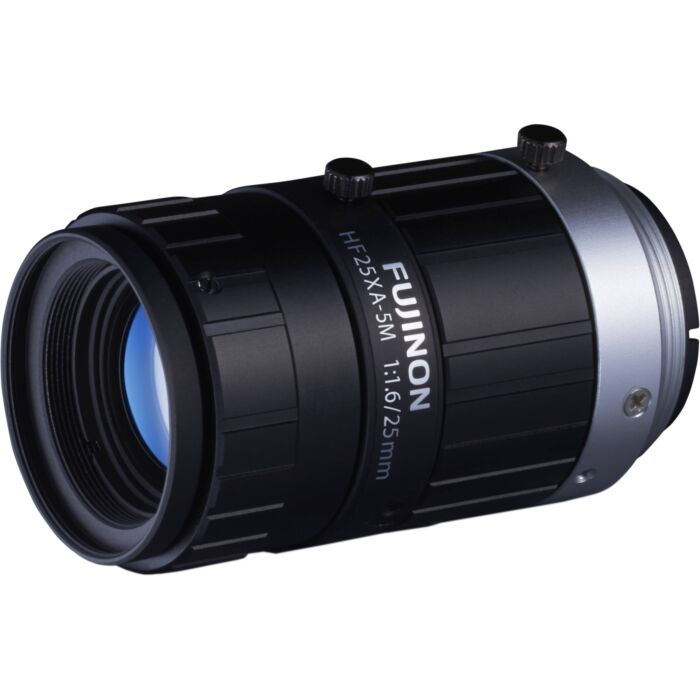

  • Fujinon HF25XA-5M Image # 1

HF25XA-5M: Fujinon 1 1/2" 25mm 5MP Machine Vision Lens (C-Mount)

Quick Overview

HF25XA-5M: Fujinon F1.6 to F16, Angle of view (H x V) - *Mounted to 2/3” sensor cameras: 20.0°×15.0°.
Overview

The Fujinon HF-XA-5M series features “4D High Resolution”**, which mitigates resolution degradation even when changing a working distance or aperture value. The lenses' compact design accommodates installation at a variety of conditions at production lines. The series is available in six models of various focal lengths, allowing users to choose the optimum model according to their usage.

Features:

  • C Mount for 2/3" Sensors
  • Manual Focus and Iris
  • Adjustable Locking Focus and Iris Knobs
  • f/1.6 to f/16
  • M25.5 Threaded Front for Filters

  • Applications:

  • Product Inspection Applications
  • Specifications
    Focal Length 25mm
    Iris Range F1.6-F16
    Angle of View (H x V)
    *Mounted to 2/3" sensor cameras
    20.0° x 15.0°
    Focus range (from front of the lens) (mm) ∞-100
    Operation Focus Manual
    Operation Iris Manual
    Filter Thread (mm) M25.5 x 0.5
    Mount C-Mount
    Sensor Size (max.) 1 1/2"
    Back focal distance (in air) 13.60
    Flange back 17.526
    Exit Pupil Position -79.47
    Front principle point (from Mount) -5.38
    Rear principle point (from Mount) -7.54
    Distance between the principal points -2.16
    TV distortion (%) -0.07
    Diameter (mm) φ29.5 x 46.5
    Mass in g 72
    Relative Illumination (Aperture: at full open, Image height: at diagonal) 47
