  • FS-C4KU7DCL Image #1

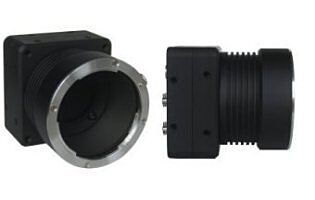

FS-C4KU7DCL: Sentech Line Scan CL CMOS, 4K, Color, Cased Camera

Quick Overview

The FS-C4KU7DCL form Sentech is a 4k Line Scan Camera Link camera featuring an 80 kHz Line Rate, Color or Monochrome models, Camera Link Output, and more.
Overview

Field Update Capabilities, Dual Line Scan, and C, F, or M42 Mounts are some of the configurations of the FS-C4KU7DCL.



Features:



  • CMOS Sensor
  • 4K Pixels
  • High-Speed Camera Link Output
  • F, M42 Mount
  •


    Applications:



  • Machine Vision
  • Factory Automation
  • Specifications

     Imaging



    Model No

    FS-C4KU7DCL

    Image Sensor

    4k CMOS Image Sensor, DR-2X4K-7-inver-RGB, (AWAIBA)

    Active Pixels

    4,096 Pixels x 2lines (Bayer)

    Pixel Size

    7 (H) x 7 (V) µm (7 µm pitch)

      Function



    Photo Array Length

    28.672 mm

    Data Rate

    85 MHz x RGB x 6 tap, 80 MHz x RGB x 6 tap, 50 MHz x RGB x 6 tap, 85 MHz x RGB x 3 tap, 80 MHz x RGB x 3 tap, 50 MHz x RGB x 3 tap

    Maximum Line Rate

    80.5 kHz (85 MHz x RGB x 6 tap), 75 kHz (80 MHz x RGB x 6 tap), 46 kHz (50 MHz x RGB x 6 tap), 40.5 kHz (85 MHz x RGB x 3 tap), 38.5 kHz (80 MHz x RGB x 3 tap), 24 kHz (50 MHz x RGB x 3 tap)

    Video Output

    Camera Link, Base/Medium/Full configuration, (8/10bit)

    Power

    -

    - Input Voltage

    +12 Vdc ~ +24 Vdc

    - Consumption

    6.0 W (TYP)

    Communication

    RS232C via Camera Link connecter

    Functions

    Anti-blooming, High-speed exposure control, External trigger control, Flat Field Correction(FFC)

    Fill Factor

    100%

    Responsivity

    77 DN / nj / cm2

      Mechanical



    Dimensions

    56 (W) x 58 (H) x 26.5 (D) mm

    Lens Mount

    F Mount

    Weight

    About 198g

    Interface Connector

    Camera Link connector (MDR) x 2; Power connector (6pin connector)

    Operating Temperature

    0 ~ 40°C

      Environmental



    RoHS

    RoHS Compliant

    Operating Temperature

    0 ~ 40°C

    Storage Temperature

    -30 ~ 65°C
