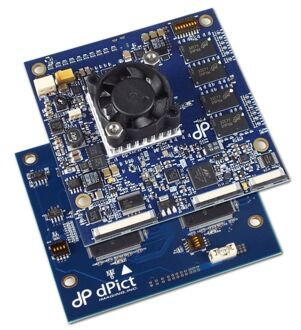

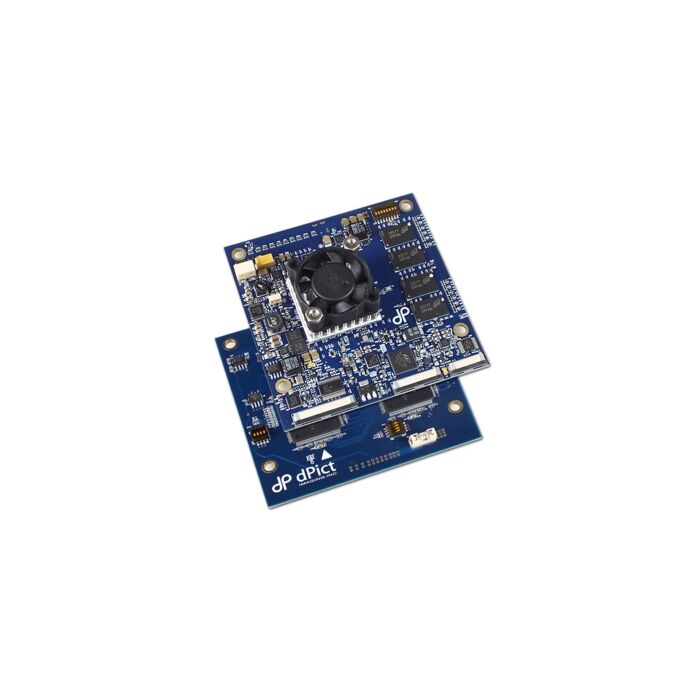

Dpict nVision GX3 Frame Grabber

Quick Overview

nVision from dPict Imaging is a multi-format intelligent video acquisition device for mobile or remote capture.

nVision digitizes and transmits high-quality, full-resolution video over TCP/IP networks in real time. nVision’s compact size allows it to be installed anywhere a network connection exists. Designed with a powerful TI DM642 video processor, nVision is perfect for video analysis applications.


  • Integrated Texas Instruments® DM8168 900 MHz DSP for video processing
  • 1.2 GHz ARM® Cortex™ -A8 with Linux Operating System
  • Two independent video input channels
  • HDTV input support up to 1080p60
  • H.264 video encoding and decoding
  • Simultaneous processing of each video stream
  • Audio recording and playback support
  • 10/100/1000 Ethernet
  • 1 GB Flash Memory
  • 2 GB DDR3 Frame Buffer for reliable image transfer
  • SD memory card interface
  • HDMI display output support up to 1080p60
  • General purpose I/O triggers
  • Dual UART serial communications
  • USB 2.0 interface
  • Compact form factor and low power consumption
  • Optional nVision GX3 I/O boards for easy access to all video, communications, and trigger I/O
  • Compatible with dPict Imaging dVeloper Foundation SDK
  • Specifications
    Network Ethernet 10/100/1000 Base-T
    Video Acquisition
    • Dual asynchronous video channels
    • HDTV standard support up to 1080p60
    • Up to 165 MHz acquisition rate
    • 16 LVDS input pairs
    • Sony FCB-EV Block camera integration
    Video Processing
    • Dual simultaneous video processing channels
    • H.264 encoding and decoding up to 1080p60
    • Simultaneous viewing and transfer of compressed or uncompressed video
    • Fully independent configuration of frame rate, resolution, and compression parameters
    • 2 GB DDR2 frame buffer for reliable transfer
    • Smooth video scaling to randomly-sized windows
    • Hardware overlay of graphics over video
    • RGB 32/24/16/15/8 and YUV 4:2:2 pixel formats
    HDMI Output
    • HDMI 1.3a-compliant transmitter
    • Supports display outputs up to 1080p60
    I/O Control
    • General-purpose I/O triggers
    • USB 2.0 interface
    • 1 GB flash memory
    • Dual UART serial interface
    • SD memory card interface
    Audio Recording and Playback
    • Real-time recording of analog or digital audio
    • HDMI and Line Level In/Out
    Physical and Environmental
    • 3.432" (length) x 3.432" (width)
    • Samtec 180 Position Basic Blade & Beam Socket
    • Samtec 60 Position Basic Blade & Beam Socket
    • 20-, 30-, and 40-position zero insertion force flat flex cable connectors
    • Operating temperature: 0° C to 70° C
    • Relative humidity: 5% up to 95% non-condensing
    nVision GX3 API and Developers Kit
    • Complete with documentation, drivers, and samples
    • Optional nVision GX3 Developer's Kit comes complete with API, Audio/Video and Data I/O Boards
    Ordering Information
    • nVisionGX3: 12023-001
    • Sony FCB-EV Block Video Module: 12031-001
    • nVision GX3 API: 90021
    • nVision GX3 Audio/Video I/O Board: 99505
    • nVision GX3 Data I/O Interface Board: 99506
    • nVision GX3 Developers Kit: 90020
