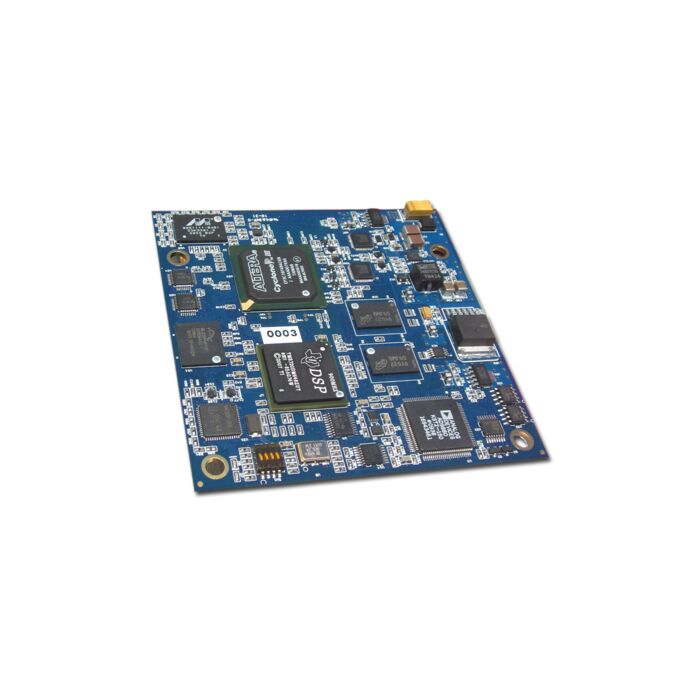

dPict nVision GX2 HD Video Network Device

Quick Overview

Digitizes and transmits high-quality, full-resolution video over TCP/IP networks in real time.
Overview

Features:

  • Integrated Texas Instruments DM648 900 MHz DSP for video processing
  • SD and HDTV video capture support
  • HDTV input support up to 1080p
  • HDMI or DVI input support
  • Square pixel or ITU.BT.601 standard definition digitizing formats
  • Dual simultaneous composite video inputs
  • 10/100/1000 Ethernet
  • 256 MB DDR2 Frame Buffer for reliable image transfer
  • On-board FLASH memory for calibration settings configuration, or web interface
  • Dual composite video outputs
  • HDTV YPrPb and VGA RGB output
  • General purpose I/O triggers
  • Dual UART serial communications
  • SD memory interface
  • Optional nVision I/O carrier board for easy access to all video, communications, and trigger I/O
  • nVision API supports Texas Instruments Code Composer Studio for embedded application development.

  • Applications:

  • Video Server
  • Mobile Video Capture
  • Ethernet Frame Grabber
  • Mobile Microscopy Station
  • Factory Floor Process Engineering
  • License Plate Recognition
  • Video Analytics
  • Object Tracking
  • Specifications
    Network
    • Ethernet 10/100/1000 Base-T
    HD Video Acuisition
    • HDTV standard support up to 1080p
    • DVI and HDMI input support
    • RGB or YPrPb analog input support
    • Up to 150 MHz acquisition rate
    • 16 LVDS input pairs
    SD Video Acuisition
    • Dual composite video inputs
    • NTSC (J, M, 4.43), PAL (B, D, G, H, I, M, N, Nc, 60), and SECAM (B, D, G, K, K1, L) support
    • Color or monochrome support
    • Square pixel and ITU.BT.601 resolution support
    • Software programmable control of gain, offset, hue, saturation, and sharpness
    • 32 MB Flash memory for storing configuration and calibration settings
    Video Acuisition
    • Real-time, full-resolution video acquisition channel
    • 256 MB DDR2 frame buffer for reliable transfer
    • Smooth interpolated video scaling to randomly sized windows
    • Hardware overlay of graphics over video
    • RGB 32/24/16/15/8 and YUV 4:2:2 pixel formats
    Video Output
    • Two Composite video outputs with OSD
    • HDTV YPrPb output
    • VGA RGB output
    I/O Control
    • 7 General-purpose I/O triggers
    • Triggers programmable as input or output
    • Dual UART serial interface
    • SD memory interface
    Physical and Environmental
    • 3.432" (length) x 3.432" (width)
    • Samtec 0.4mm Pitch SMT Micro Connectors
    • Optional nVision I/O Carrier board - 6 BNC, DVI, HDMI, 2 x DB-9 male, RJ-45 Ethernet socket, SD interface, and 2.5 mm power plug
    • Operating temperature: 0° C to 70° C
    • Relative humidity: 5% up to 95% non-condensing
    Ordering Information
    • nVision GX2: 10533-001
    • nVision GX2 Developers Kit: 90013
    • nVision GX2 I/O Carrier Board: 99504
    • nVision GX2 Power Supply: 99101
    • dVeloper Foundation SDK for nVision GX2: 90014
