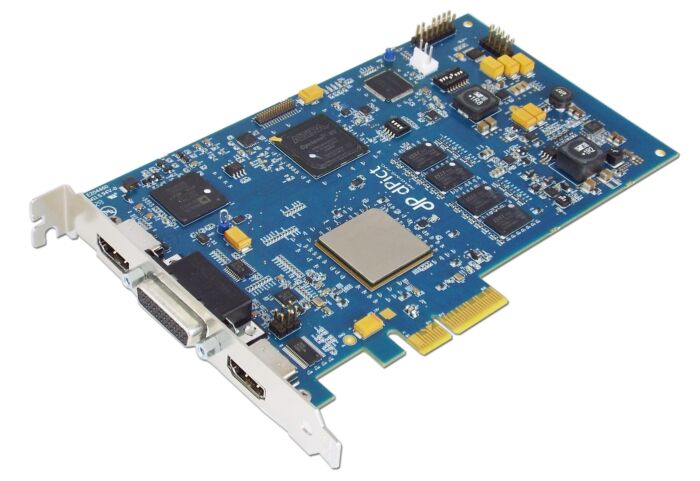

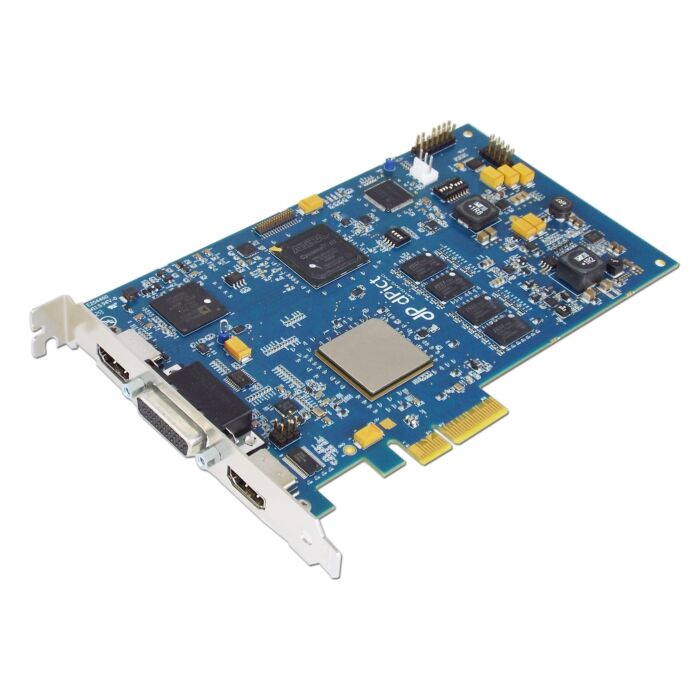

Dpict Nexeon HD I PCI Express Video Capture Boards

Quick Overview

High-definition acquisition board with onboard video compression
Overview

Nexeon HDI is a full-featured video streaming and capture board for standard and high-definition video inputs. Nexeon HDI supports analog RGB/YCrCb component, S-Video and composite analog inputs as well as digital DVI/HDMI inputs up to 1080p60. Nexeon HDI comes equipped with an integrated Video Processor and plenty of memory for fast and reliable video data transfer to system or display memory.

Features:

  • PCI Express 2.0 interface
  • Bus-mastering video acquisition
  • RGB/YCrCb component, S-Video or Composite video input support
  • HDTV support up to 1080p60
  • DVI and HDMI input support
  • Real-time hardware video CODEC
  • H.264, MPEG 4, and MJPEG compression
  • Simultaneous real-time transfer of video to system memory
  • TI DM8168 Digital Media Processor
  • 1 GB SDRAM Frame Buffer
  • Acquisition rates up to 165 MHz
  • Video scaling to arbitrarily sized windows
  • RGB, YUV, or monochrome pixel formats
  • Progressive scan video support
  • General purpose I/O triggers
  • Packed or planar transfers
  • Area of interest transfers to system and on-board memory
  • On-board micro-controller for robust timing and capture control
  • HDMI video output
  • 12-volt DC fused output for camera supply
  • Real-time image processing
  • Windows® 10, 8, and 7 drivers
  • Includes dPiction Windows®-based video capture application
  • Optional SDK with sample applications
  • Specifications
    Form Factor
    • PCI Express 2.0 x4 connector
    • Up to 1 GB/sec data transfer
    Video Inputs
    • Standard or high-definition
    • RGB/YCrCb component, S-Video and composite
    • VGA or HDMI input support
    HD Video Aquisition
    • Up to 165 MHz acquisition rates
    • Progressive scan video support
    • HDTV standard support up to 1080p60
    • Supports VGA display capture up to 1600x1200 @ 60 Hz

    SD Video Acquisition

    • NTSC (J, M, 4.43), PAL (B, D, G, H, I, M, N, Nc, 60), and SECAM (B, D, G, K, K1, L) support
    • High-quality 10-bit digitization
    • Square-pixel and CCIR-601 resolution support

    Video Processing and Formatting

    • Real time onboard video CODEC
    • H.264, MPEG4, and MJPEG compression and playback
    • Simultaneous viewing and capture of standard definition and HDTV video inputs
    • Video scaling to randomly-sized windows
    • Simultaneous transfer of compressed and uncompressed video
    • 1 GB DDR3 SDRAM frame buffer
    • RGB 32/24/16/15/8, YUV 4:4:4 and YUV 4:2:2 pixel formats
    • Area of interest transfers to on-board and system memory
    • On-board image processing

    I/O Triggers and Control

    • 4 general-purpose I/O triggers programmable between input and output
    • Automatic display mode and sync detection

    Audio Recording and Playback

    • Real-time recording of analog or digital audio
    • HDMI and Line Level In/Out

    Physical and Environmental

    • 6.875" (length) x 4.20" (height)
    • HD-26 Female I/O connector
    • 2 HDMI display connectors
    • Operating temperature: 0° C to 70° C
    • Relative humidity: 5% up to 95% non-condensing

    Available Software Developers Kit

    • Compatible with dVeloper Foundation SDK
    • Supports 32/64-bit Windows® 10, 8 and 7
    • Extensive documentation and sample code
    • dPiction Windows®-based capture application
    • Sample applications with source code

    Ordering Information

    • Nexeon HDI PCI Express: 11062-001
    • dVeloper Nexeon HD SDK: 90018
