dPict 11021-002 Nexeon CL 64MB PCI

Quick Overview

Nexeon CL is a low-cost, full-featured video capture board for digital camera solutions with the Camera Link standard.


Replaced the product(s) :
- FlashBus DX-CL

Availability: In stock

More Views

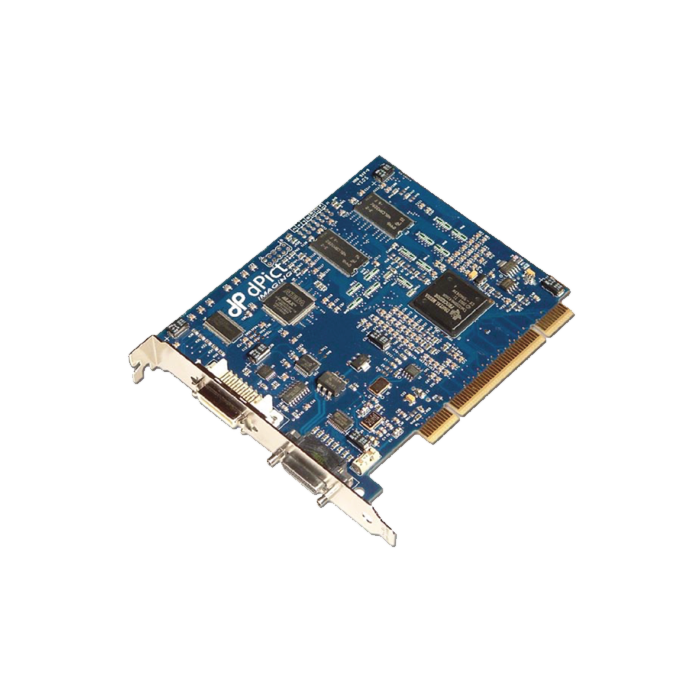

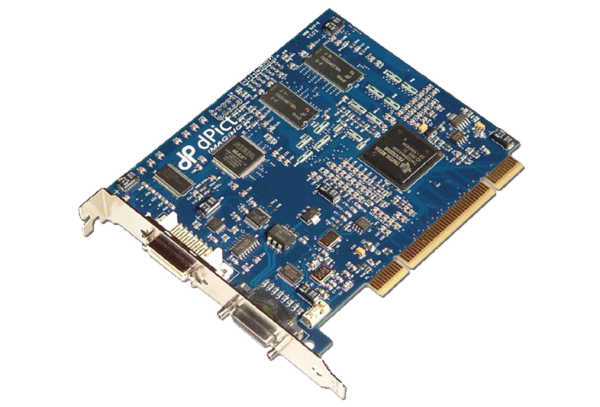

dPict 11021-002 Nexeon CL 64MB PCI .

  • Model: /3/7/3728_08e68.png

Additional Information

Overview

Nexeon CL is a low-cost, full-featured video capture board for digital camera solutions with the Camera Link standard. Nexeon CL supports the Base confi guration of the Camera Link standard and works with all area and line scan Camera LinkĀ® cameras up to 80 MHz. Nexeon CL comes equipped with an on-board DSP and plenty of memory for fast and reliable video data transfer to system or display memory.

Features

  • PCI or PCI Express interface
  • Bus-mastering video acquisition
  • Simultaneous real-time transfer of video to system memory, overlay, or display memory
  • TI DM642 Digital Media Processor
  • 32 MB SDRAM Frame Buffer
  • Supports Camera Link® standard at Base
    confi guration
  • Supports area-scan or line-scan cameras
  • Acquisition rates up to 80 MHz
  • Supports 8/10/12/14/16/24 bit cameras
  • Supports Bayer Mode cameras
  • Smooth interpolated video scaling to arbitrarily
    sized windows
  • RGB, YUV, or monochrome pixel formats
  • General purpose I/O triggers
  • Programmable LUT
  • Packed or planar transfers
  • Area of interest transfers to system and onboard
    memory
  • On-board microcontroller for robust timing
    and capture control
  • RS-232 serial input and output
  • Camera integration support
  • 12-volt DC switched output for camera supply
  • Real-time image processing
  • Windows® 2000, and XP drivers
  • Windows®-based video capture application
  • DirectShow and TWAIN support
  • Optional SDK with sample applications
Specifications

Form Factor • PCI or PCI Express form factor
• Scatter gather DMA support
• PCI 2.2 compliant, 5V and 3.3V universal slot
• PCI Express x1 connector
Camera Inputs • Camera Link® digital camera input
• RGB or monochrome support
• Area scan or line scan camera support
• Bayer camera support
Video Acquisition • Supports base Camera Link® specification
• 8/10/12/14/16/24-bit camera support
• Up to 80 MHz acquisition rates
• Software digital control of gain and offset
• EEPROM for storing confi guration and calibration settings
Video Formatting • Smooth interpolated scaling to randomly-sized windows
• Bus-mastering video transfers to system memory, overlay, or display memory    simultaneously
• 64 MB SDRAM frame buffer
• RGB 32/24/16/15/8 and YUV 4:2:2 pixel formats
• Area of interest transfers to on-board and system memory
• Extensive interrupt control for robust capture
• On-board image processing
Camera Control • On-board microprocessor for reliable capture and control
• RS-232 serial output and input
• Camera exposure control
• Switched and fused camera power
I/O Triggers • 4 LVDS differential pairs
• 8 general-purpose I/O triggers
• Programmable between input and output triggers
Physical and Environmental • 5.00" (length) x 4.20" (height)
• Operating temperature: 0° C to 55° C
• Relative humidity: 5% up to 95% non-condensing
• FCC and CE approved
Available Software Developers Kit • Compatible with dVeloper Foundation SDK
• Windows® 2000 and XP DLLs
• DirectDraw and DirectShow support
• TWAIN support
• Extensive documentation and sample code
• dPiction Windows®-based capture application
• Sample applications with source code
Product Videos N/A
Accessories N/A
