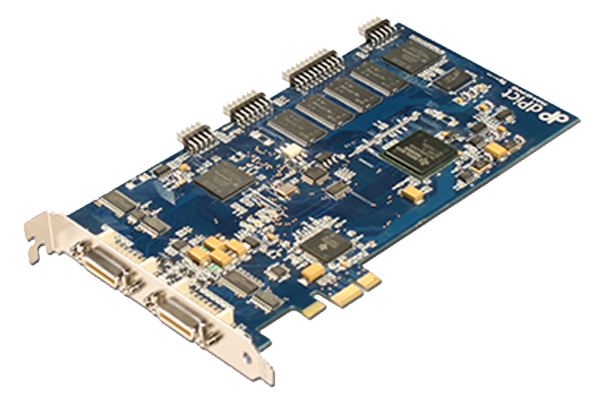

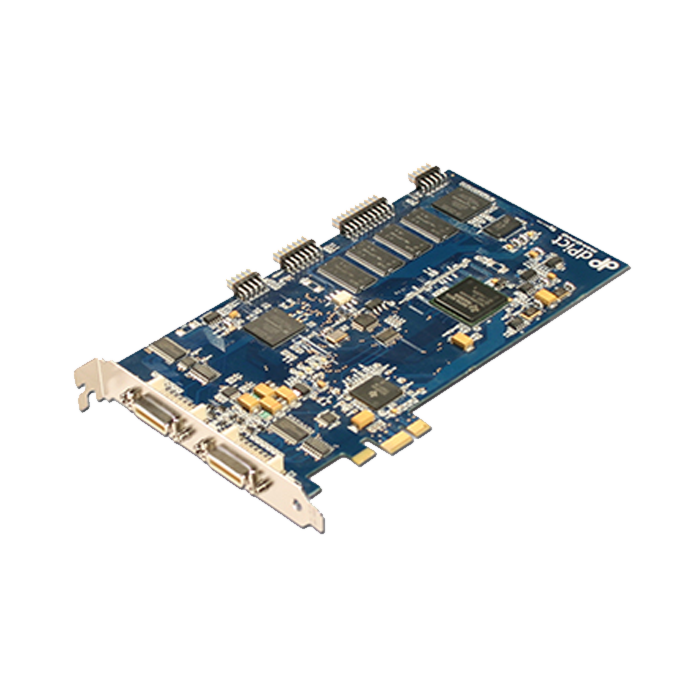

dPict 11032-001 Nexeon CL Duo 64MB PCI Express

Quick Overview

Dual-channel PCI Express video frame grabber for high-resolution Camera Link video inputs


Replaced the product(s) :
- FlashBus DX-CL2

Availability: In stock

More Views

Additional Information

Overview

Nexeon CL Duo is a full-featured, dual-channel PCI Express video frame grabber for high-resolution Camera Link video inputs. The Nexeon CL has two independent Camera Link channels for simultaneous transfer from two BASE Camera Link camera inputs or a single MEDIUM Camera Link camera input. Nexeon CL Duo comes equipped with an on-board DSP and plenty of memory for fast and reliable video data transfer to system or display memory.

Features

  • 1x PCI Express Form Factor
  • Dual Independent Camera Link Channels <
  • Supports simultaneous transfer from two BASE or a single MEDIUM camera
  • On-board TI DM642 for Robust Performance
  • Acquisition Rates Up to 85 MHz
  • Auto camera acquisition for automatic camera configuration
  • Switchable PoCL compatible power outputs with SafePower
  • Supports Packed or Planar Transfers
  • Supports Bayer Mode Cameras
  • Windows 2000, XP, and Vista Support
Specifications

Form Factor
  • PCI Express form factor
  • PCI Express x1 slot
Camera Input
  • Camera Link digital camera input
  • RGB or Monochrome support
  • Area scan or line scan camera support
  • Bayer camera support
Video Acquisition
  • Dual independent channels
  • Supports two simultaneous BASE cameras or single MEDIUM camera
  • 8-, 10-, 12-, 14-, 16-, and 24-bit depth camera support per channel or up to 48 bits in MEDIUM configuration
  • Up to 85 MHz acquisition rates
  • Programmable digital control of gain and offset
  • Non-destructive overlay support
  • On-board EEPROM for calibration settings
Camera Control
  • Automatic camera synchronization
  • On-board DSP for robust capture and control
  • RS-232 serial interface per channel
  • Camera exposure control
  • Switchable PoCL compatible power outputs with SafePower
Video Formatting
  • Smooth interpolated scaling to randomly sized windows
  • Bus-mastered video transfers to system or display memory
  • Up to 64 MB on-board frame buffer
  • Area of interest transfers to system memory
  • Configurable LUT
  • RGB 32/24/16/15/8 and YUV 4:2:2 pixel formats
  • Extensive interrupt control for robust capture
I/O Triggers
  • 4 LVDS differential pairs
  • 8 General Purpose TTL I/O triggers
  • Programmable between input and output triggers
Physical and Environmental
  • 7.38" (length) x 4.20" (height)
  • Two MDR 26-pin Camera Link connector
  • Auxillary trigger header connectors
Available SDK
  • Compatible with dVeloper SDK
  • Windows 2000, XP, and Vista support
  • DirectShow support
Product Videos N/A
Accessories N/A
