Dpict 11042-001 Nexeon HD PCI Express

Quick Overview

Nexeon HD is a full-featured video streaming and capture board for standard and high-defi nition video inputs. Nexeon HD supports analog RGB/YCrCb component, S-Video and composite analog inputs as well as digital DVI/HDMI inputs. Nexeon comes equipped with an integrated
Video Processor and plenty of memory for fast and reliable video data transfer to system or display memory.

For pricing and technical support:
888-687-6877
Click here to find your Sales Rep

Click here to submit Product Inquiry

Availability: In stock

More Views

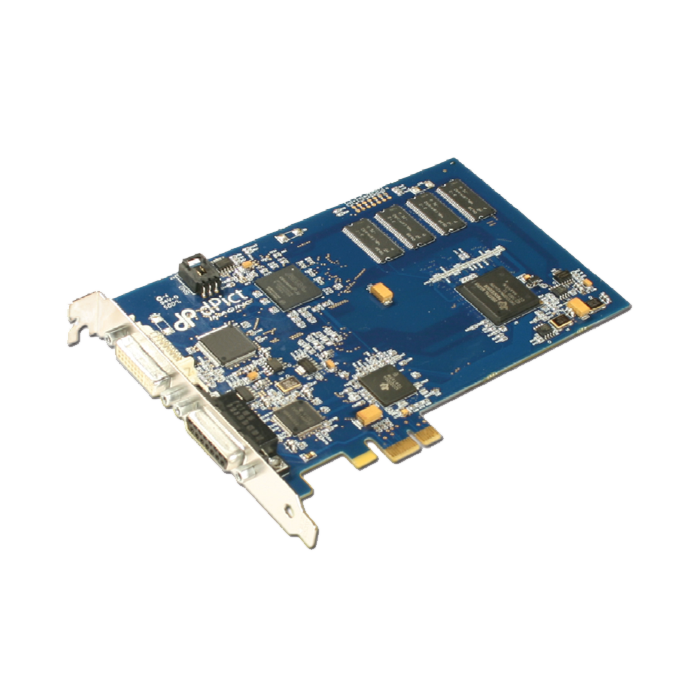

Dpict 11042-001 Nexeon HD PCI Express .

  • Model: /3/7/3731_0f3ff.png

Additional Information

Overview

Nexeon HD is a full-featured video streaming and capture board for standard and high-defi nition video inputs. Nexeon HD supports analog RGB/YCrCb component, S-Video and composite analog inputs as well as digital DVI/HDMI inputs. Nexeon comes equipped with an integrated
Video Processor and plenty of memory for fast and reliable video data transfer to system or display memory.

Features

  • PCI Express interface
  • Bus-mastering video acquisition
  • RGB/YCrCb component, S-Video or Composite video input support
  • HDTV support up to 1080i
  • DVI and HDMI input support
  • Simultaneous real-time transfer of video to system memory, overlay, or display memory
  • TI DM642 Digital Media Processor
  • 64 MB SDRAM Frame Buffer
  • Acquisition rates up to 150 MHz
  • Smooth interpolated video scaling to arbitrarily sized windows
  • RGB, YUV, or monochrome pixel formats
  • Progressive scan video support
  • General purpose I/O triggers
  • Packed or planar transfers
  • Area of interest transfers to system and onboard memory
  • On-board microcontroller for robust timing and capture control
  • Programmable LUT
  • 12-volt DC fused output for camera supply
  • Real-time image processing
  • Windows® 2000, and XP drivers
  • Includes dPiction Windows®-based video capture application
  • DirectShow and TWAIN support
  • Optional SDK with sample applications
Specifications

Form Factor • PCI Express x1 connector
• Scatter gather DMA support
Video Inputs • Standard or high-defi nition
• RGB/YCrCb component, S-Video, and composite
• DVI or HDMI input support
HD Video Acquisition • Up to 150 MHz acquisition rates
• Progressive scan video support
• HDTV standard support up to 1080i
• Supports VGA display capture up to 1280x1024 @ 75 Hz
SD Video Acquisition • NTSC (J, M, 4.43), PAL (B, D, G, H, I, M, N, Nc, 60), and SECAM (B, D, G, K, K1, L) support
• High-quality 10-bit digitization
• Square-pixel and CCIR-601 resolution support
Video Formatting • Smooth interpolated scaling to randomly-sized windows
• Bus-mastering video transfers to system memory, overlay, or display memory simultaneously
• 64 MB SDRAM frame buffer
• RGB 32/24/16/15/8, YUV 4:4:4 and YUV 4:2:2 pixel formats
• Area of interest transfers to on-board and system memory
• Extensive interrupt control for robust capture
• On-board image processing
I/O Triggers and Control • 4 general-purpose I/O triggers
• Programmable between input and output triggers
• Automatic display mode and sync detection
• Fused 12V DC output
Physical and Environmental • 5.00" (length) x 4.20" (height)
• DB-15 Female I/O connector
• DVI-I Female display connector
• Operating temperature: 0° C to 55° C
• Relative humidity: 5% up to 95% non-condensing
Available Software Developers Kit • Compatible with dVeloper Foundation SDK
• Windows® 2000 and XP DLLs
• DirectDraw and DirectShow support
• TWAIN support
• Extensive documentation and sample code
• dPiction Windows®-based capture application
• Sample applications with source code
Product Videos No
Accessories No

Nexeon HD is a full-featured video streaming and capture board for standard and high-defi nition video inputs. Nexeon HD supports analog RGB/YCrCb component, S-Video and composite analog inputs as well as digital DVI/HDMI inputs. Nexeon comes equipped with an integrated
Video Processor and plenty of memory for fast and reliable video data transfer to system or display memory.

Features

  • PCI Express interface
  • Bus-mastering video acquisition
  • RGB/YCrCb component, S-Video or Composite video input support
  • HDTV support up to 1080i
  • DVI and HDMI input support
  • Simultaneous real-time transfer of video to system memory, overlay, or display memory
  • TI DM642 Digital Media Processor
  • 64 MB SDRAM Frame Buffer
  • Acquisition rates up to 150 MHz
  • Smooth interpolated video scaling to arbitrarily sized windows
  • RGB, YUV, or monochrome pixel formats
  • Progressive scan video support
  • General purpose I/O triggers
  • Packed or planar transfers
  • Area of interest transfers to system and onboard memory
  • On-board microcontroller for robust timing and capture control
  • Programmable LUT
  • 12-volt DC fused output for camera supply
  • Real-time image processing
  • Windows® 2000, and XP drivers
  • Includes dPiction Windows®-based video capture application
  • DirectShow and TWAIN support
  • Optional SDK with sample applications

Form Factor • PCI Express x1 connector
• Scatter gather DMA support
Video Inputs • Standard or high-defi nition
• RGB/YCrCb component, S-Video, and composite
• DVI or HDMI input support
HD Video Acquisition • Up to 150 MHz acquisition rates
• Progressive scan video support
• HDTV standard support up to 1080i
• Supports VGA display capture up to 1280x1024 @ 75 Hz
SD Video Acquisition • NTSC (J, M, 4.43), PAL (B, D, G, H, I, M, N, Nc, 60), and SECAM (B, D, G, K, K1, L) support
• High-quality 10-bit digitization
• Square-pixel and CCIR-601 resolution support
Video Formatting • Smooth interpolated scaling to randomly-sized windows
• Bus-mastering video transfers to system memory, overlay, or display memory simultaneously
• 64 MB SDRAM frame buffer
• RGB 32/24/16/15/8, YUV 4:4:4 and YUV 4:2:2 pixel formats
• Area of interest transfers to on-board and system memory
• Extensive interrupt control for robust capture
• On-board image processing
I/O Triggers and Control • 4 general-purpose I/O triggers
• Programmable between input and output triggers
• Automatic display mode and sync detection
• Fused 12V DC output
Physical and Environmental • 5.00" (length) x 4.20" (height)
• DB-15 Female I/O connector
• DVI-I Female display connector
• Operating temperature: 0° C to 55° C
• Relative humidity: 5% up to 95% non-condensing
Available Software Developers Kit • Compatible with dVeloper Foundation SDK
• Windows® 2000 and XP DLLs
• DirectDraw and DirectShow support
• TWAIN support
• Extensive documentation and sample code
• dPiction Windows®-based capture application
• Sample applications with source code
