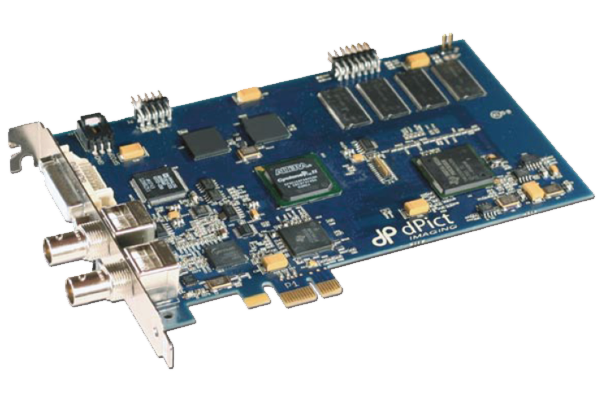

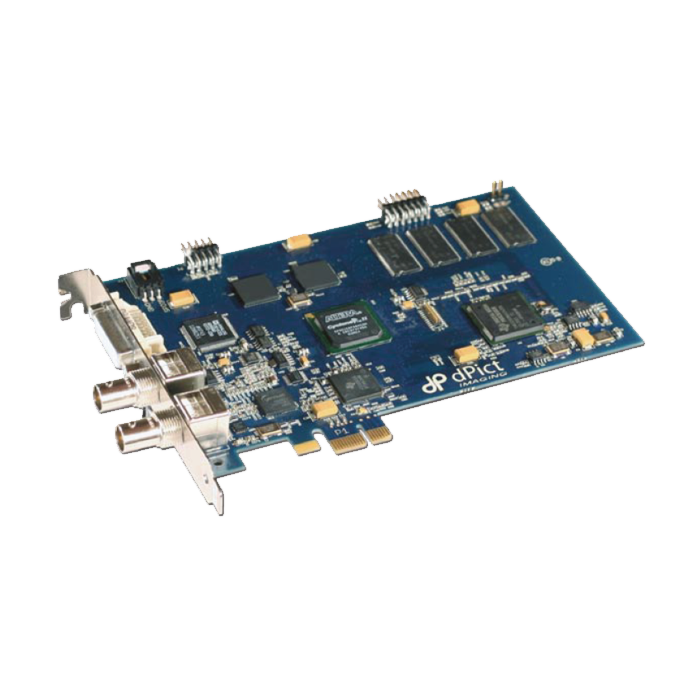

Dpict 11052-001 Nexeon HD Xtra PCI Express

Quick Overview

Nexeon HD Xtra is a full-featured video frame grabber for high-definition video display and capture. It supports viewing and capture from high-definition video inputs from SDI, HDTV and VGA display sources. Nexeon HD Xtras has a flexible input interface complete with an HDMI compatible receiver and supports both analog and digital DVI/HDMI standards.

Availability: In stock

More Views

Additional Information

Overview

Nexeon HD Xtra is a full-featured video frame grabber for high-definition video display and capture. It supports viewing and capture from high-definition video inputs from SDI, HDTV and VGA display sources. Nexeon HD Xtras has a flexible input interface complete with an HDMI compatible receiver and supports both analog and digital DVI/HDMI standards.

Features

  • PCI Express Interface
  • Real-Time Bus-Mastering Video Transfer
  • On-board TI DM642 DSP for Robust Performance
  • 3G-SDI Display and Capture Input Support
  • Real-time HDTV Display and Capture
  • HDMI Input Support
  • Display and Capture Support for VGA inputs
  • General-Purpose I/O Triggers
  • Windows 2000, XP, and Vista Support
  • Free dPiction Capture Application
Specifications

Form Factor • PCI Express x1 connector
• Scatter gather DMA support
Video Inputs • Serial Digital Input (SDI)
• RGB/YPrPb component HDTV
• HDMI input support
HDTV Video Acquisition • 3G-SDI data rate support up to 2.97 Gb/sec
• HDTV acquisition rates up to 150 MHz
• Progressive scan video support
HDTV Standards Support • SMPTE 259M: 360 Mb/sec with resolutions up to 960x486 (SDI)
• SMPTE 292M: 1.485 Gb/sec with resolutions up to 1080i (HD-SDI)
• SMPTE 424M: 2.97 Gb/sec with resolutions up to 1080p (3G-SDI)
• HDTV standard up to 1080i (component or HDMI digital)
• Supports VGA display capture up to 1280x1024 @ 75 Hz
Video Formatting • Smooth interpolated scaling to randomly-sized windows
• Bus-mastering video transfers to system memory, overlay, or display memory    simultaneously
• 64 MB SDRAM frame buffer
• RGB 32/24/16/15/8, YUV 4:4:4 and YUV 4:2:2 pixel formats
• Area of interest transfers to on-board and system memory
• Extensive interrupt control for robust capture
• On-board image processing
I/O Triggers and Control • 4 general-purpose I/O triggers
• Programmable between input and output triggers
• SDI loopthrough output
• Automatic digital video display mode detection
Physical and Environmental • 6.00" (length) x 4.20" (height)
• 2 BNC connectors
• DVI-I Female display connector
• Operating temperature: 0° C to 70° C
• Relative humidity: 5% up to 95% non-condensing
Available Software Developers Kit • Compatible with dVeloper Foundation SDK
• Windows® 2000, XP, and Vista DLLs
• DirectDraw and DirectShow support
• Extensive documentation and sample code
• dPiction Windows®-based capture application
• Sample applications with source code
Product Videos N/A

Nexeon HD Xtra is a full-featured video frame grabber for high-definition video display and capture. It supports viewing and capture from high-definition video inputs from SDI, HDTV and VGA display sources. Nexeon HD Xtras has a flexible input interface complete with an HDMI compatible receiver and supports both analog and digital DVI/HDMI standards.

Features

  • PCI Express Interface
  • Real-Time Bus-Mastering Video Transfer
  • On-board TI DM642 DSP for Robust Performance
  • 3G-SDI Display and Capture Input Support
  • Real-time HDTV Display and Capture
  • HDMI Input Support
  • Display and Capture Support for VGA inputs
  • General-Purpose I/O Triggers
  • Windows 2000, XP, and Vista Support
  • Free dPiction Capture Application

Form Factor • PCI Express x1 connector
• Scatter gather DMA support
Video Inputs • Serial Digital Input (SDI)
• RGB/YPrPb component HDTV
• HDMI input support
HDTV Video Acquisition • 3G-SDI data rate support up to 2.97 Gb/sec
• HDTV acquisition rates up to 150 MHz
• Progressive scan video support
HDTV Standards Support • SMPTE 259M: 360 Mb/sec with resolutions up to 960x486 (SDI)
• SMPTE 292M: 1.485 Gb/sec with resolutions up to 1080i (HD-SDI)
• SMPTE 424M: 2.97 Gb/sec with resolutions up to 1080p (3G-SDI)
• HDTV standard up to 1080i (component or HDMI digital)
• Supports VGA display capture up to 1280x1024 @ 75 Hz
Video Formatting • Smooth interpolated scaling to randomly-sized windows
• Bus-mastering video transfers to system memory, overlay, or display memory    simultaneously
• 64 MB SDRAM frame buffer
• RGB 32/24/16/15/8, YUV 4:4:4 and YUV 4:2:2 pixel formats
• Area of interest transfers to on-board and system memory
• Extensive interrupt control for robust capture
• On-board image processing
I/O Triggers and Control • 4 general-purpose I/O triggers
• Programmable between input and output triggers
• SDI loopthrough output
• Automatic digital video display mode detection
Physical and Environmental • 6.00" (length) x 4.20" (height)
• 2 BNC connectors
• DVI-I Female display connector
• Operating temperature: 0° C to 70° C
• Relative humidity: 5% up to 95% non-condensing
Available Software Developers Kit • Compatible with dVeloper Foundation SDK
• Windows® 2000, XP, and Vista DLLs
• DirectDraw and DirectShow support
• Extensive documentation and sample code
• dPiction Windows®-based capture application
• Sample applications with source code
