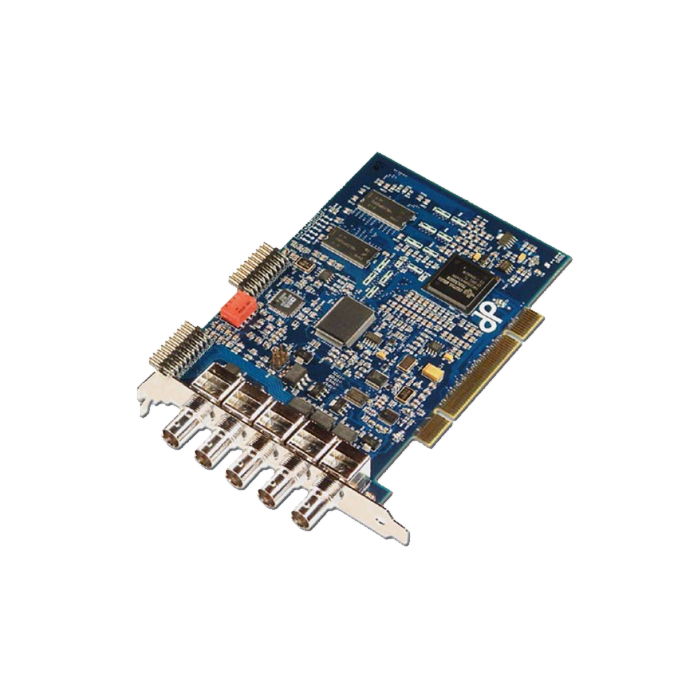

dPict 10021-001 Aexeon Quattro PCI Frame Grabber

Quick Overview

64MB PCI video acquisition frame grabber
Overview

Aexeon Quattro is a low-cost, real-time video acquisition and compression board for applications where multiple video streams are needed. Available in either PCI or PCI Express formats, Aexeon Quattro incorporates a digital media processor and on-board frame buffer for reliable capture for the most demanding application. Aexeon Quattro contains four independent full-resolution video channels capable of simultaneous streaming of real-time video to system memory or display. Aexeon Quattro also comes equipped with all the necessary I/O control to make application development easy.

Features:

  • PCI or PCI Express formats
  • Bus-mastering video acquisition
  • Simultaneous viewing and acquisition of four real-time video streams
  • 120 frames/sec viewing and capture
  • Simultaneous real-time transfer of video to system memory, overlay, or display memory
  • On-board JPEG compression
  • TI DM642 Digital Media Processor
  • 32 MB SDRAM Frame Buffer
  • Smooth interpolated video scaling to arbitrarily sized windows
  • Real-time multi-picture video output with OSD
  • CCIR and square pixel capture resolution
  • NTSC and PAL video formats
  • Multiple board installation support
  • Area of interest transfers to/from system and on-board memory
  • On-board micro-controller for robust timing and capture control
  • RS-232 serial input and output
  • 8 General purpose I/O triggers
  • 4 relay output alarms
  • On-board watchdog timer
  • On-board motion detection
  • Real-time image processing
  • Windows® 2000, and XP drivers
  • Windows®-based video capture application
  • DirectShow and TWAIN support
  • Optional SDK with sample applications
  • Specifications
    Form Factor • PCI or PCI Express form factor
    • Scatter gather DMA support
    • PCI 2.2 compliant, 5V and 3,3V universal slot
    • PCI Express x1 connector
    Video Input and Digitization • 4 composite video inputs
    • NTSC (J, M, 4.43), PAL (B, D, G, H, I, M, N, Nc, 60), and SECAM (B, D, G, K, K1, L) support
    • Simultaneous color or monochrome support
    • Square pixel and ITU-601 resolution support
    • Software programmable control of gain, offset, hue, saturation, and sharpness
    • EEPROM for storing confi
    Video Acquisition • 4 real-time, full-resolution video acquisition channels
    • 120 frames/sec viewing and capture
    • Simultaneous viewing and transfer of 4 video inputs
    • Fully independent confi guration of frame rate, resolution, and compression parameters per channel
    • Smooth interpolated video scaling to randomly-sized windows
    • Bus-mastering video transfers to system memory, overlay, or display memory simultaneously.
    • Hardware overlay of graphics over video
    • RGB 32/24/16/15/8 and YUV 4:2:2 pixel formats
    • Area of interest transfers to on-board and system memory
    • 32 MB SDRAM frame buffer
    • Extensive interrupt control for robust capture
    Video Output • Composite video output with OSD
    • NTSC or PAL format
    • Real-time multi-picture (2x2) video output
    I/O Triggers • 8 programmable general-purpose I/O triggers
    • 4 solid-state relay output alarms
    I/O Control and Processing • On-board microcontroller for reliable capture and control
    • RS-232 serial interface
    • On-board watchdog timer
    • On-board motion or activity detection
    Physical and Environmental • 6.00" (length) x 4.20" (height)
    • Operating temperature: 0° C to 55° C
    • Relative humidity: 5% up to 95% non-condensing
    • FCC and CE approved
    Available Software Developers Kit • Compatible with dVeloper SDK
    • Windows® 2000 and XP DLLs
    • DirectDraw and DirectShow support
    • TWAIN support
    • Extensive documentation and sample code
    • dPiction Windows-based capture application
    • Sample applications with source code
