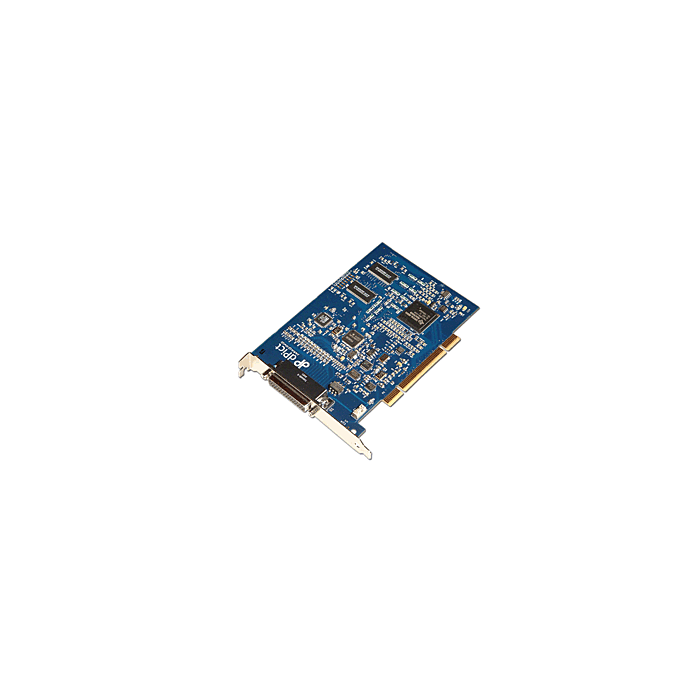

dPict 10011-001 Aexeon 32MB PCI Frame Grabber

Quick Overview

32MB PCI video acquisition frame grabber


Replaced the product(s) :
- FlashBus MV Plus
- FlashBus MV Pro
- FlashPoint 3D Plus
- FlashPoint 3D Pro

Availability: In stock

More Views

Additional Information

Overview

Aexeon is a low-cost, full-featured video frame grabber board for analog camera solutions. Aexeon accepts multiple composite, S-Video, or component video inputs in both NTSC and PAL formats and digitizes in both square pixel and CCIR-601 resolutions. With on-board processing, complete camera control, and video output, Aexeon is the perfect product for analog camera OEM solutions.

Features

  • PCI or PCI Express formats
  • Bus-mastering video acquisition
  • Simultaneous real-time transfer of video to system memory, overlay, or display memory
  • TI DM642 Digital Media Processor
  • 32 MB SDRAM Frame Buffer
  • High-quality 10-bit input digitization
  • Video scaling to arbitrarily sized windows
  • Up to 3 RGB or YPbPr, 4 S-Video, and 9 composite multiplexed video inputs
  • RGB, YPbPr, S-Video, and composite video output
  • CCIR and square pixel capture resolution
  • NTSC and PAL video formats
  • General purpose I/O triggers
  • Programmable LUT
  • Packed or planar transfers
  • Area of interest transfers to/from system and on-board memory
  • On-board microcontroller for robust timing and capture control
  • RS-232 serial input and output
  • Camera integration support
  • 12-volt DC switched output for camera supply
  • Real-time image processing
  • Windows® XP, Vista, and 7 drivers
  • Windows®-based video capture application
  • DirectShow and TWAIN support
  • Optional SDK with sample applications
Specifications

Form Factor • PCI or PCI Express form factor
• Scatter gather DMA support
• PCI 2.2 compliant, 5V and 3,3V universal slot
• PCI Express x1 connector
Video Inputs • Up to 9 composite or monochrome inputs
• Up to 4 S-Video inputs
• Up to 3 RGB or YPbPr component input
Video Digitization • NTSC (J, M, 4.43), PAL (B, D, G, H, I, M, N, Nc, 60), and SECAM (B, D, G, K, K1, L) support
• High-quality 10-bit digitization
• Square pixel and ITU-601 resolution support
• Software programmable control of gain, offset, hue, saturation, and sharpness
• EEPROM for storing confi guration and calibration settings
Video Acquisition • Smooth interpolated scaling to randomly-sized windows
• Bus-mastering video transfers to system memory, overlay, or display memory simultaneously.
• Hardware overlay of graphics over video
• RGB 32/24/16/15/8 and YUV 4:2:2 pixel formats
• Area of interest transfers to on-board and system memory
• 32 MB SDRAM frame buffer
• Extensive interrupt control for robust capture
• Real-time image fl ip, mirror, or rotate
Video Output • Composite, S-Video, and component video output
• Output video can be from video overlay, system memory, or display memory
I/O Control • 8 general purpose I/O triggers
• Triggers programmable as input or output
Camera Control • On-board microcontroller for reliable capture and control
• RS-232 serial interface
• Camera exposure control
• 12-volt fused DC output for camera power supply
Physical & Environmental • 5.00"(length) x 4.20" (height)
• Operating temperature: 0° C to 55° C
• Relative humidity: 5% up to 95% non-condensing
• FCC and CE approved
Available Software Developers Kit • Compatible with dVeloper SDK
• Windows® 2000 and XP DLLs
• DirectDraw and DirectShow support
• TWAIN support
• Extensive documentation and sample code
• dPiction Windows-based capture application
• Sample applications with source code
Product Videos N/A

Aexeon is a low-cost, full-featured video frame grabber board for analog camera solutions. Aexeon accepts multiple composite, S-Video, or component video inputs in both NTSC and PAL formats and digitizes in both square pixel and CCIR-601 resolutions. With on-board processing, complete camera control, and video output, Aexeon is the perfect product for analog camera OEM solutions.

Features

  • PCI or PCI Express formats
  • Bus-mastering video acquisition
  • Simultaneous real-time transfer of video to system memory, overlay, or display memory
  • TI DM642 Digital Media Processor
  • 32 MB SDRAM Frame Buffer
  • High-quality 10-bit input digitization
  • Video scaling to arbitrarily sized windows
  • Up to 3 RGB or YPbPr, 4 S-Video, and 9 composite multiplexed video inputs
  • RGB, YPbPr, S-Video, and composite video output
  • CCIR and square pixel capture resolution
  • NTSC and PAL video formats
  • General purpose I/O triggers
  • Programmable LUT
  • Packed or planar transfers
  • Area of interest transfers to/from system and on-board memory
  • On-board microcontroller for robust timing and capture control
  • RS-232 serial input and output
  • Camera integration support
  • 12-volt DC switched output for camera supply
  • Real-time image processing
  • Windows® XP, Vista, and 7 drivers
  • Windows®-based video capture application
  • DirectShow and TWAIN support
  • Optional SDK with sample applications

Form Factor • PCI or PCI Express form factor
• Scatter gather DMA support
• PCI 2.2 compliant, 5V and 3,3V universal slot
• PCI Express x1 connector
Video Inputs • Up to 9 composite or monochrome inputs
• Up to 4 S-Video inputs
• Up to 3 RGB or YPbPr component input
Video Digitization • NTSC (J, M, 4.43), PAL (B, D, G, H, I, M, N, Nc, 60), and SECAM (B, D, G, K, K1, L) support
• High-quality 10-bit digitization
• Square pixel and ITU-601 resolution support
• Software programmable control of gain, offset, hue, saturation, and sharpness
• EEPROM for storing confi guration and calibration settings
Video Acquisition • Smooth interpolated scaling to randomly-sized windows
• Bus-mastering video transfers to system memory, overlay, or display memory simultaneously.
• Hardware overlay of graphics over video
• RGB 32/24/16/15/8 and YUV 4:2:2 pixel formats
• Area of interest transfers to on-board and system memory
• 32 MB SDRAM frame buffer
• Extensive interrupt control for robust capture
• Real-time image fl ip, mirror, or rotate
Video Output • Composite, S-Video, and component video output
• Output video can be from video overlay, system memory, or display memory
I/O Control • 8 general purpose I/O triggers
• Triggers programmable as input or output
Camera Control • On-board microcontroller for reliable capture and control
• RS-232 serial interface
• Camera exposure control
• 12-volt fused DC output for camera power supply
Physical & Environmental • 5.00"(length) x 4.20" (height)
• Operating temperature: 0° C to 55° C
• Relative humidity: 5% up to 95% non-condensing
• FCC and CE approved
Available Software Developers Kit • Compatible with dVeloper SDK
• Windows® 2000 and XP DLLs
• DirectDraw and DirectShow support
• TWAIN support
• Extensive documentation and sample code
• dPiction Windows-based capture application
• Sample applications with source code
