Dpict 90016 Developer Foundation SDK for Quattro

Quick Overview

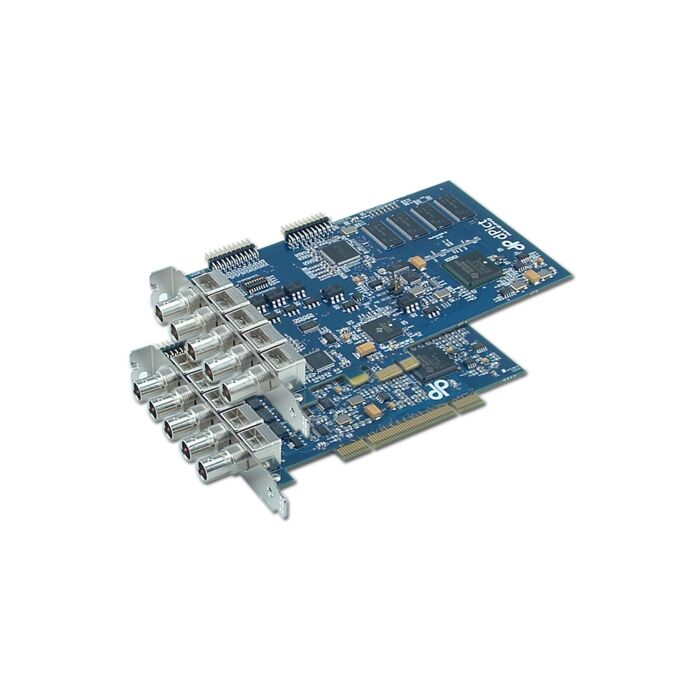

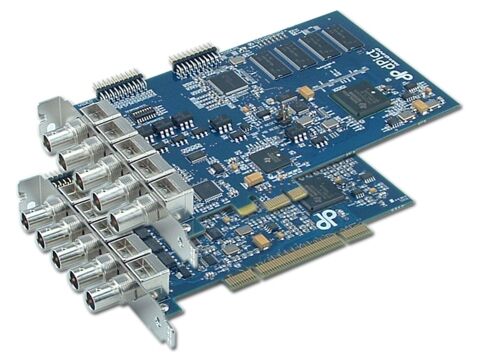

Aexeon Quattro is a low-cost, real-time video acquisition and compression board for applications where multiple video streams are needed. Available in either PCI or PCI Express formats, Aexeon Quattro incorporates a digital media processor and on-board frame buffer for reliable capture for the most demanding application.
Overview

Aexeon Quattro contains four independent full-resolution video channels capable of simultaneous streaming of real-time video to system memory or display. Aexeon Quattro also comes equipped with all the necessary I/O control to make application development easy.

Features:

  • PCI or PCI Express Formats
  • Bus-mastering video acquisition
  • Simultaneous viewing and acquisition of four real-time video streams
  • 120 frames/sec viewing and capture
  • Simultaneous real-time transfer of video to system or display memory
  • TI DM642 Digital Media Processor
  • On-board JPEG compression
  • Fully independent configuration of resolution, frame rate, and compression parameters per input
  • Video scaling to arbitrarily sized windows
  • Supports both NTSC or PAL Video Formats
  • 8 General Purpose I/O and 4 relay output triggers
  • Real-time multi-picture video output with overlay
  • Multiple board installation support
  • RS-232 serial input and output
  • Windows® XP, Vista, and 7 drivers
  • DirectShow and TWAIN support
  • Free dPiction Capture Application
  • Optional SDK with sample applications
  • Specifications
    Form Factor
    • PCI or PCI Express Formats
    • PCI 2.2 compliant, 5V and 3,3V universal slot
    • PCI Express x1 connector
    Video Inputs and Digitization
    • NTSC (J, M, 4.43), PAL (B, D, G, H, I, M, N, Nc, 60), SECAM (B, D, G, K, K1, L) camera support
    • Square pixel or ITU-601 resolution support
    • Simultaneous color or monochrome camera support
    • Software programmable control of gain, offset, hue, saturation, and sharpness
    • EEPROM for storing configuration and calibration settings
    Video Acquisition
    • 4 real-time independent video acquisition channels
    • 120 frames/sec viewing and capture
    • Simultaneous viewing and transfer of 4 video inputs
    • Bus-mastering video transfers to system or display memory simultaneously.
    • Fully independent configuration of frame rate, resolution, and compression parameters per channel
    • Smooth video scaling to randomly-sized windows
    • Hardware overlay of graphics over video
    • RGB 32/24/16/15/8 and YUV 4:2:2 pixel formats
    • Up to 64 MB SDRAM frame buffer
    • Extensive interrupt control for robust capture
    Video Output
    • Composite video output with OSD
    • NTSC or PAL format
    • Real-time multi-picture (2x2) video output
    I/O Triggers
    • 8 programmable general-purpose I/O triggers
    • 4 solid-state relay output alarms
    I/O Control and Processing
    • Microcontroller for reliable capture and control
    • RS-232 serial interface
    • On-board watchdog timer
    • On-board motion or activity detection
    Physical and Environmental
    • 6.00"(length) x 4.20" (height)
    • Operating temperature: 0° C to 70° C
    • Relative humidity: 5% up to 95% non-condensing
