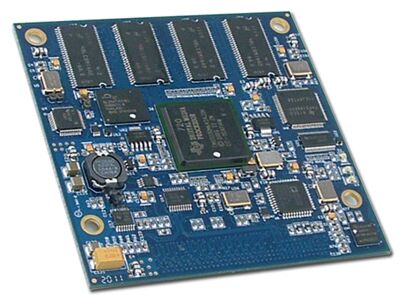

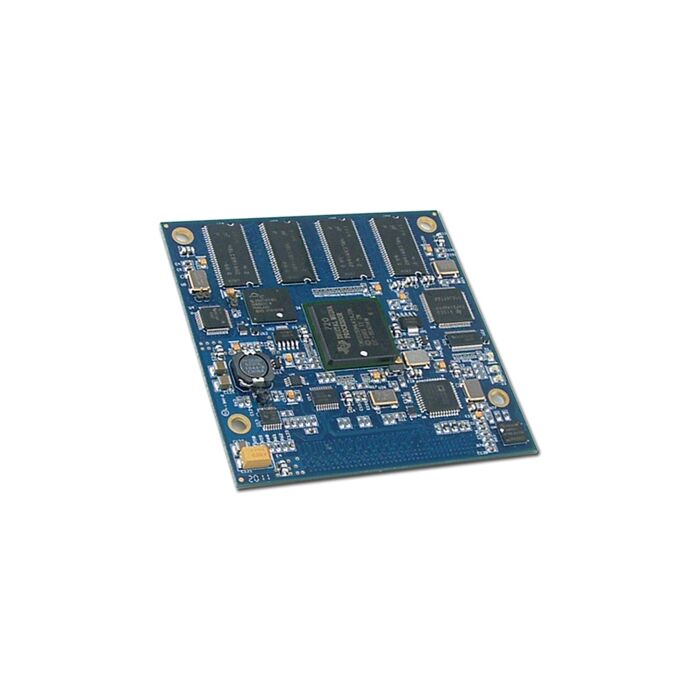

dPict 10503-001 nVision 64MB Ethernet Video Capture Card

Quick Overview

64MB multi-format intelligent video acquisition card for mobile or remote capture.
Overview

Features:

  • Integrated Texas Instruments DM642 720 MHz DSP
  • RGB/YPrPb, S-Video, or Composite video streaming and capture
  • High-quality 10-bit video digitizing
  • TI DM642 Digital Media Processor
  • Full-resolution viewing and capture in square pixel or ITU.BT.601 formats
  • Supports NTSC and PAL video formats
  • Video scaling to arbitrarily sized windows
  • Fully scalable JPEG compression
  • Simultaneous transfer of compressed and uncompressed video
  • 64 MB SDRAM Frame Buffer for reliable image transfer
  • On-board FLASH memory for calibration settings configuration, or web interface
  • Composite video output
  • General purpose I/O triggers
  • Dual UART serial communications
  • Optional nVision I/O carrier board for easy access to all video, communications, and trigger I/O
  • nVision API supports Texas Instruments Code Composer Studio for embedded application development.
  • Specifications

    Network

  • Ethernet 10/100Base-T
  • Video Input and Digitization

  • RGB/YPrPb, S-Video, and Composite video inputs
  • High-quality 10-bit digitization
  • NTSC (J, M, 4.43), PAL (B, D, G, H, I, M, N, Nc, 60), and SECAM (B, D, G, K, K1, L) support
  • Color or monochrome camera support
  • Square pixel and ITU.BT.601 resolution support
  • Software programmable control of gain, offset, hue, saturation, and sharpness
  • 64 MB Flash memory for storing configuration and calibration settings
  • Video Acquisition

  • Real-time, full-resolution video acquisition channel
  • Fully scalable JPEG compression
  • Simultaneous viewing and transfer of compressed or uncompressed video
  • Fully independent configuration of frame rate, resolution, and compression parameters
  • 64 MB SDRAM frame buffer for reliable transfer
  • Smooth video scaling to randomly-sized windows
  • Hardware overlay of graphics over video
  • RGB 32/24/16/15/8 and YUV 4:2:2 pixel formats
  • Video Output

  • Composite video output with OSD
  • NTSC or PAL format
  • I/O Control

  • General-purpose I/O triggers
  • Triggers programmable as input or output
  • Dual UART serial interface
  • Physical and Environmental

  • 3.432" (length) x 3.432" (width)
  • YFS 200-pin connector
  • Optional nVision I/O Carrier board - 4 BNC, 2 x DB-9 male, RJ-45 Ethernet socket, and 2.5 mm power plug
  • Operating temperature: 0° C to 70° C
  • Relative humidity: 5% up to 95% non-condensing
  • Ordering Information

  • nVision: 10503-001
  • nVision (Square Pixel Output):10503-002
  • nVision I/O Carrier Board: 99503
  • nVision Developers Kit: 90012
  • dVeloper Foundation SDK for nVision: 90011
