dPict 10022-001 Aexeon Quattro 64MB PCIe BNC Frame Grabber

Product was successfully added to your shopping cart.

dPict 10022-001 Aexeon Quattro 64MB PCIe BNC Frame Grabber

Quick Overview

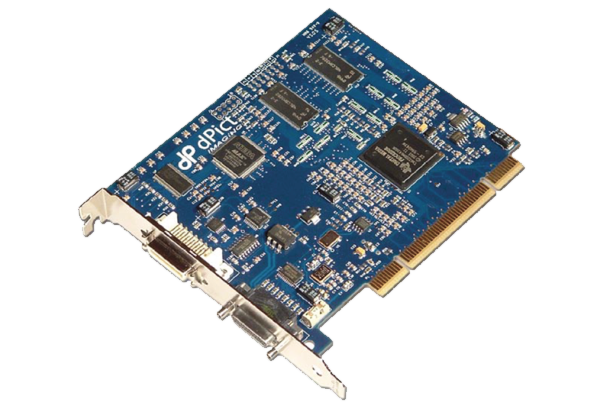

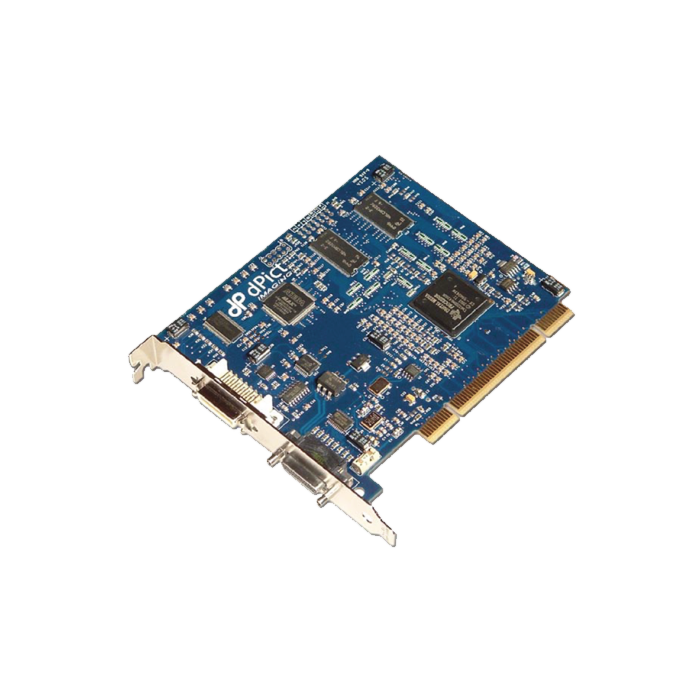

64MB PCIe video acquisition frame grabber

Add to Compare

Overview

Aexeon Quattro is a low-cost, real-time video acquisition and compression board for applications where multiple video streams are needed. Available in either PCI or PCI Express formats, Aexeon Quattro incorporates a digital media processor and on-board frame buffer for reliable capture for the most demanding application. Aexeon Quattro contains four independent full-resolution video channels capable of simultaneous streaming of real-time video to system memory or display. Aexeon Quattro also comes equipped with all the necessary I/O control to make application development easy.

Features:

PCI or PCI Express formats

Bus-mastering video acquisition

Simultaneous viewing and acquisition of four real-time video streams

120 frames/sec viewing and capture

Simultaneous real-time transfer of video to system memory, overlay, or display memory

On-board JPEG compression

TI DM642 Digital Media Processor

32 MB SDRAM Frame Buffer

Smooth interpolated video scaling to arbitrarily sized windows

Real-time multi-picture video output with OSD

CCIR and square pixel capture resolution

NTSC and PAL video formats

Multiple board installation support

Area of interest transfers to/from system and on-board memory

On-board micro-controller for robust timing and capture control

RS-232 serial input and output

8 General purpose I/O triggers

4 relay output alarms

On-board watchdog timer

On-board motion detection

Real-time image processing

Windows® 2000, and XP drivers

Windows®-based video capture application

DirectShow and TWAIN support

Optional SDK with sample applications

Specifications

Form Factor	• PCI or PCI Express form factor • Scatter gather DMA support • PCI 2.2 compliant, 5V and 3,3V universal slot • PCI Express x1 connector
Video Input and Digitization	• 4 composite video inputs • NTSC (J, M, 4.43), PAL (B, D, G, H, I, M, N, Nc, 60), and SECAM (B, D, G, K, K1, L) support • Simultaneous color or monochrome support • Square pixel and ITU-601 resolution support • Software programmable control of gain, offset, hue, saturation, and sharpness • EEPROM for storing confi
Video Acquisition	• 4 real-time, full-resolution video acquisition channels • 120 frames/sec viewing and capture • Simultaneous viewing and transfer of 4 video inputs • Fully independent confi guration of frame rate, resolution, and compression parameters per channel • Smooth interpolated video scaling to randomly-sized windows • Bus-mastering video transfers to system memory, overlay, or display memory simultaneously. • Hardware overlay of graphics over video • RGB 32/24/16/15/8 and YUV 4:2:2 pixel formats • Area of interest transfers to on-board and system memory • 32 MB SDRAM frame buffer • Extensive interrupt control for robust capture
Video Output	• Composite video output with OSD • NTSC or PAL format • Real-time multi-picture (2x2) video output
I/O Triggers	• 8 programmable general-purpose I/O triggers • 4 solid-state relay output alarms
I/O Control and Processing	• On-board microcontroller for reliable capture and control • RS-232 serial interface • On-board watchdog timer • On-board motion or activity detection
Physical and Environmental	• 6.00" (length) x 4.20" (height) • Operating temperature: 0° C to 55° C • Relative humidity: 5% up to 95% non-condensing • FCC and CE approved
Available Software Developers Kit	• Compatible with dVeloper SDK • Windows® 2000 and XP DLLs • DirectDraw and DirectShow support • TWAIN support • Extensive documentation and sample code • dPiction Windows-based capture application • Sample applications with source code
