CyberOptics Imagenation PXD1000 Digital Frame Grabber

Quick Overview

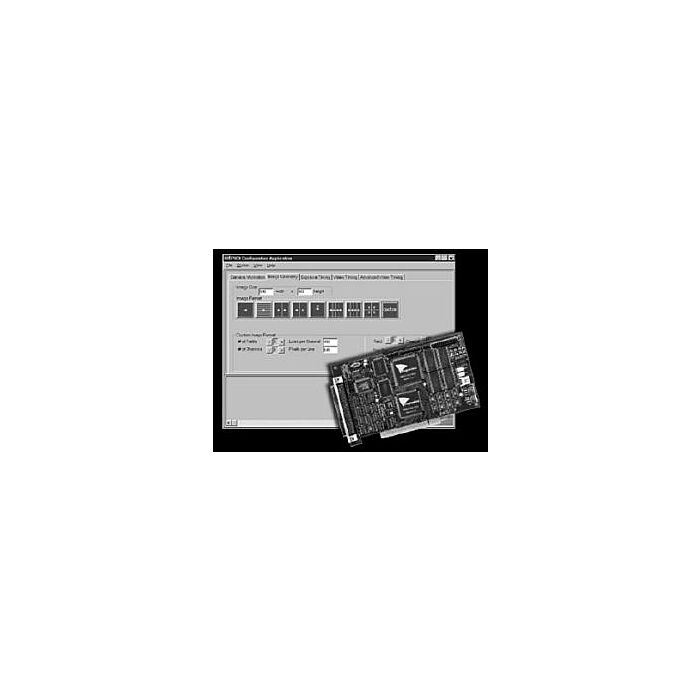

Everything you need to get up and running fast. Imagenation’s PXD1000 is the perfect entree to the ultra-precise but often complex world of digital video capture. Its performance rivals that of costlier digital PCI frame grabbers, while maintaining exceptional ease of use—just connect the PXD1000, install the software and you’re ready to grab images. A camera configuration application is even included, allowing you to conveniently add or reconfigure cameras, along with demo programs and optional cables.
Overview

Features:

  • Image capture area ­ up to 32K x 32K pixels
  • Line scan camera image capture up to 32K in width
  • Programmable frequency synthesizer allows flexible synchronization
  • On-board memory 4MB image FIFO
  • Programmable debounced trigger
  • Programmable horizontal and vertical synchronization
  • Works with resettable and interlaced cameras
  • Strobe output Two strobes, programmable pulse-width and polarity can be used as camera exposure controls; TTL and RS422
  • General purpose I/O (TTL) Four, two-in and two-out
  • General purpose RS422 outputs ­ Three, for camera control
  • Input look up tables (LUTs) 4x8:8 or 2x16:16, facilitates on-the-fly gamma correction, contrast, brightness, etc.
  • On-the-fly hardware pixel reordering for multi-channel cameras Two channel cameras: alternate pixels, alternate lines, alternate half-lines with normal/reverse scan; four channel cameras: alternate 1 / 4 lines with normal/reverse scan and quadrants with normal and reversed scans
  • Software image cropping Select region of interest, provides lower bandwidth
  • Optional interface cable Supplied for popular cameras
  • Optional cable kit Unsoldered connections on one end for other cameras
  • User connector Facilitates easy interface of strobes and triggers to external equipment
  • Camera configuration application Easy-to-use window for entering data for specific camera configuration. Available for Win 95 / 98 / ME / NT / 2000 only
  • Optional software protection
  • FCC(A) and CE approved
Specifications
Input signal RS422 (up to 30 MHz per channel);
EIA-644 (LVDS) (up to 40 MHz per channel)
Camera output Single channel: up to 32 bits/pixel and pixel rates to 40M pixels/sec for EIA-644 (LVDS) signals;
Dual channel: up to 16 bits/pixel and up to 80M pixel/sec rates;
Four channel camera at 8 bits/pixel and up to 160M pixels/sec rates
Camera connector Single connector has 100 pins
Camera power + 12V out at 800 mA and + 5V at 800 mA, available on user connector and camera connector
Supported Operating systems Watcom DOS4GW, Win 95 / 98 / ME, Win NT / 2000
Supported Languages C / C++, Visual Basic
