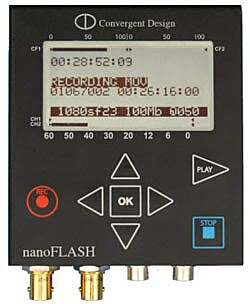

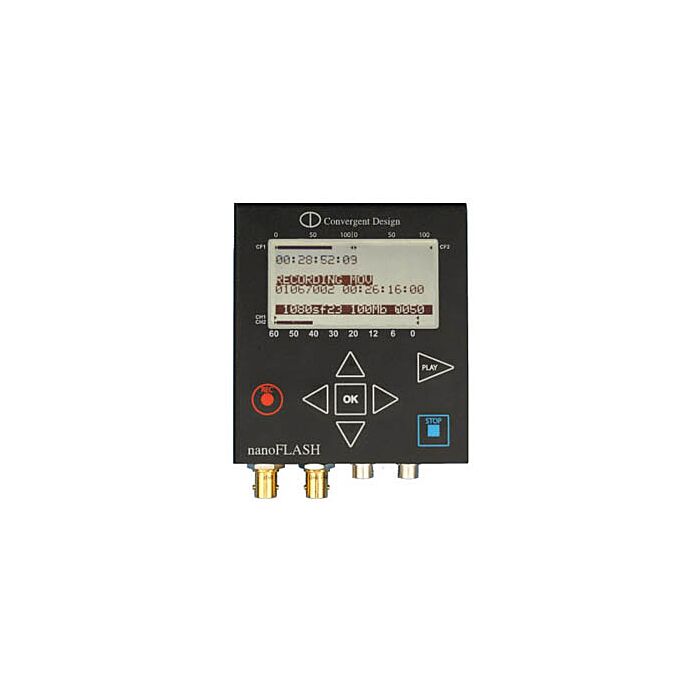

Convergent Design nanoFlash HD/SD-SDI / HDMI Recorder/Player

Quick Overview

The World's Smallest High Quality HD/SD-SDI / HDMI Recorder/Player.
The World's Smallest High Quality HD/SD-SDI / HDMI Recorder/Player
The most versatile Recorder/Player in the world in terms of bit-rates, recording options and formats. By adding the nanoFlash, one can may meet the acquisition requirements, 50 Mbps, for many networks.

The nanoFlash is a state-of-the-art miniature CompactFlash HD/SD SDI and HDMI Recorder/Player.
Extremely Low-Noise Images - Master Quality Modes are Visually Indistinguishable from Uncompressed
All Solid-State - Rugged - No Moving Parts
No Fans - No Noise - Field Proven

Improves the image quality of most cameras as the HD/SD-SDI and HDMI outputs are before the compression stages. Many cameras only record highly compressed 4:2:0 while outputing 4:2:2 over HD-SDI or HDMI. The nanoFlash uses these high-quality uncompressed 4:2:2 images to produce higher quality recordings.

The nanoFlash offers a dramatically better image, free from motion artifacts and other image problems, such as mosquito noise. Typically the nanoFlash offers a better image, even from many high-end cameras.

  • Wide Range of Frame Rates.
  • Supports HD-SDI, SD-SDI and HDMI inputs.
  • Works with most any camera with HD/SD-SDI or HDMI outputs.
  • HD/SD-SDI and HDMI outputs active simultaneously.
  • Long, Uninterrupted Recording Times.
  • Supports Timecode and Audio embedded in HD/SD-SDI.
  • Supports Audio embedded in HDMI.
  • Supports Analog Audio, 24-Bit/48K, with up to 44 dB of gain via 3.5 mm audio input, compatible with tape-out signals.
  • One Channel balanced audio consumer line level / mic, or Two Channel unbalanced audio consumer line level / mic.
  • All audio recorded at 24-Bit/48K Uncompressed.
  • Headphone / Consumer line-level outputs.
  • 2 CompactFlash card slots - Records seamlessly from one card to the next.
  • The image quality produced by the nanoFlash is exactly the same as the Flash XDR.
  • Specifications

    Camera Compatibility


    FCB-H11 (W HDSDI option), BRC-H700, BRC-Z700, EVID70, EVI-HD1, EVI-HD3V, EVI-HD7V






    Wide Range of Bit-Rates  4:2:2 Long-GOP from 50 to 180 Mbps Long-GOP
    4:2:2 I-Frame Only from 100 to 280 Mbps
    4:2:0 Long-GOP from 18 to 35 Mbps
    SD 5/6/7/8/9 Mbps
    Records in Native Quicktime for Final Cut Pro
    Native MXF for Avid, Sony Vegas, Edius, others
    MPG Format in SD for quick same day creation of DVD's
    MPG Format in HD - Realtime Rendering of Blu-Ray disks
    No Mandatory Transcoding - Drag and Drop Editing
    Size 4 7/8" high, 3 3/4" wide, 1 3/8" thick
    Very Low Power 5.6 Watts maximum, 0.2 watts standby
    Camera Mountable 0.85 Pounds - 1/4" x 20 Tripod Thread
    Wide Voltage Range 6.5 to 19.5 Volts DC - Uses most any battery type - International AC Power Supply included
