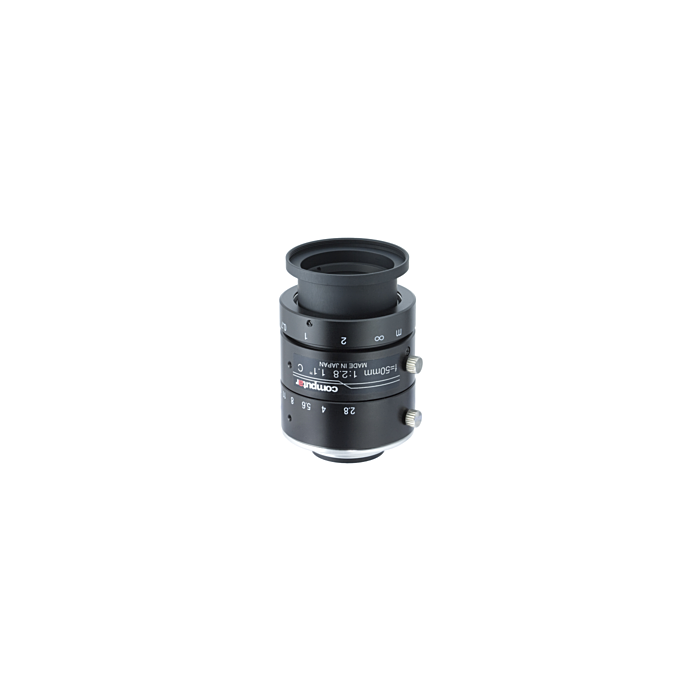

  • Computar V5028-MPY Image # 1

CBC-Computar V5028-MPY 50mm Fixed Lens (C-Mount)

Quick Overview

The Computar MPY, fixed focal length lens series provide excellent image sharpness with very low distortion.
Overview

The MPY Series supports 1.1” sensor format at 12 Megapixel resolution in a C-mount lens. The MPY Series combines high performance optics with a variety of common focal lengths for maximum application flexibility. The V5028-MPY is the perfect lens when the application calls for a 50mm focal length, operational ranges of F2.8 ‐ F16.0 (iris) and 0.5m ‐ Inf (focus).

Features:

  • 50mm Fixed Lens
  • 12 Megapixel
  • C Mount
  • Smallest 1.1” format lens for > 10MP Lens in the industry
  • F 2.8
  • 3.45µm pixel size
  • Image circle Ø17
  • Also Available in 8, 12, 16, 25 and 35mm focal lengths

  • Applications:

  • Machine Vision
  • ITS Applications
  • Specifications
    Focal Length 50mm
    Max. Apeture Ratio 1:2.8
    Max. Image Format 14.2mm x 10.4mm(φ 17.6mm)
    Operation Range Iris: F2.8 - F16.0
    Focus: 0.5m - Inf.
    Control Iris: Manual
    Focus: Manual
    Object Dimension at M.O.D. 115.9 (H) mm x 84.8 (V) mm 1.1"
    Angle of View          D: 20.0°         D: 18.2°           D: 12.6°
    1.1"  H: 16.2°   1"  H: 14.6°  2/3"  H: 10.1°
            V: 11.9°          V: 11.0°           V: 7.6°
    Operating Temperature -10°C - +50°C
    Distortion 1.1" 0.1% (y=8.8)  1" 0.1% (y=8.0)  2/3" 0.1% (y=5.5)
    Back Focal Length 11.9mm
    Flange Back Length  17.526mm
    Mount C-Mount
    Filter Size M34.0 P=0.5mm
    Dimensions φ 39.5mm x 45.1mm
    Weight 107 g



    MPY Series

    Computar V5028-MPY
