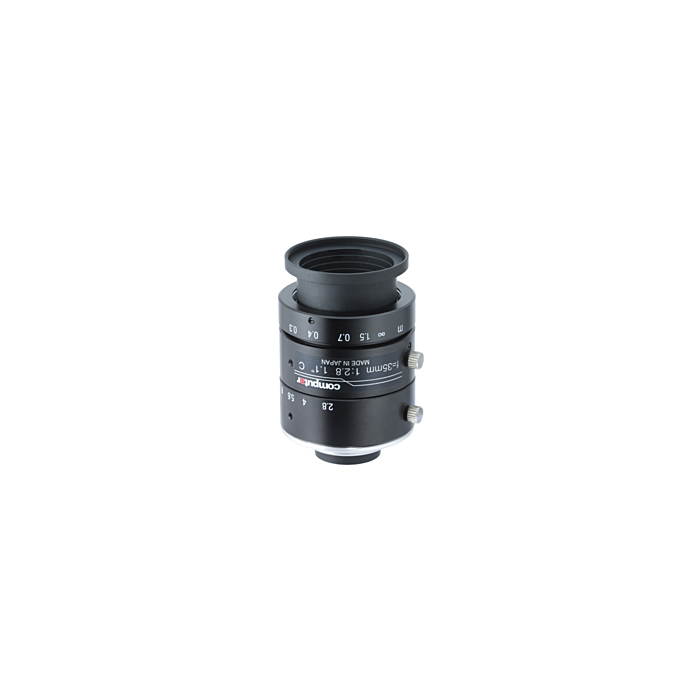

CBC-Computar V3528-MPY (V3528MPY) 35mm Fixed Lens (C-Mount)

Computar's V3528-MPY is a 1.1" 35mm f/2.8 12MP Ultra Low Distortion Lens designed for use in a variety of applications.
SKU
V3528-MPY

The MPY Series supports 1.1” sensor format at 12 Megapixel resolution in a C-mount lens. The MPY Series combines high performance optics with a variety of common focal lengths for maximum application flexibility. The Computar V3528-MPY is a powerhouse equipped with 35mm focal length and weighing 103.0 grams. The V3528-MPY packs a lot of technology into a small package.

Features:

  • 35mm Fixed Lens
  • 12 Megapixel
  • C Mount
  • Smallest 1.1” format lens for > 10MP Lens in the industry
  • F 2.8
  • 3.45µm pixel size
  • Image circle Ø17
  • Also Available in 8, 12, 16, 25 and 50mm focal lengths

  • Applications:

  • Machine Vision
  • ITS Applications
  • Focal Length 35mm
    Max. Apeture Ratio 1:2.8
    Max. Image Format 14.2mm x 10.4mm(φ 17.6mm)
    Operation Range Iris: F2.8 - F16.0
    Focus: 0.3m - Inf.
    Control Iris: Manual
    Focus: Manual
    Object Dimension at M.O.D. 109.3 (H) mm x 80.1 (V) mm 1.1"
    Angle of View          D: 28.2°         D: 25.8°           D: 17.9°
    1.1"  H: 22.9°   1"  H: 20.7°  2/3"  H: 14.3°
            V: 16.9°          V: 15.6°           V: 10.8°
    Operating Temperature -10°C - +50°C
    Distortion 1.1" -0.1%(y=8.8)  1" 0.0%(y=8.0)  2/3" 0.0%(y=5.5)
    Back Focal Length 11.7mm
    Flange Back Length  17.526mm
    Mount C-Mount
    Filter Size M34.0 P=0.5mm
    Dimensions φ 39.5mm x 45.1mm
    Weight 103 g



    MPY Series
