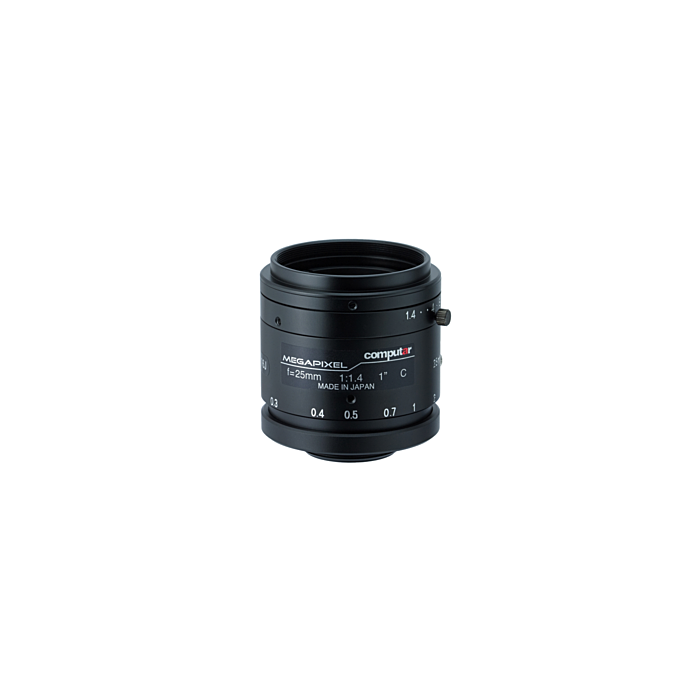

  • Computar V2514-MP Image # 1

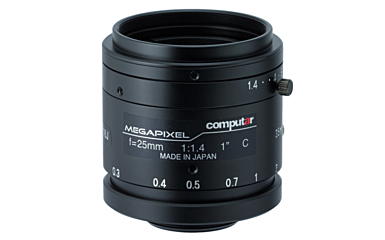

CBC-Computar V2514-MP 25mm Fixed Lens (C-Mount)

Quick Overview

COMPUTAR V2514-MP 1" 25MM F1.4 Manual Iris, Ultra Low Distortion, 2 MP
Overview

The Computar V2514-MP C-Mount lens with a focal length of 25 mm is characterized by its very small and compact design.


Features:

  • 25mm Fixed Lens
  • 2 Megapixel
  • C Mount
  • 1” format lens
  • F 1.4

  • Applications:

  • Factory Automation
  • Machine Vision
  • Security
  • Specifications
    Focal Length 25mm
    Max. Apeture Ratio 1:1.4
    Max. Image Format 12.8mm x 9.6mm (φ 16mm)
    Operation Range Iris: F1.4 - F16.0
    Focus: 0.3m - Inf.
    Control Iris: Manual
    Focus: Manual
    Object Dimension at M.O.D. 1" Type: 119.2 x 160.9 mm
    2/3" Type: 81.3 x 109.1mm
    Angle of View          D: 36.57°             D: 25.18°
    1"    H: 29.29°     2/3"  H: 20.15°
            V: 21.98°              V: 15.12°
    Operating Temperature -10°C - +45°C
    Effective Lens Aperture Front: φ21.0mm
    Rear: φ19.4mm
    Distortion 1 type: -3.51%(y=8.0)
    2/3 type: -1.66%(y=5.5)
    Back Focal Length 15.71mm
    Flange Back Length  17.526mm
    Mount C-Mount
    Filter Size M35.5 P=0.5mm
    Dimensions φ 43mm x 43mm
    Weight TBA



    No Video available

    Computar V2514-MP Spec Sheet

    Computar V2514-MP
